Description

Overview

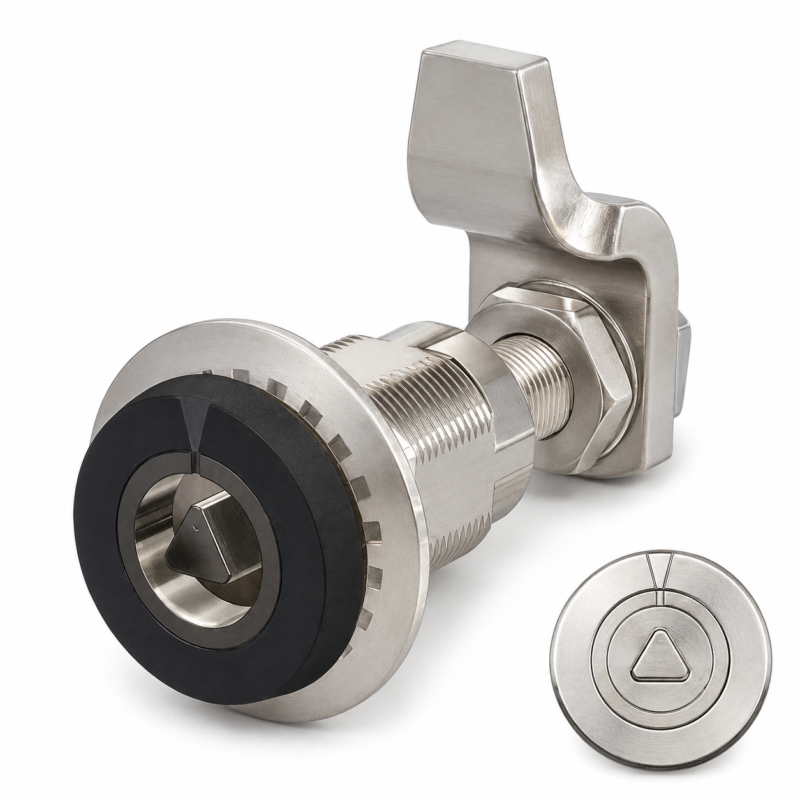

The stainless steel tubular compression latch secures toolbox, compartment and access-panel doors with a 7mm triangular driver. Its compression action draws the cam firmly against the frame, while three included cams provide a combined grip range from 12mm to 81mm.

Features

• Stainless steel construction for exposed applications
• 7mm triangular tool-operated driver
• Includes three cams covering a 12-81mm grip range
• 6.5mm compression travel helps control door and seal pressure

Specifications and Materials

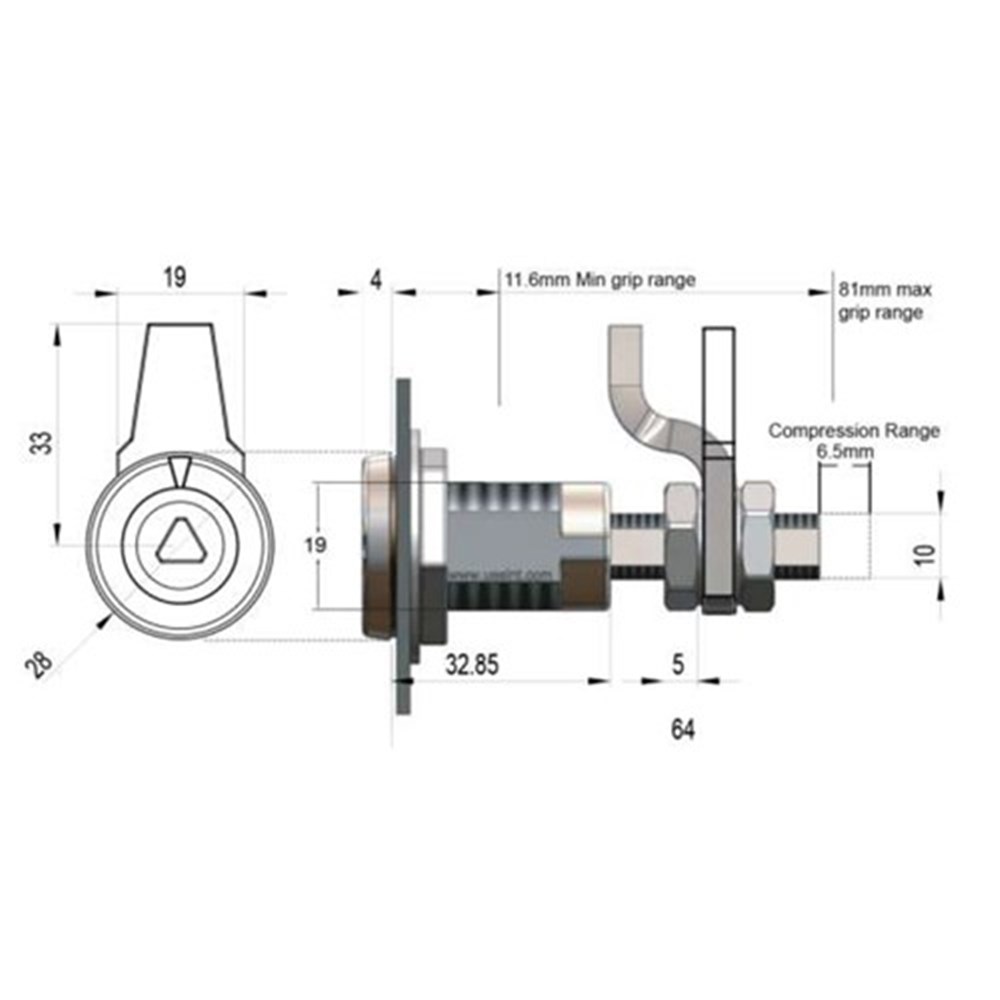

The latch has a 28mm diameter head, an overall length of 64mm and a 7mm triangular driver. Three cams are included, while the matching operating key is sold separately.

Part number: CLT7TSS.

See the manufacturer compression latch guidance

Compatibility and Fitment

Match the 7mm triangular driver, 28mm head diameter, mounting opening, cam position and required closed-door grip before ordering. The most likely mismatch is confusing this latch with a 7mm square, 8mm hexagonal or black zinc alloy version that has a similar tubular body.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. E3L1SS7T

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Secure the mounting nut and selected cam so vibration cannot loosen the assembly. Close the door slowly during initial adjustment and confirm the cam clears the frame before rotation, then applies enough compression to hold the panel without crushing the seal or distorting the door.

Trailer Applications

Workshops fit this stainless steel compression latch to trailer toolboxes, service compartments, 4WD canopies, utility bodies, equipment cabinets and access panels that need a compact tool-operated closure with adjustable cam reach.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

These latches can look almost identical despite using different triangle, square and hexagonal drivers. The driver shape, head diameter, mounting opening and cam reach all need to suit the existing door. ICS Trailers can compare photos, panel measurements and the old latch markings before ordering. The three supplied cams also give flexibility when replacing hardware across toolbox, canopy and trailer compartment doors with different frame depths.
