Description

Overview

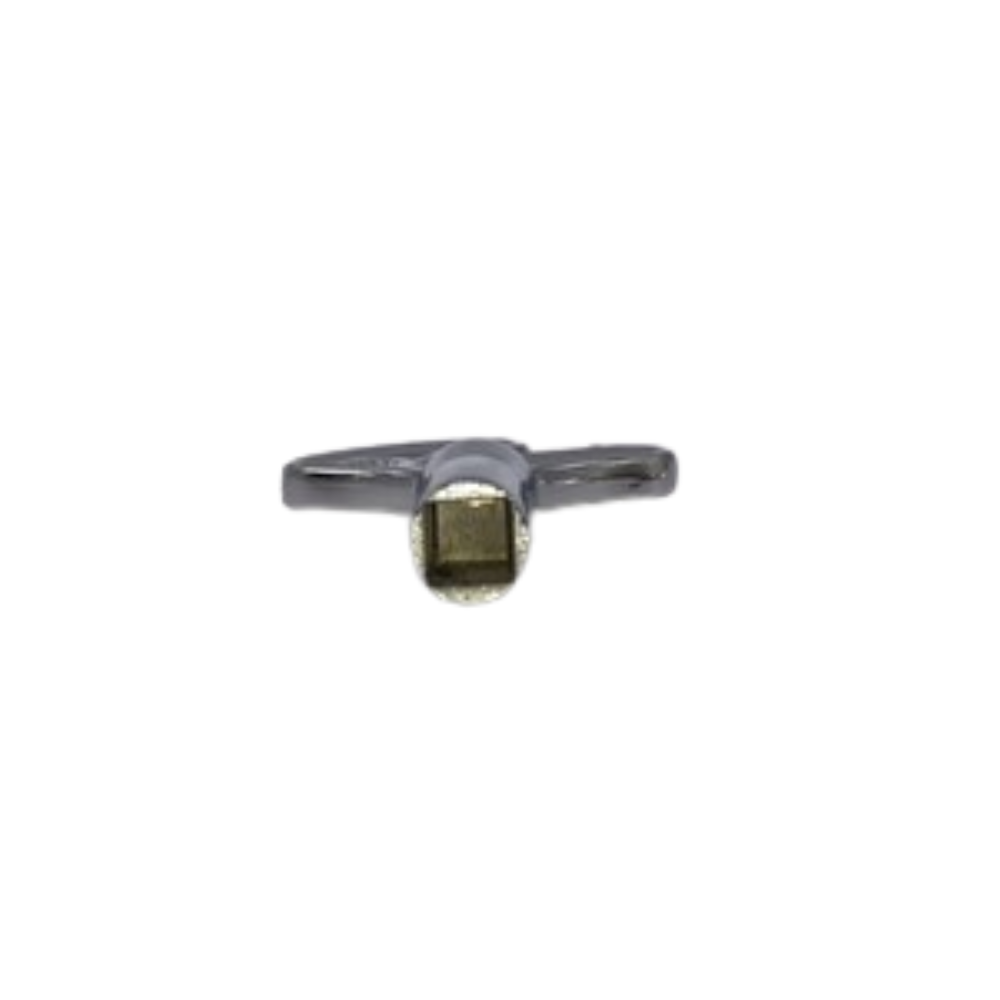

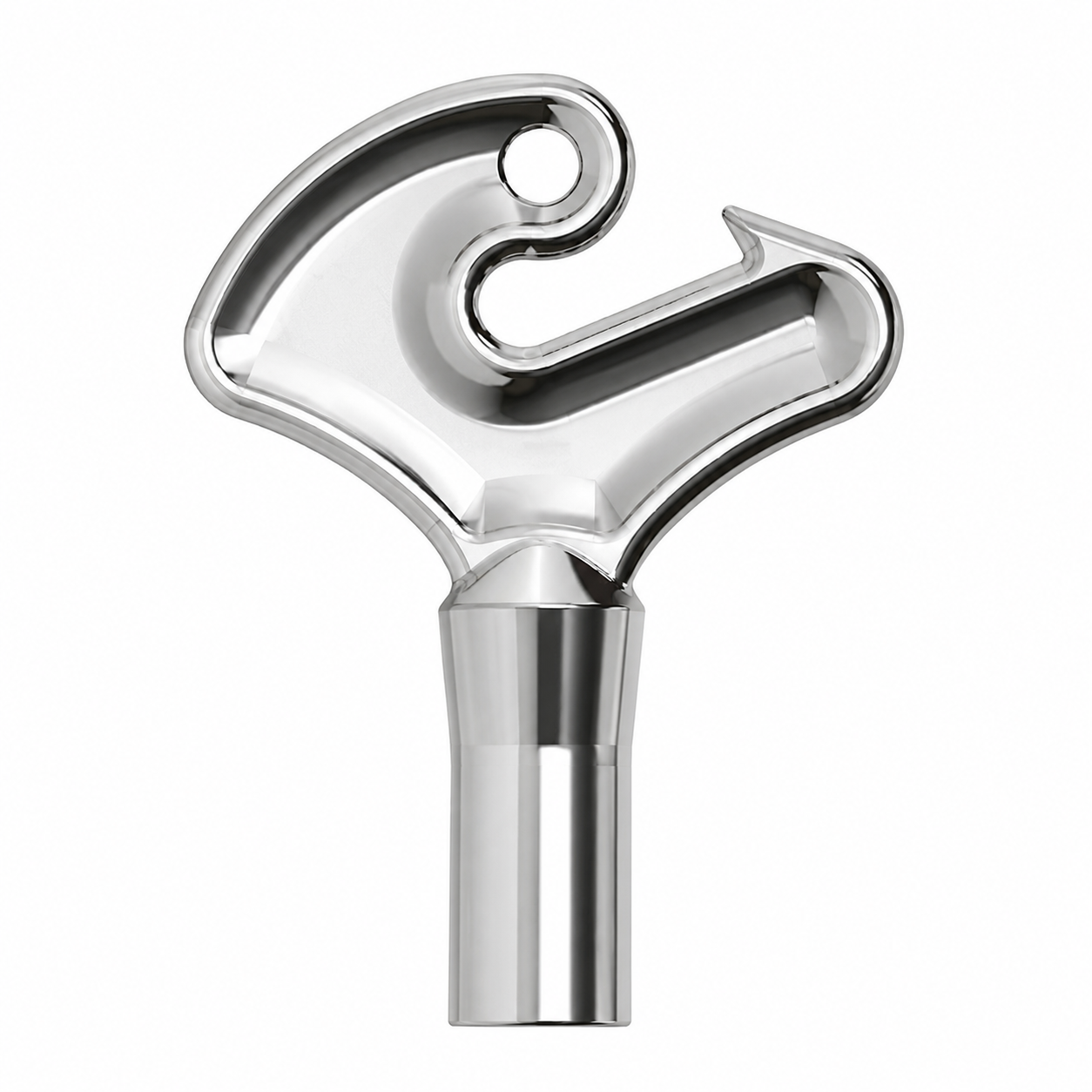

The 8mm square compression latch key operates matching tool-driven latches on trailer compartments, toolboxes, canopies and equipment enclosures. Its die-cast zinc alloy body and chrome plated finish provide a compact service key for doors fitted with an 8mm square latch recess.

Features

• Female 8mm square driver
• Die-cast zinc alloy construction
• Chrome plated finish
• Shaped handle provides grip when turning the latch

Specifications and Materials

Product type: compression latch operating key. Driver type: female 8mm square. Material: die-cast zinc alloy. Finish: chrome plated.

Part number: CLT8S.

See the manufacturer compression latch guide

Compatibility and Fitment

Confirm the latch has an 8mm square recess before ordering. Similar keys are available for 7mm square, 7mm triangular, 8mm hexagonal, double-bit and round drivers, and these shapes are not interchangeable. Fully seat the key in the driver before turning it.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. E3K8S

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Push the key fully into the square recess before applying torque. Stop if the driver binds or the key begins to twist, as this may indicate the wrong key profile, a damaged latch insert or excessive compression at the cam. Replace keys with rounded or visibly damaged drive edges.

Trailer Applications

Drivers, fleet operators and workshops use this key to access trailer toolboxes, canopy compartments, service panels, utility bodies and equipment enclosures secured by matching 8mm square compression latches.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Square latch keys can be difficult to identify because 7mm and 8mm drivers look similar until measured, while an 8mm hexagonal insert may also be mistaken for a square recess. ICS Trailers can compare a clear photo of the latch face and measurements from the existing driver. Keep a spare key with the vehicle or workshop service kit so compartment access is not delayed when the original is misplaced.
