Description

Overview

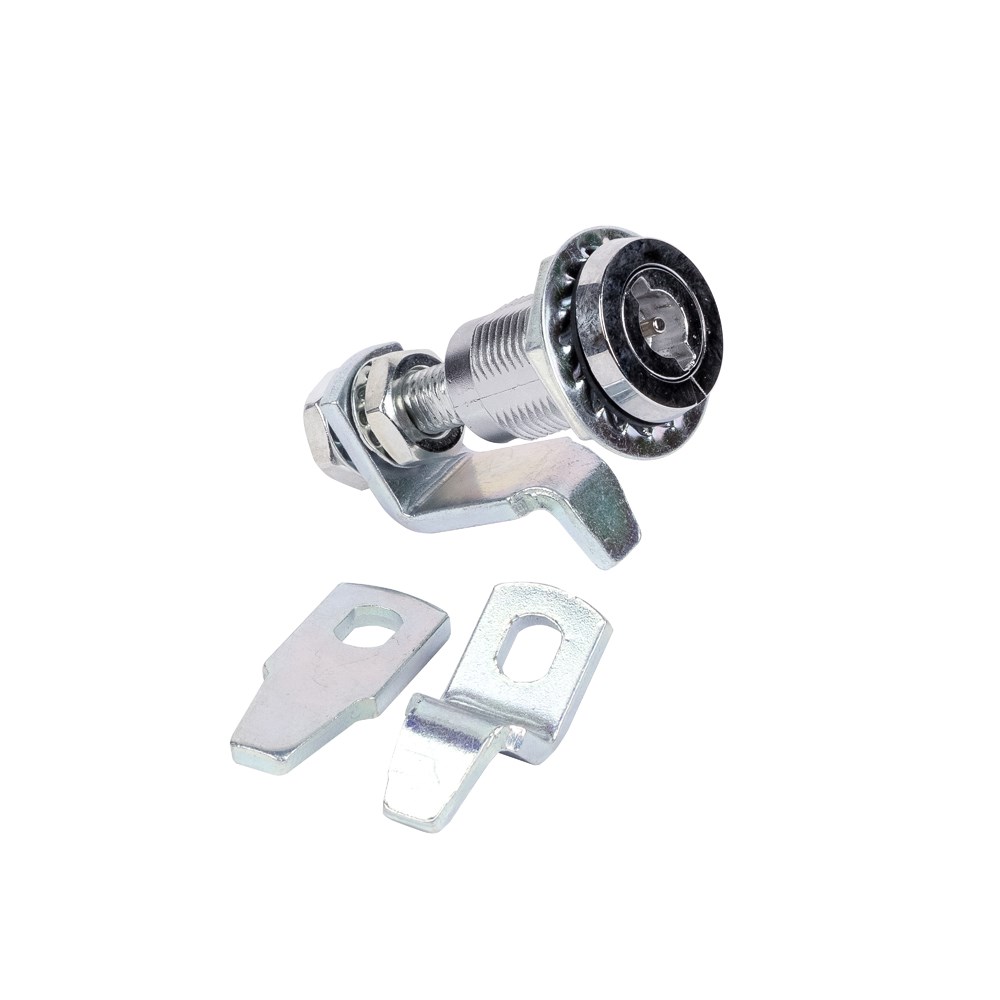

The 3mm double bit compression latch secures trailer toolbox, compartment and access-panel doors with a tool-operated compression action. Its chrome plated body has a compact 28mm head, while three included cams allow the latch to suit different frame depths.

Features

• 3mm double bit driver for tool-operated access
• Includes three cams covering a combined 12-81mm grip range
• 6.5mm compression travel draws the door against the frame
• Die-cast zinc alloy body with chrome plated finish

Specifications and Materials

The tubular latch measures 64mm long with a 28mm diameter head and 33mm overall head height. It includes three cams, while the matching 3mm double bit operating key is sold separately.

Part number: CLT3DCP.

See manufacturer compression latch guidance

Compatibility and Fitment

Match the 3mm double bit driver, 28mm head, mounting opening, cam reach and required closed-door grip before ordering. The main mismatch risk is selecting a square, triangular, hexagonal or slotted driver that has a similar tubular body.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. E3L1CP3P

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Secure the mounting nut and selected cam so vibration cannot loosen the assembly. During adjustment, confirm the cam clears the frame before rotating and applies enough compression to hold the door without crushing the seal or distorting the panel.

Trailer Applications

Workshops fit this chrome compression latch to trailer toolboxes, service compartments, 4WD canopies, utility bodies, equipment cabinets and access panels that require compact tool-operated closure hardware.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Double bit, square, triangular and hexagonal compression latches can look nearly identical once installed. The driver profile, head diameter, mounting opening and cam reach must all suit the existing door. ICS Trailers can compare photos, old markings and panel measurements when the original latch is damaged or missing. Add the matching operating key when the vehicle or toolbox does not already carry a 3mm double bit key.
