Description

Overview

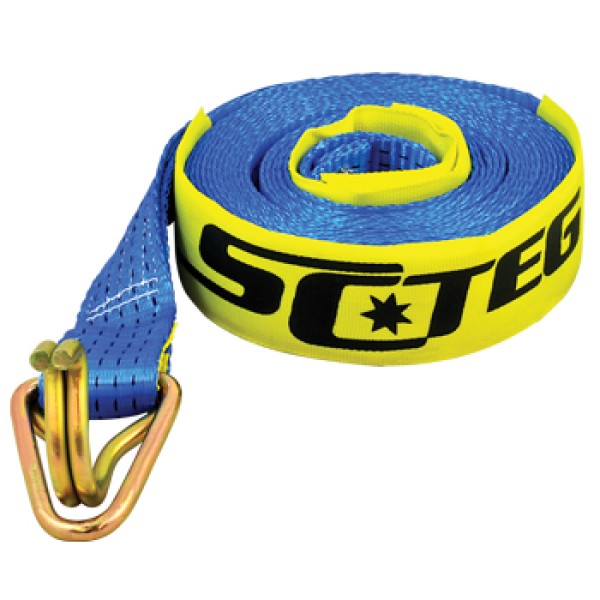

Load Restraint Replacement Strap 50mm x 11m 2500kg is a practical way to renew a worn strap tail on a load restraint setup without replacing the whole system. It suits common 50mm winches and restraint hardware used on trailers, so you can keep your tie downs consistent across different loads. Because the strap includes the hook, keeper and wear protection, you can swap it in and get back to work with less downtime.

Features

Load Restraint Replacement Strap 50mm x 11m 2500kg suits day to day transport restraint when you want consistent 50mm gear and a simple replacement strap tail.

• 50mm wide webbing and 11m strap length for general freight restraint
• 2500kg lashing capacity for standard load restraint applications
• Supplied with hook and keeper plus two wear sleeves for high-wear points

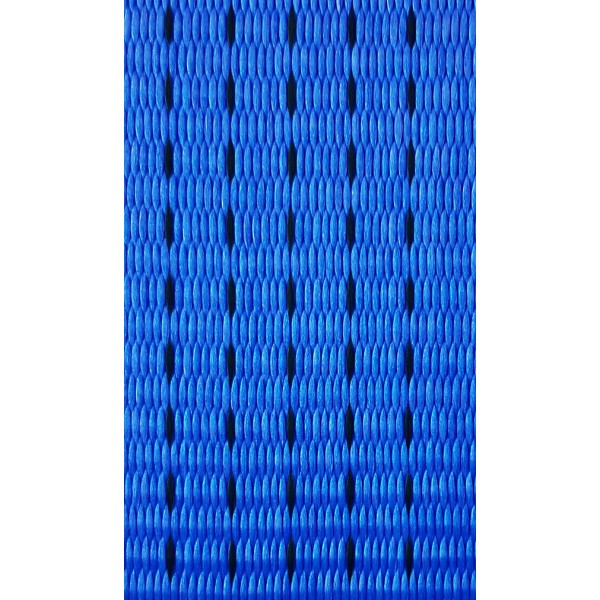

• Nylon and polyester webbing construction to handle demanding transport use

Specifications and Materials

• Width: 50mm
• Length: 11m
• Capacity: 2500kg
• Includes: 2 wear sleeves, hook and keeper

See the National Transport Commission load restraint guide for general load restraint guidance in Australia.
Part number: CA4837.
Brand may vary depending on availability.

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 120.0011, 1200011, MLR0004, 41659-16, 4165916

Compliance and Safety

This strap tail is listed as compliant with AS/NZS 4380 for load restraint webbing and assemblies, so it suits on-road restraint work when you select and use it correctly. Even so, check the restraint method, anchor points and condition of all hardware before every trip, because damaged webbing or bent fittings can reduce performance. Also do not use load restraint straps for lifting.

Trailer Applications

Use Load Restraint Replacement Strap 50mm x 11m 2500kg on trailers and carriers where a 50mm winch or compatible restraint device takes a strap tail with a hook and keeper. For example, it can support flatbed and tautliner style load restraint where you tension and secure freight across a deck or into rated anchor points. If you work across mixed loads, keeping the same 50mm width can make setup faster and reduces confusion on site.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Confirm strap width, length and rating before ordering so the replacement matches your restraint gear.

Why Choose ICS Trailers

ICS Trailers supplies transport parts that suit real trailer and heavy vehicle work, so you can source the right restraint and hardware in one place. If you need help matching 50mm strap gear to your trailer setup, ask and we will point you to compatible parts.
