Structurflex Small Body Cranked Curtain Tensioner Right-Hand

Allan Davis on 20/08/2026

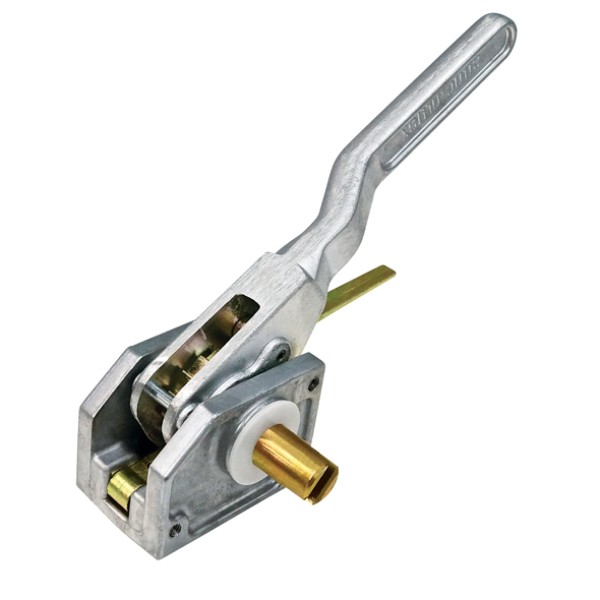

Structurflex small body right-hand curtain tensioner with cranked handle

Structurflex Small Body Cranked Curtain Tensioner Right-Hand

$248.00

Structurflex small-body cranked curtain tensioner for right-hand front or left-hand rear positions, with 3-bolt mounting and one-hand release.

Part number CV4004.

Quick Quote

SKU: CV4004 Category: Tags: , , , , , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The Structurflex small body curtain tensioner uses a cranked handle for right-hand front or left-hand rear curtain positions. Its handed configuration, compact body and three-bolt mounting are the main points to match before ordering.

Features

  • Small-body design with 100mm length, 75mm depth and 65mm height.
  • Cranked alloy handle retracts flush with the body when not in use.
  • Release trigger allows the shaft to disengage with one-hand operation.
  • Three-bolt mounting suits the Structurflex small-body tensioner configuration.

Specifications and Materials

Body size: 100 × 75 × 65mm.

Application: right-hand front or left-hand rear.

Construction includes an alloy housing and handle, high-tensile steel shaft, molybdenum disulphide impregnated nylon bush, and high-carbon steel sprocket and pawl.

Part number: CV4004.

See the Structurflex tensioner technical page

Compatibility and Fitment

Match the existing unit for small-body size, cranked handle, three-bolt mounting and handed position. The right-front and left-rear version is separate from the left-front and right-rear tensioner, so trailer position should be checked before installation.

Related Parts

Check the related service parts below against the curtain system before ordering.

Use Part number Part type
Opposite-hand version CV4003 Small body cranked handle curtain tensioner
Tensioner service 113100 Tensioner 3 repair kit
Replacement handle 113030 Tensioner 3 handle



Compliance and Safety

Keep clear of the curtain and pole while releasing stored tension. Before returning the trailer to service, check the trigger, pawl, handle, shaft and mounting fasteners for secure operation and confirm the tensioner releases without binding.

Trailer Applications

The Structurflex small body curtain tensioner suits curtain-sided truck and trailer bodies using the right-front or left-rear small-body mounting arrangement.

Why Choose ICS Trailers

Small-body tensioners can be confused with large-body, straight-handle or opposite-hand versions. If the old unit is damaged, send clear photos showing the handle shape, three mounting points and trailer position so ICS Trailers can help narrow the match.

  • Compare the 100 × 75 × 65mm body size and cranked handle before fitting.
  • Confirm the unit is being fitted at the right front or left rear.
