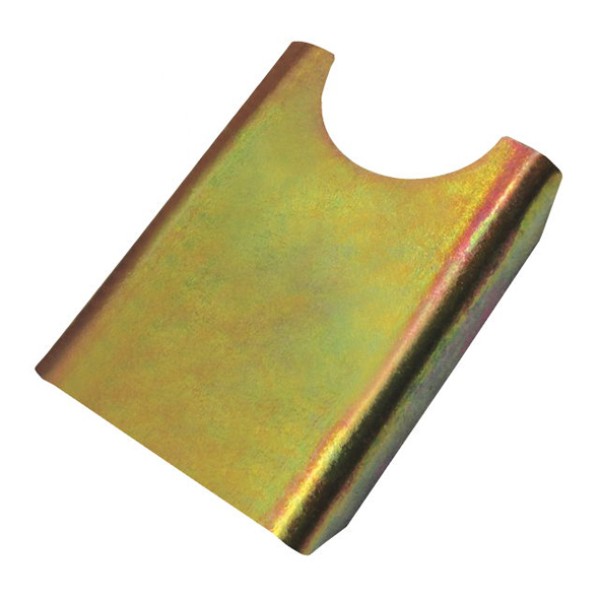

4″ Gate Pocket
4″ Gate Pocket
$6.70
4″ gate pocket for semi-trailer side-gate hardware suits 4″ RSJ applications and combines a zinc-plated and passivated finish with 70mm outside width, 62mm inside width, 19mm outside depth and 90mm overall height for accurate size matching.
Part number SG9477.
Description
Overview
The 4″ gate pocket forms part of semi-trailer side-gate hardware and suits 4″ RSJ applications. This 4″ version is the smaller pocket option in its family, so match the pocket size before ordering.
Features
- Suits 4″ RSJ applications.
- Zinc plated and passivated finish.
- Formed U-section pocket profile.
- Separate 5″ gate pocket variant for larger pocket requirements.
Specifications and Materials
Part number: SG9477.

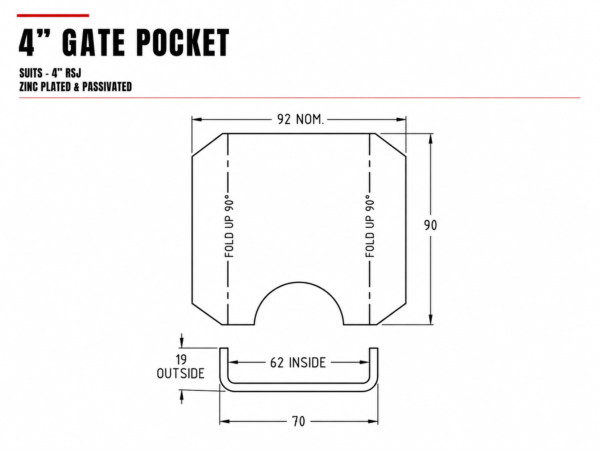

The finished profile measures 70mm outside width, 62mm inside width, 19mm outside depth and 90mm overall height.
See the ISO metallic coatings standards overview
Compatibility and Fitment
Match the 4″ pocket size, 4″ RSJ application and 62mm inside profile before ordering. The main mismatch risk is selecting the 5″ pocket variant instead of the required 4″ size.
Related Parts
Check the related service parts below against the trailer setup before ordering.
| Use | Part number | Part type |
|---|---|---|
| Related size | SG9470 | 5″ gate pocket |
| Related product | CV3017 | Clip-on coaming pocket extension |
| Related product | SG2116 | Banana catch for trailer side gates |
| Related product | SG2118 | Bolt-on chain catch, front |
| Related product | SG2119 | Bolt-on chain catch, rear |
Compliance and Safety
Inspect the formed pocket for distortion, wear or corrosion before fitting. Deformation can reduce the 62mm inside clearance and affect how the gate hardware sits.
Trailer Applications
Workshops use the 4″ gate pocket when repairing or rebuilding semi-trailer side-gate hardware around matching 4″ RSJ sections.
Why Choose ICS Trailers
Gate pockets can look similar, but this version needs the 4″ size and 62mm inside profile matched correctly. It also suits 4″ RSJ applications. If you are replacing an existing pocket, send ICS Trailers the old part photos and key measurements. We can then help narrow down the fit before you order.
- Compare the pocket opening and surrounding side-gate hardware during the repair.
- Check the 5″ variant separately if the existing pocket is larger.
