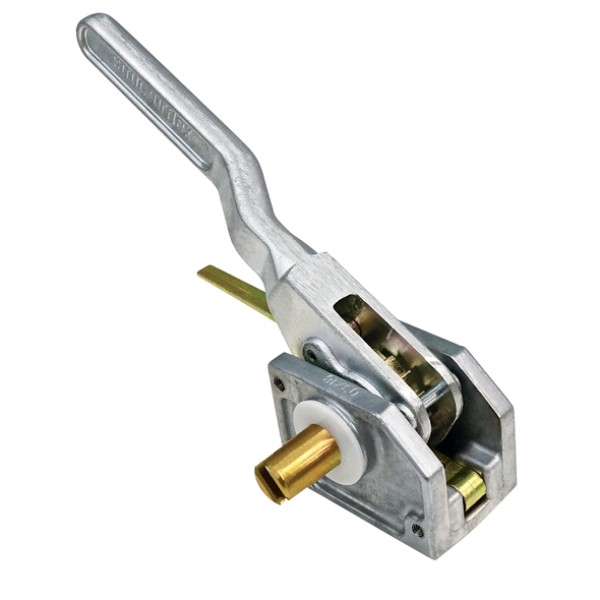

Structurflex small body cranked curtain tensioner left-hand

Structurflex Small Body Cranked Curtain Tensioner Left-Hand

$248.00

Genuine Structurflex small body cranked curtain tensioner for left-hand front or right-hand rear positions, with 3-bolt mounting and one-hand release.

Part number CV4003.

Quick Quote

SKU: CV4003 Category: Tags: , , , , , , , , , Brand:
This field is for validation purposes and should be left unchanged.

Description

Overview

The Structurflex small body curtain tensioner uses a cranked handle for left-hand front or right-hand rear curtain-side positions. Its compact body, one-hand release and handed ratchet action make orientation and handle style the main checks before ordering.

Features

  • Small-body configuration with cranked alloy handle.
  • Left-hand front or right-hand rear application.
  • Release trigger allows tension to be released with one hand.
  • Three-bolt small-body mounting configuration.

Specifications and Materials

Small-body dimensions: 100 × 75 × 65mm.

Construction includes an alloy housing and handle, high-tensile steel shaft, self-lubricating Nylatron bush, and high-carbon steel sprocket and pawl.

Part number: CV4003.

See the official Structurflex Tensioner technical page for manufacturer dimensions and component details

Compatibility and Fitment

Fit this handed version at the left front or right rear of the curtain body. Compare the existing tensioner for small-body size, cranked handle shape, three-bolt mounting pattern and ratchet direction before installation.

Related Parts

Check the related service parts below against the trailer setup before ordering.

Use Part number Part type
Opposite-hand version CV4004 Small body cranked handle right-hand curtain tensioner



Compliance and Safety

Stand clear of the curtain and pole when releasing stored tension. Check the trigger, pawl, handle, mounting fasteners and shaft for secure operation before returning the trailer to service.

Trailer Applications

The Structurflex small body curtain tensioner suits curtain-sided truck and trailer bodies using Structurflex tensioning hardware, including Flexisider curtain systems.

Why Choose ICS Trailers

Small-body tensioners can be confused with straight-handle, large-body or opposite-hand versions. If the old unit is damaged, send photos showing the handle, mounting holes and trailer position so ICS Trailers can help narrow the match.

  • Match the cranked handle and three-bolt body before fitting.
  • Confirm whether the unit sits at the left front or right rear.
