Description

Overview

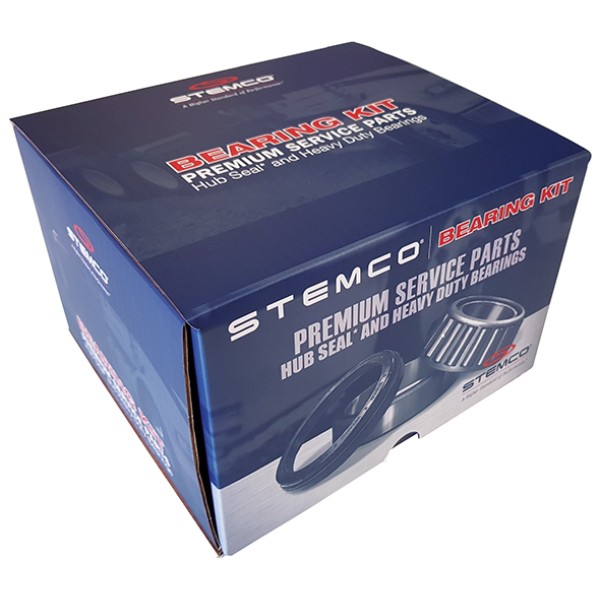

The standard steer axle bearing kit services an FG941 steer wheel end with the matched inner bearing, outer bearing and Voyager seal used in the bearing and sealing assembly. For servicing, it includes ASET049-011 / SET413 for the inner position, ASET3782-20 / SET406 for the outer position and the matching Voyager steer seal.

Features

• Complete bearing and seal combination for the FG941 standard steer arrangement.
• SET413 inner bearing uses the HM212049 cone and HM212011 cup.
• SET406 outer bearing uses the 3782 cone and 3720 cup.
• Includes the Voyager seal matched to this steer wheel-end configuration.

Specifications and Materials

Kit contents comprise ASET049-011 inner bearing set, ASET3782-20 outer bearing set and 383-0136 Voyager wheel seal. Together, the bearing sets use tapered roller cup-and-cone construction, with SET413 at the inner position and SET406 at the outer position.

Part number: KIT-102STM.

See the official STEMCO bearing removal and installation instructions

Compatibility and Fitment

Match this kit to an FG941 standard steer axle before ordering. Because similar steer wheel ends can use different bearing combinations, compare the old inner and outer bearing numbers rather than relying on axle appearance alone. If the seal marking is still readable, check that as a third identification point.

Related Parts

Check the related service parts below against the wheel-end setup before ordering.

Compliance and Safety

Before assembly, inspect the hub bearing bores, cup shoulders and spindle journals for scoring, burrs or wear. Then install the cups squarely with a suitable driver, lubricate the bearing cones correctly and complete wheel-bearing adjustment to the applicable service procedure.

Trailer Applications

The standard steer axle bearing kit suits FG941 front steer wheel ends using the SET413 inner and SET406 outer bearing combination with the matching Voyager seal.

Why Choose ICS Trailers

The strongest identification check is the combination of FG941 fitment, SET413 inner bearing and SET406 outer bearing. If the old wheel end has mixed or unreadable components, send through the bearing numbers, seal marking and axle details so ICS Trailers can help narrow down the required service combination.

• All matched bearing and sealing components come together in the kit instead of being selected separately.
• Also, the individual bearing and seal references make later replacement-component matching easier.
