BPW ECO Plus Hub Seal Carrier
BPW ECO Plus Hub Seal Carrier
$46.00
BPW ECO Plus hub seal carrier for selected 10/12 tonne trailer wheel ends, with a 96mm bore, 132mm maximum outside diameter and 22mm width, supporting the ECO Seal arrangement on compatible hubs during wheel-end servicing.
Part number AP4183G.
Description
Overview

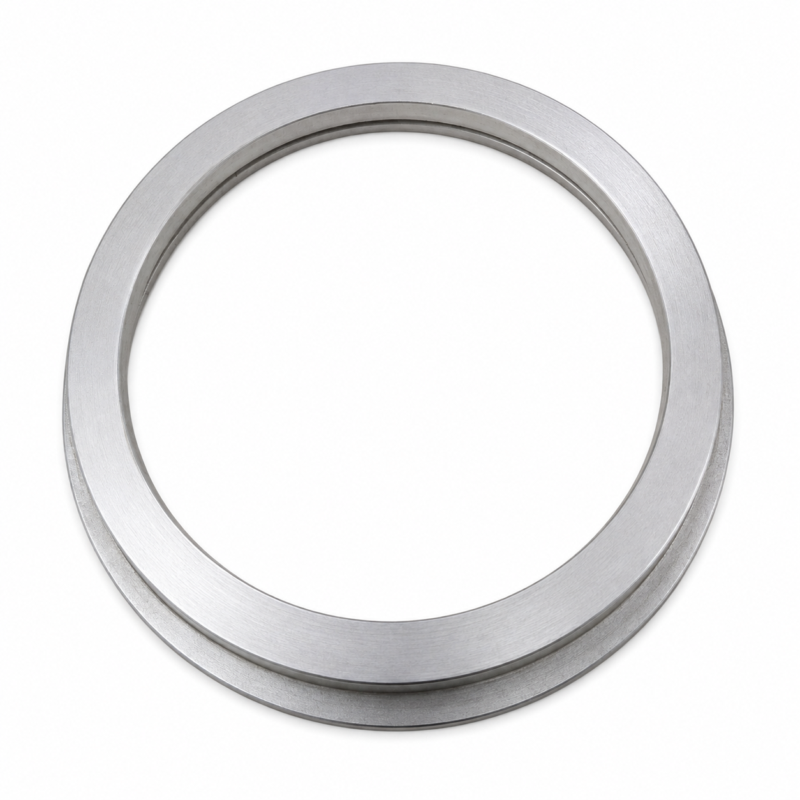

The BPW ECO Plus hub seal carrier forms part of the wheel-end sealing arrangement on compatible BPW ECO Plus trailer hubs. The steel ring supports the ECO Seal area and suits selected heavy trailer axle applications using the matching carrier dimensions and hub configuration.
Features
- 96mm internal diameter
- 132mm maximum outside diameter
- 22mm wide steel construction
- Fits compatible BPW ECO Plus wheel-end assemblies
Specifications and Materials
Product type: hub seal carrier.
Material: steel.
Dimensions: 96mm ID x 117.5/132mm OD x 22mm.
Part number: AP4183G.
See the official BPW Wheel End technical overview
Compatibility and Fitment
Match the existing carrier diameter and ECO Plus hub generation before fitting. This carrier appears in selected BPW ECO Plus wheel ends, including 10/12 tonne hub arrangements. On earlier hubs where the carrier remains installed with the later ECO Seal, it also acts as a stop in the sealing arrangement, so inspect the existing hub layout before removal.
These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes.
03.370.07.72.0, 0337007720, 070.474, 77367
Related Parts
Check the surrounding ECO Plus hub components when servicing the seal carrier.
| Use | Part number | Part type |
|---|---|---|
| Used with | AP4235 | ECO Plus hub seal |
| Used with | AP4101 | Hub O-ring |
| Component of | 0980107040TSSC | 10/12 tonne ECO Plus bearing and seal kit |
Compliance and Safety
Clean the carrier seating area and inspect the hub sealing surfaces before assembly. Replace damaged or distorted components rather than forcing the seal over an uneven carrier surface.
Trailer Applications
The BPW ECO Plus hub seal carrier suits wheel-end repairs where the original carrier is damaged, corroded or missing and the hub requires the 96mm bore, 132mm maximum outside diameter and 22mm configuration.
Cross-reference and Suitability
This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
| 03.370.07.72.0 | 0337007720 | 070.474 |
| 77367 |
Why Choose ICS Trailers
Seal carriers can look similar across BPW hub generations, so the important checks are the ECO Plus wheel-end type and the 96mm x 117.5/132mm x 22mm dimensions. If the hub is already apart, check the carrier together with the hub seal and O-ring rather than replacing one damaged sealing component in isolation. ICS Trailers can help match those adjoining wheel-end parts for the same repair.
