Description

Overview

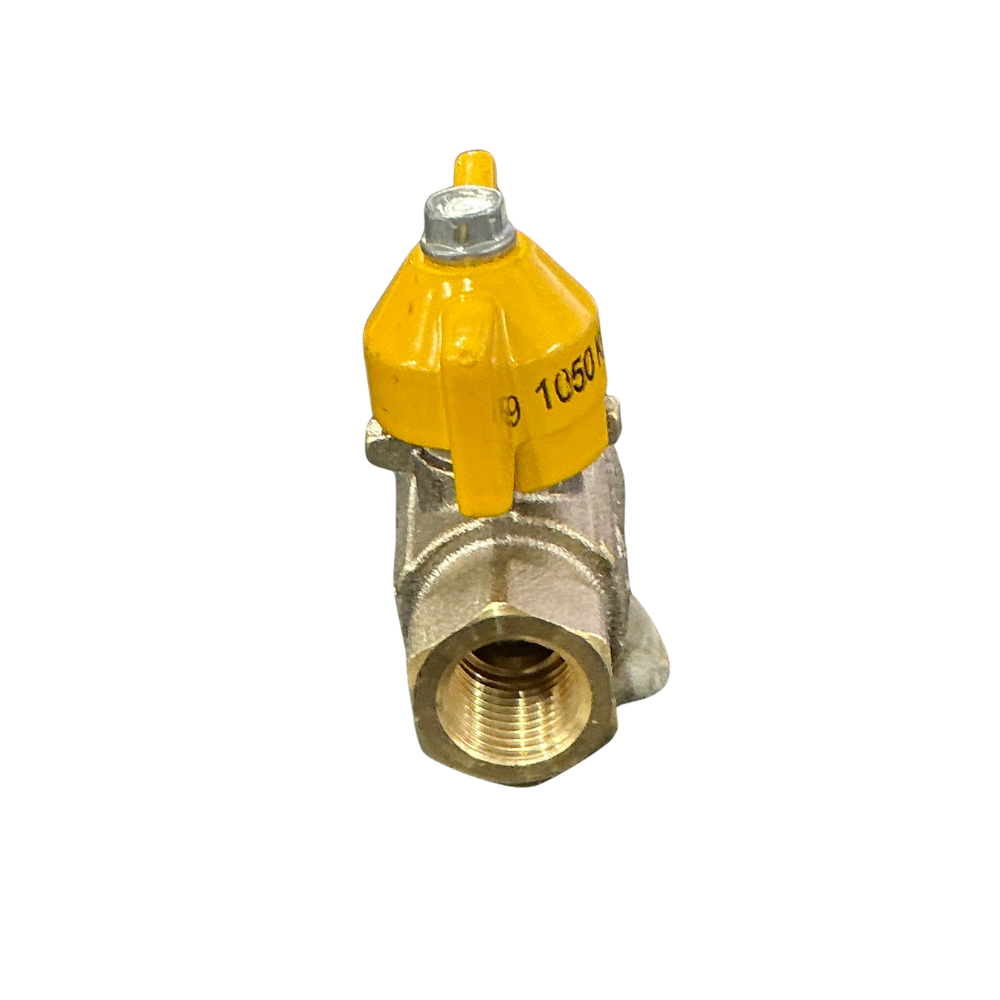

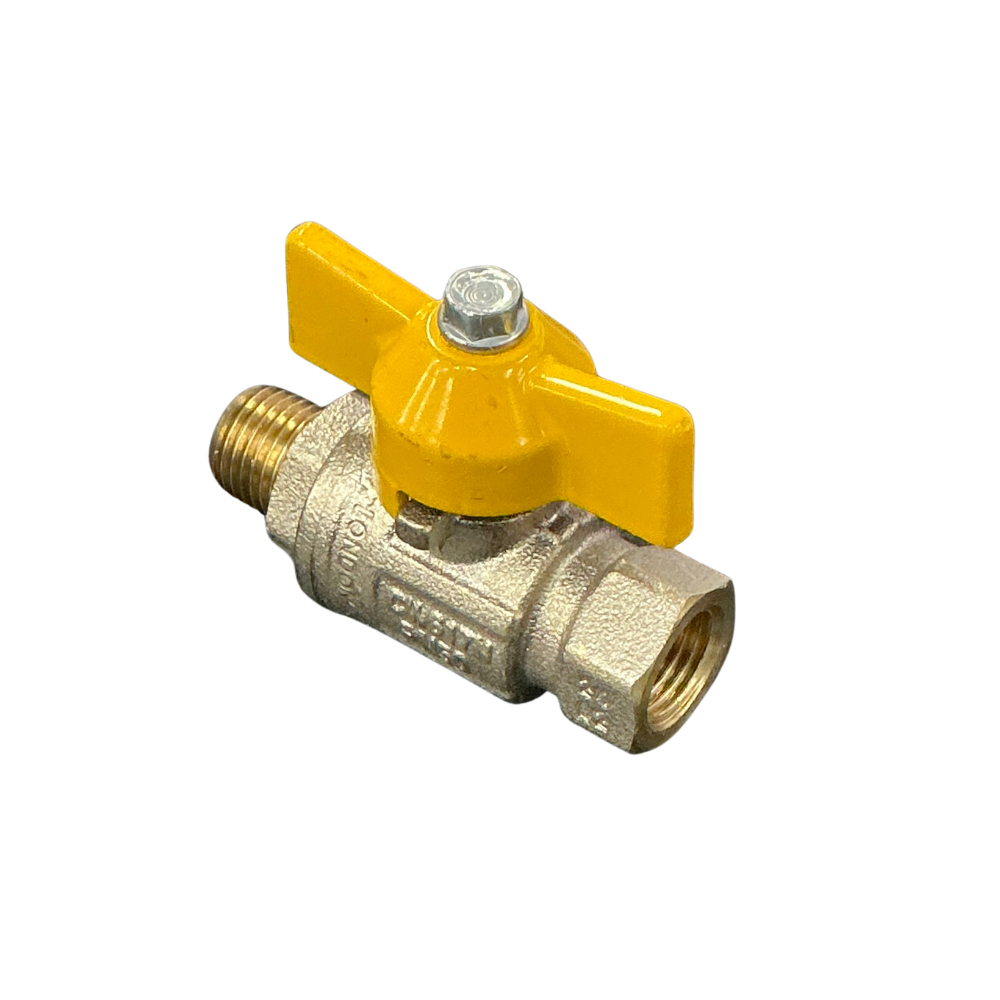

The 1/4 BSP male female T handle ball valve provides compact quarter-turn isolation in a threaded compressed-air line. Its full-bore passage and one male plus one female connection allow direct installation between compatible fittings or equipment without adding a separate nipple.

Features

• 1/4″ BSP male inlet and 1/4″ BSP female outlet
• Yellow T handle gives a clear open or closed position
• Full-bore two-way valve for low-restriction airflow
• Nickel-plated brass body with a compact DN8 format

Specifications and Materials

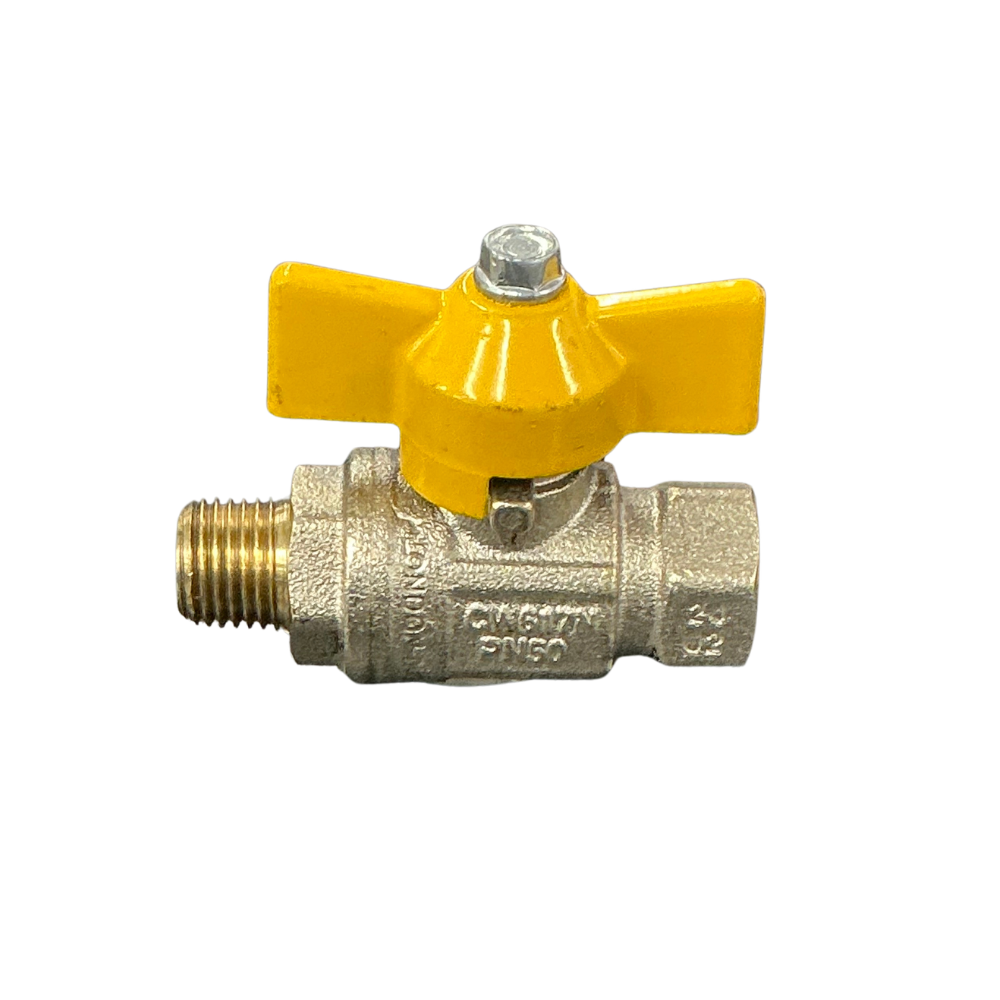

The valve uses a nickel-plated brass body, chrome-plated brass ball, PTFE seats and an aluminium T handle. The body is marked PN50, and the valve opens or closes through a 90-degree handle movement. Part number: 37-1721-04.

Review the official manufacturer ball valve specifications

Compatibility and Fitment

Confirm that both mating connections are 1/4″ BSP and that the installation requires male-to-female flow isolation. Do not substitute a 1/4″ NPT valve, female-to-female valve or mini reduced-bore valve solely because the nominal size appears the same. Apply suitable thread sealant only to the male connection and keep excess sealing material out of the valve bore.

These cross-references show where this valve replaces the part numbers and applications listed. Some air line changes may be needed. GPBV-500-03, GPBV50003

Compliance and Safety

Depressurise the line before fitting, removing or servicing the valve. Hold the hex section nearest the connection being tightened so installation torque is not transferred through the body joint. After assembly, move the handle fully between both positions and pressure-test the threaded connections and closed valve for leakage. Keep adequate clearance around the T handle so nearby hose, brackets or chassis components cannot prevent complete operation.

Trailer Applications

The 1/4 BSP male female T handle ball valve suits manual isolation points in truck and trailer pneumatic plumbing, coupling supply lines, workshop air circuits and auxiliary equipment. Its short T handle is useful in confined installations where a long lever could interfere with surrounding components.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies threaded valves, adaptors, hose fittings and pneumatic components for trailer air-system repairs. Send a clear photo of the existing valve and confirm the thread standard if the connection style is difficult to identify.
