Description

Overview

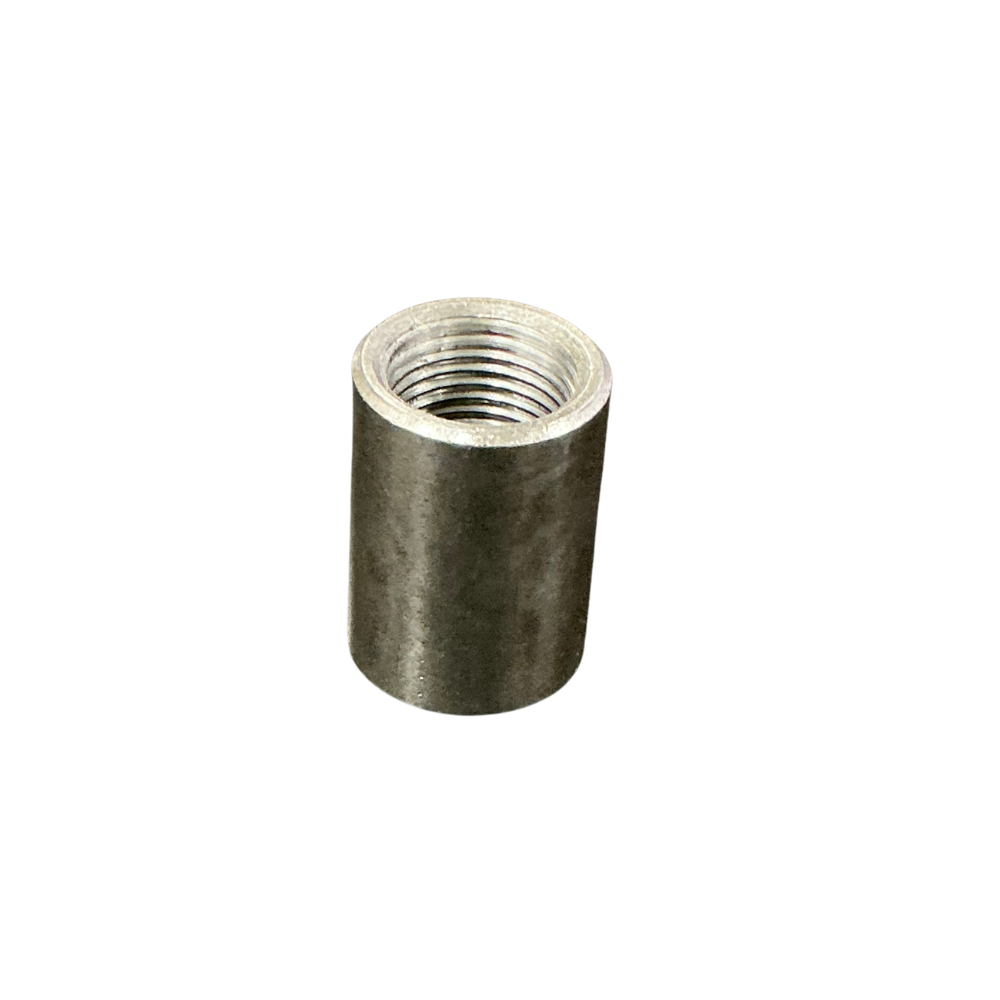

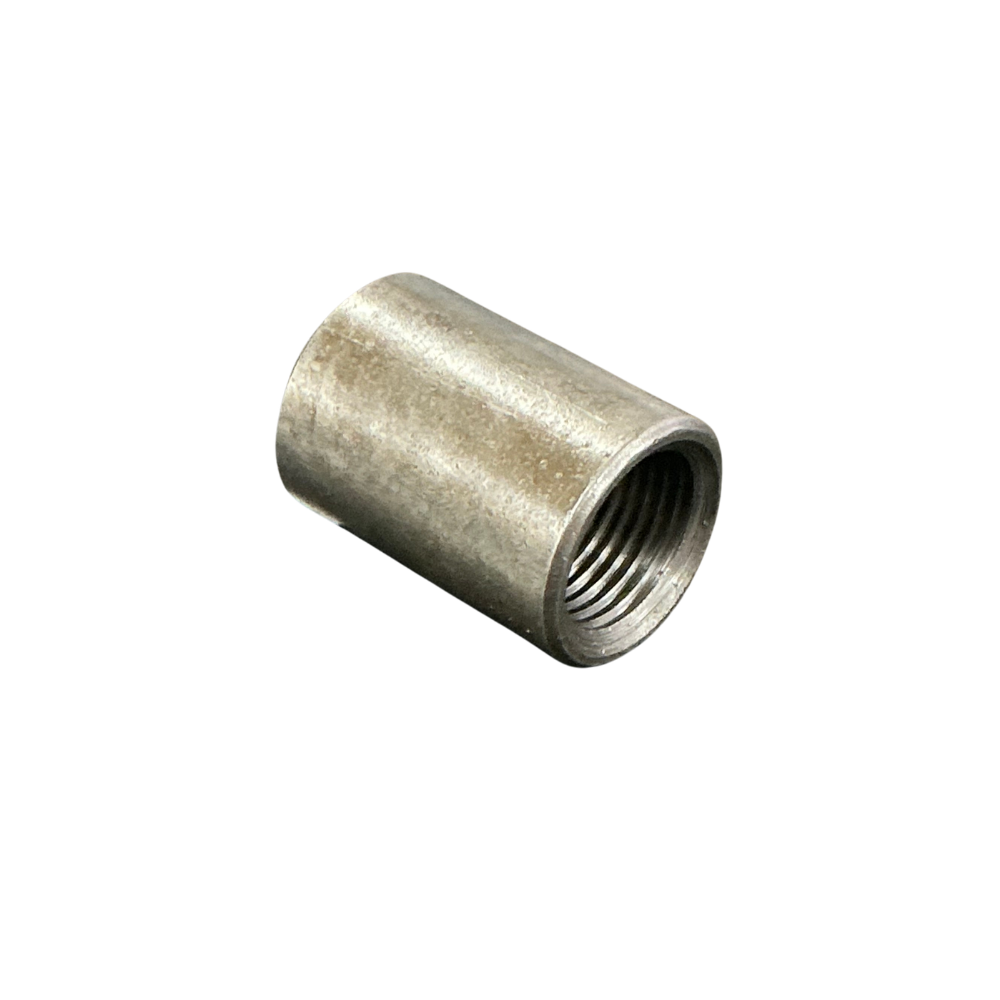

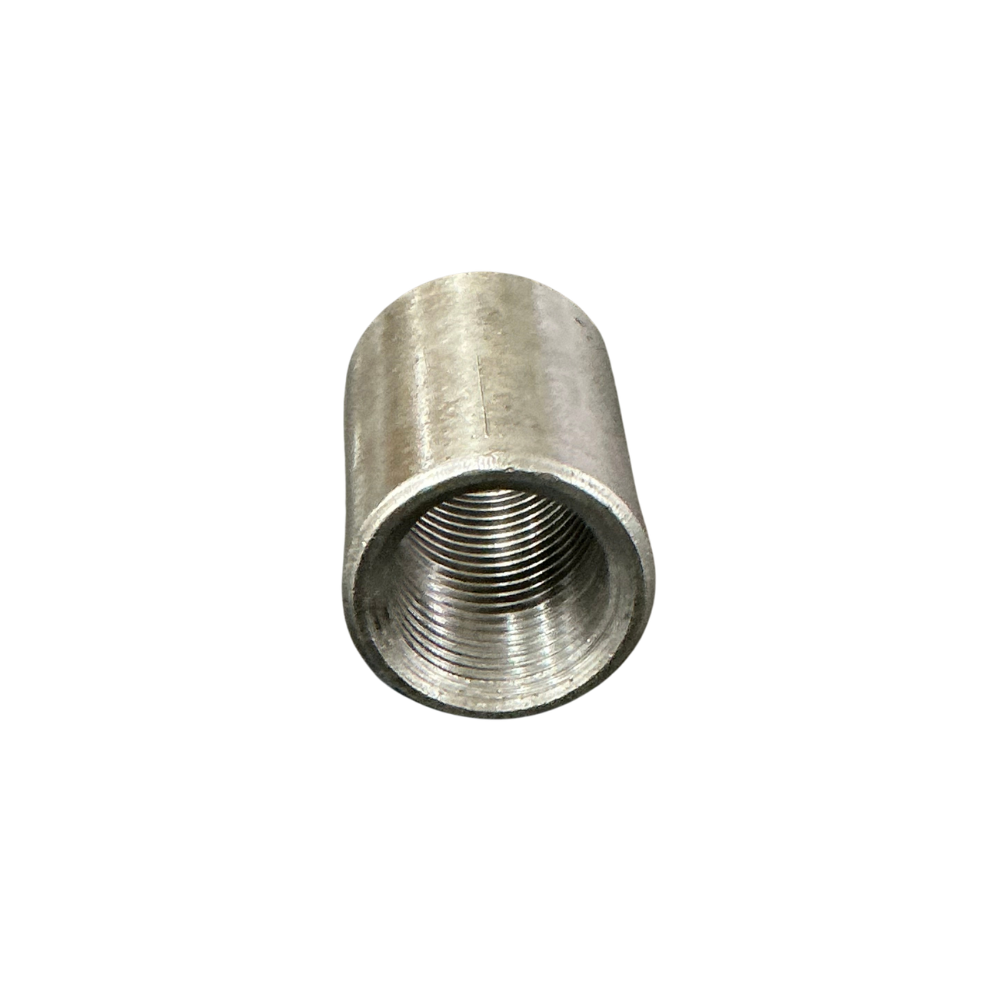

The 1/2 BSP black steel socket joins two male threaded fittings in a straight line. Its full-length female-to-female design suits compact threaded air plumbing where a valve, nipple or adaptor needs a secure steel coupling between components.

Features

• 1/2″ BSP female connection at both ends
• Full socket design for joining two male threaded components
• Black mild steel construction
• Straight cylindrical body without reducing or directional changes

Specifications and Materials

This fitting is a DN15 full socket manufactured from black steel with internal BSP threads running into both ends. It connects matching 1/2″ BSP male fittings and does not include a nipple or separate sealing material. Part number: 71-026-08.

Use the manufacturer BSP thread identification guide when comparing BSP and NPT connections

Compatibility and Fitment

Confirm both components have 1/2″ BSP male threads before ordering. Do not substitute a 1/2″ NPT socket solely because the nominal size appears the same, as BSP and NPT thread forms are generally not interchangeable. Also check that the job requires a full socket rather than a shorter half socket.

Apply suitable thread sealant to the male threads, start each connection by hand and keep the components aligned while tightening. The socket does not connect directly to nylon air tube unless a separate threaded tube adaptor is installed.

Compliance and Safety

Isolate and depressurise the air line before installation. Inspect both male threads for damage, contamination or corrosion, and replace any component that begins to cross-thread during assembly. Avoid excessive tightening that may split the socket or damage the connected fittings, then pressure-test both joints before returning the system to service.

Black steel can develop surface corrosion in exposed conditions, so check whether the installation needs additional protection from moisture, road spray or wash-down chemicals.

Trailer Applications

Workshops use this socket to join 1/2″ BSP male nipples, valves and adaptors in compressed-air systems, auxiliary pneumatic equipment and protected truck or trailer plumbing. The straight connection is useful where no change in thread size or pipe direction is required.

Why Choose ICS Trailers

ICS Trailers supplies threaded sockets, nipples, valves and adaptors for trailer and workshop air repairs. If the old fitting is difficult to identify, send a clear photo and confirm the thread diameter, connection type and required socket length.
