Description

Overview

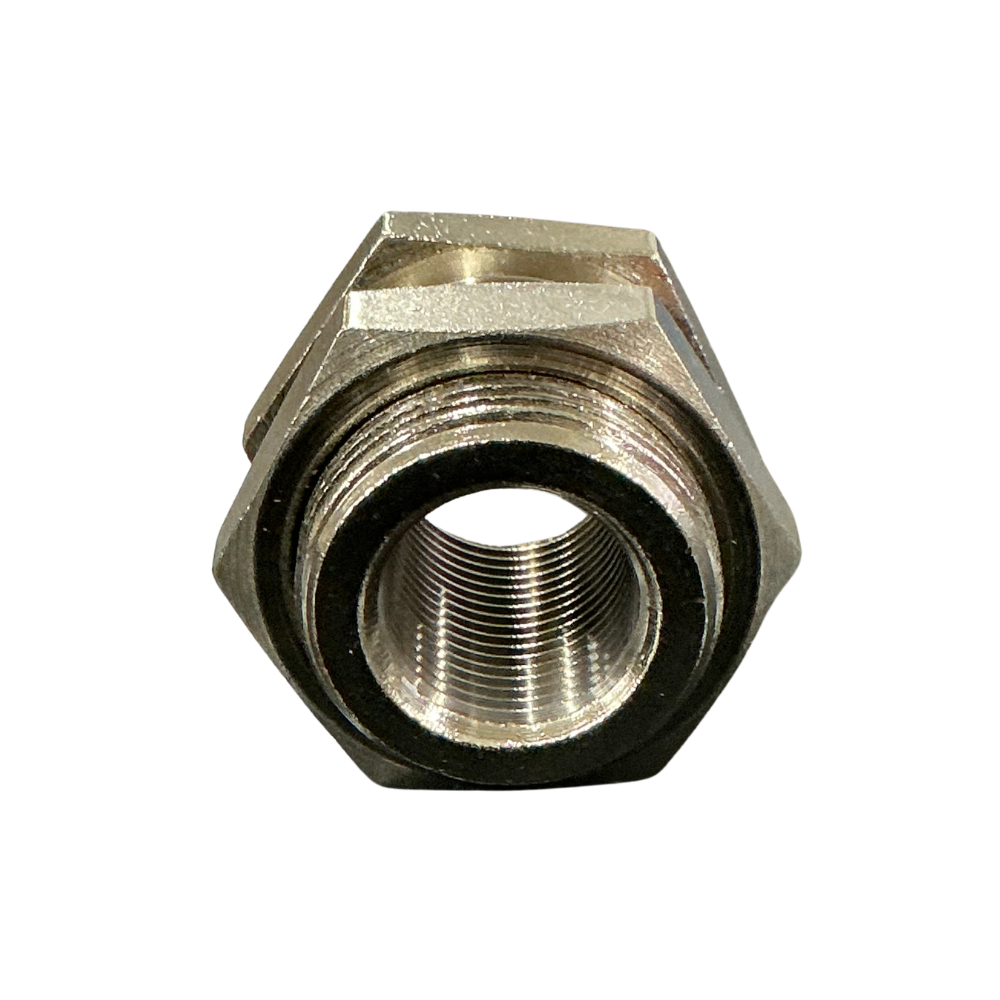

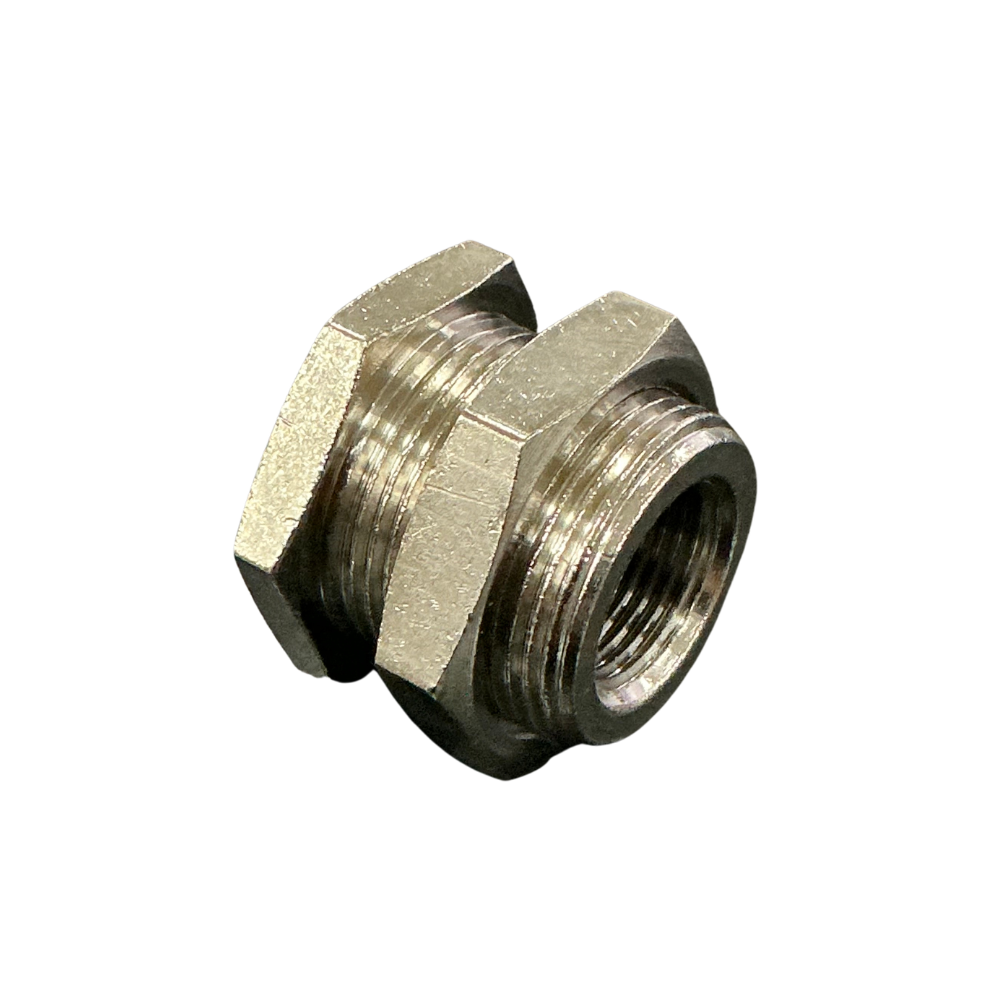

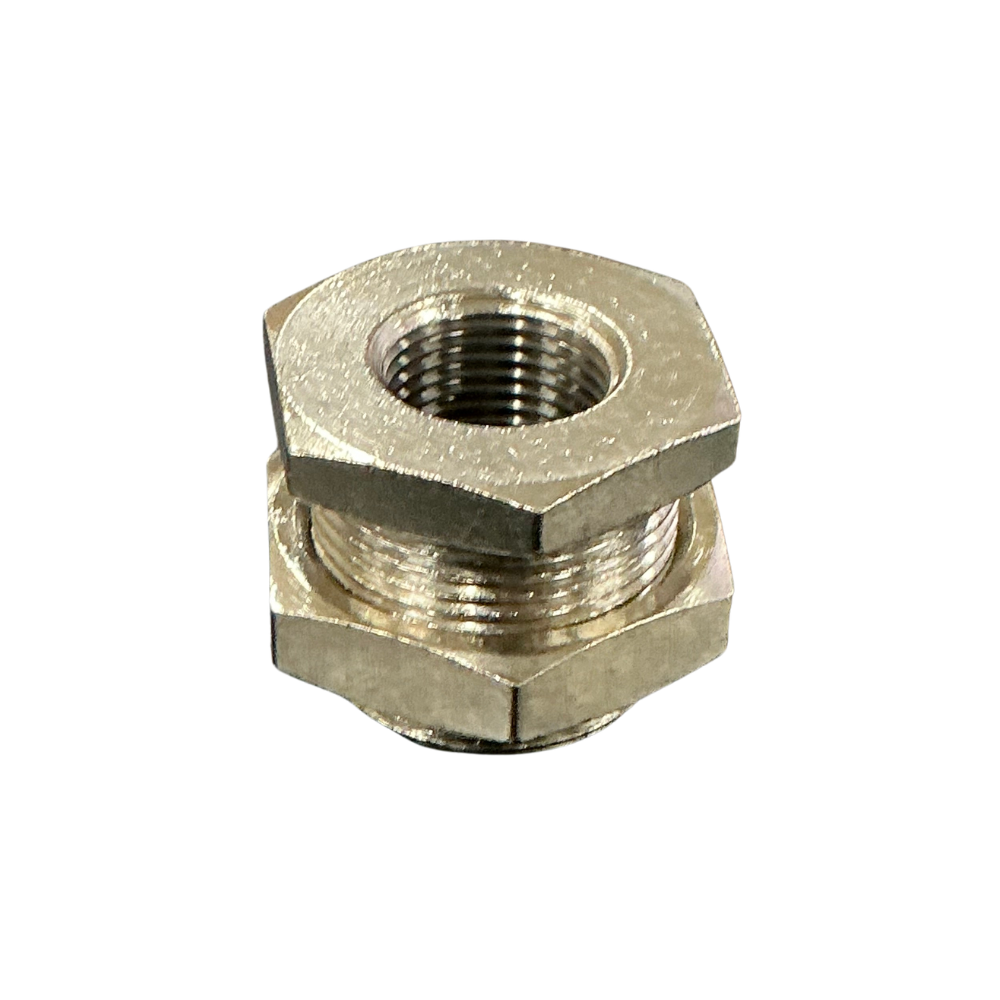

This 3/8 NPT bulkhead fitting carries a threaded air connection through a panel, bracket or enclosure. The female tapered port accepts a matching NPT fitting, while the 1-14 UNF external thread secures the body through the mounting surface.

Features

• 3/8 NPT female air connection
• 1-14 UNF external mounting thread
• Straight bulkhead configuration
• Brass body with a hex section for controlled tightening

Specifications and Materials

Part number: AB0910.

Connection: 3/8 NPT female.

Mounting thread: 1-14 UNF male.

Material: Brass.

Use the Parker fitting thread guide when comparing tapered and parallel thread forms

Compatibility and Fitment

Match both thread forms before ordering this 3/8 NPT bulkhead fitting. The female NPT port must suit the connecting air fitting, while the panel hole, thickness and retaining hardware must suit the larger external UNF mounting thread. The main ordering risk is confusing the 1-14 UNF mounting thread with the air connection or substituting a similar BSP fitting.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 02N80-06, 02N8006

Compliance and Safety

Depressurise the air circuit before removing or installing the fitting. Apply suitable pneumatic thread sealant only to the NPT connection and keep sealant clear of the internal passage. Hold the hex body during tightening to avoid twisting the connected air line or damaging the mounting panel.

Trailer Applications

This fitting suits trailer pneumatic systems that require an air connection to pass through a mounting plate, equipment bracket or enclosure wall. It may be used in auxiliary air circuits, suspension controls and other panel-mounted air-line installations with matching threads.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Bulkhead fittings with similar body shapes can use different port sizes and mounting threads. Compare the old fitting markings, panel hole and thread diameter before ordering. Send through clear photos and measurements if the existing thread cannot be identified.
