Description

Overview

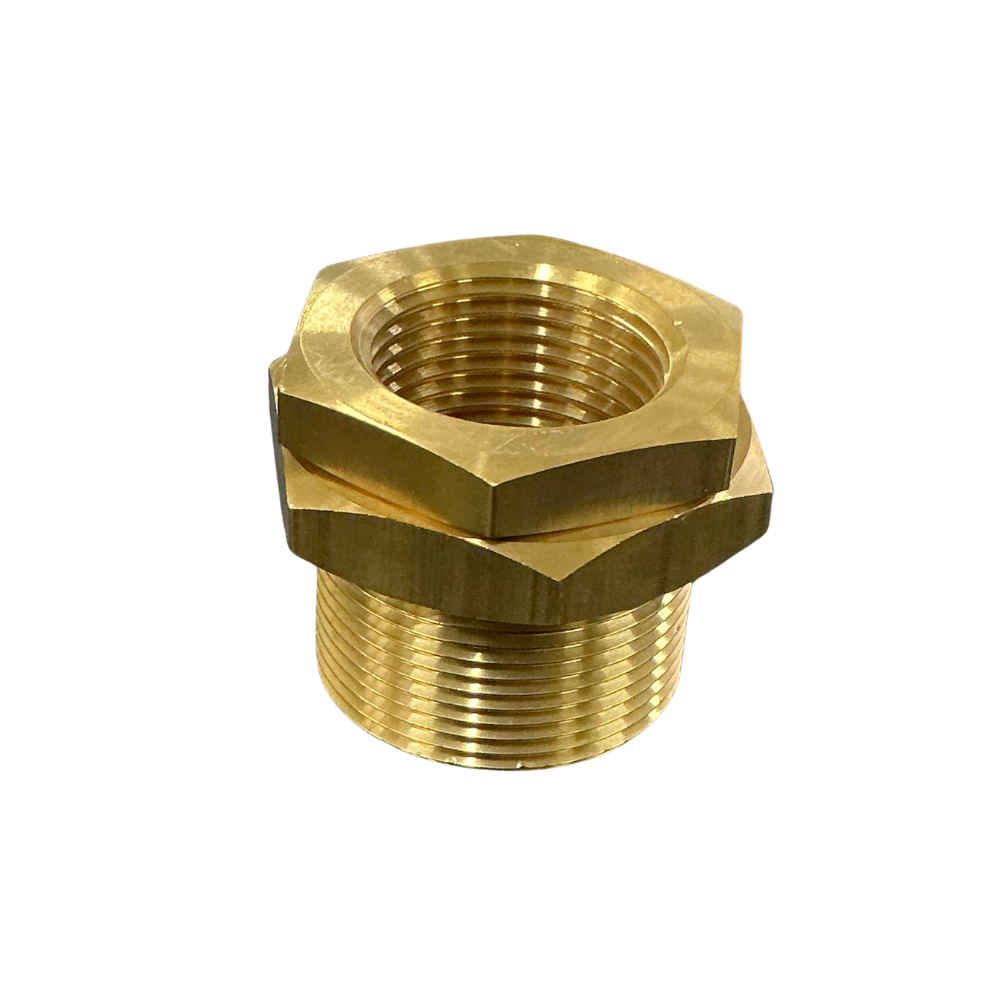

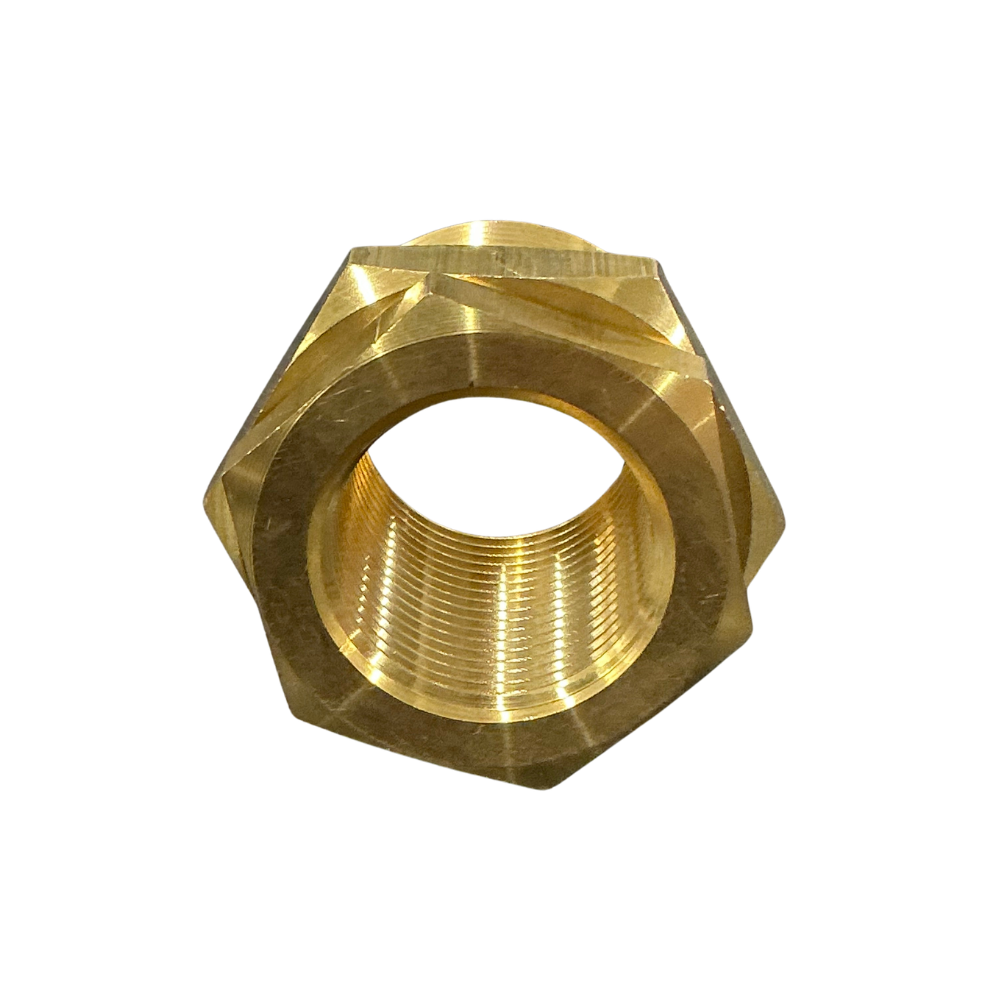

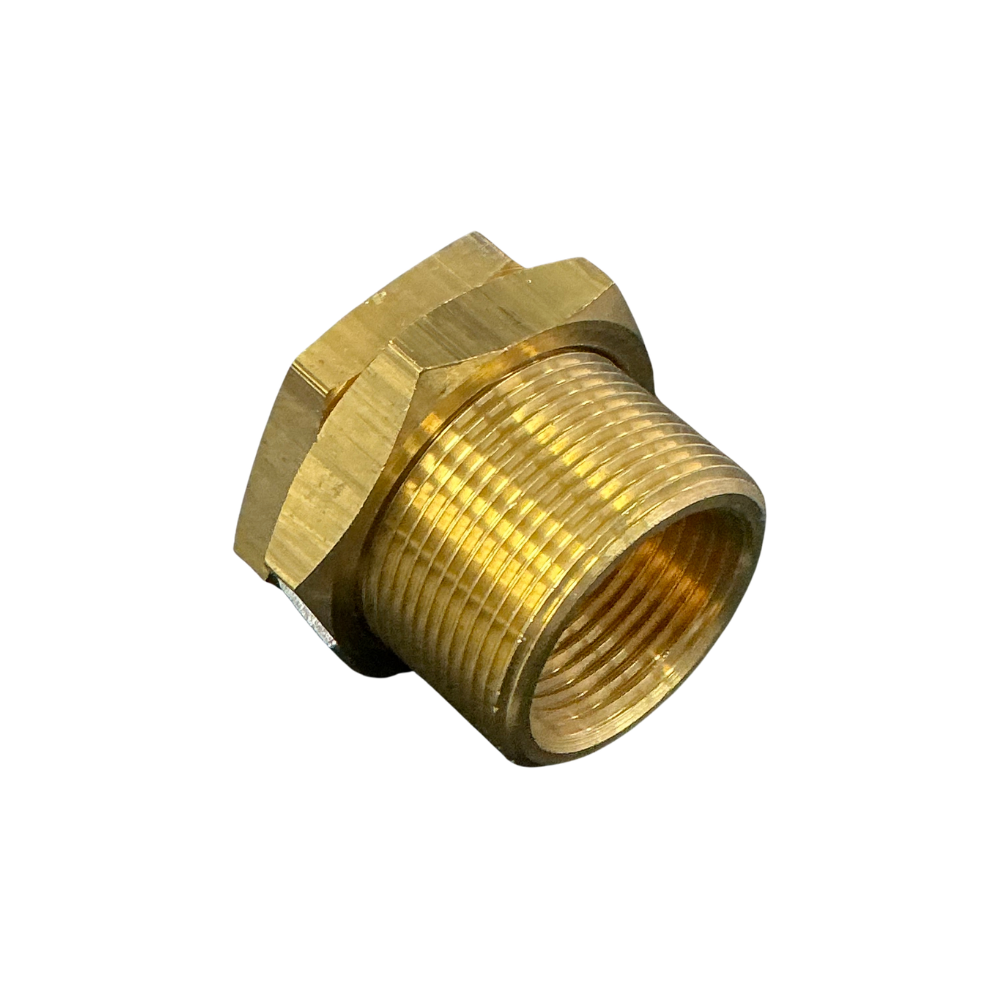

This 1 inch NPT bulkhead fitting carries a threaded pneumatic connection through a panel, mounting plate or enclosure. The female port suits installations that require a 1 inch NPT connection rather than one of the smaller bulkhead fitting sizes.

Features

• 1 inch NPT female threaded connection
• Straight bulkhead configuration for through-panel installation
• Creates a fixed connection point at a panel or bracket
• Suits threaded pneumatic components with a matching NPT connection

Specifications and Materials

Part number: AB0912.

Fitting type: Female bulkhead fitting.

Connection: 1 inch NPT female.

Before installation, compare thread forms with the Parker fitting thread guide

Compatibility and Fitment

Match the 1 inch female NPT port to the connecting component before ordering. Also check the panel opening, wall thickness, available mounting depth and retaining hardware against the existing fitting. The main mismatch risk is confusing NPT with BSP because similarly sized threads do not share the same form.

Compliance and Safety

Depressurise the pneumatic circuit before removing or installing this fitting. Apply a suitable air-system thread sealant to the mating NPT connection, but keep excess sealant clear of the internal passage. After fitting, support the connection and test the joint for leakage before returning the system to service.

Trailer Applications

The fitting provides a panel-mounted connection for trailer air lines, pneumatic equipment enclosures and auxiliary air systems. It may also suit air suspension or control installations where a 1 inch female NPT connection must pass through a bracket or dividing panel.

Why Choose ICS Trailers

Larger bulkhead fittings require enough panel clearance and the correct retaining arrangement. If the existing connection cannot be identified, send through photos of the fitting, thread and mounting hole together with the relevant measurements.
