Description

Overview

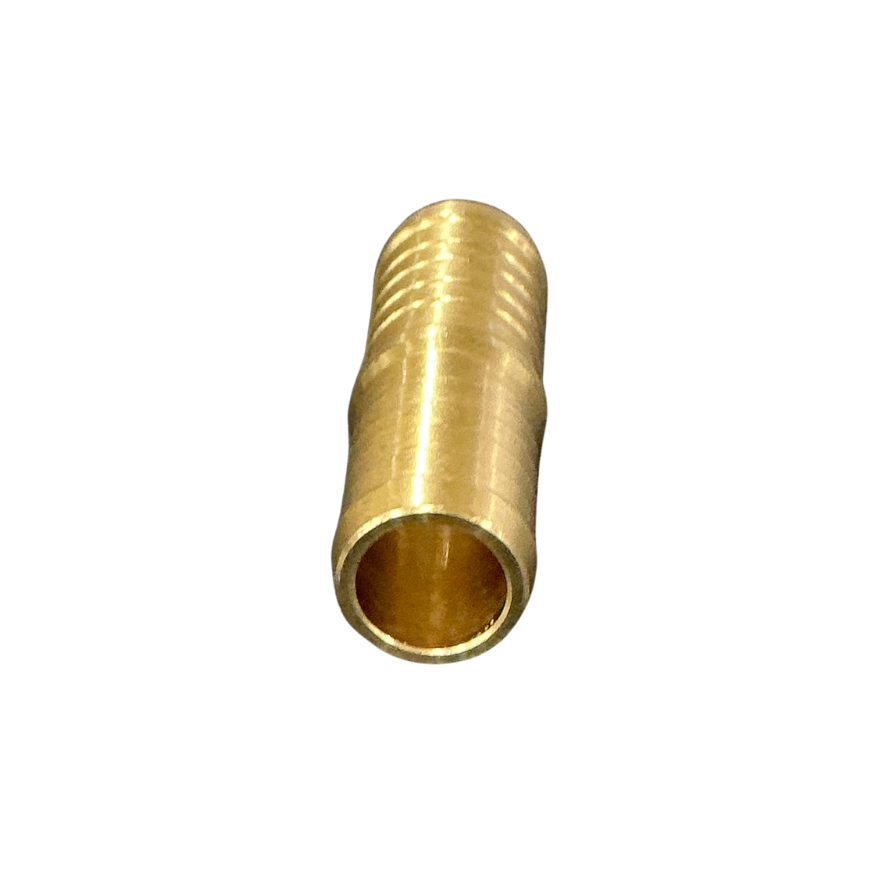

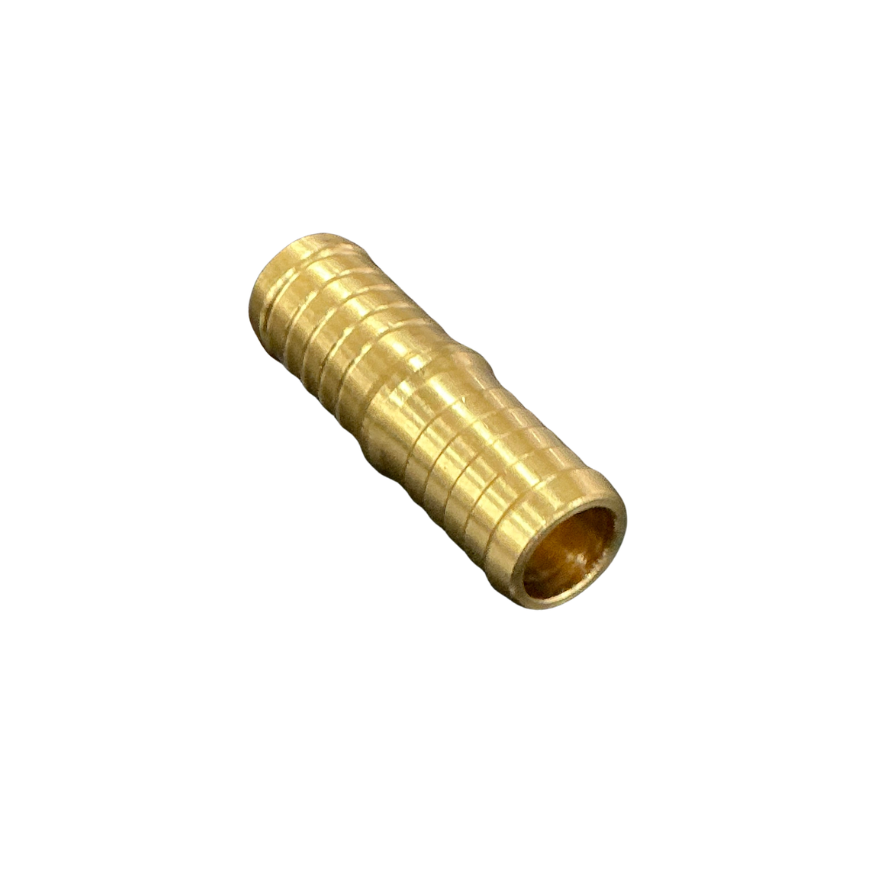

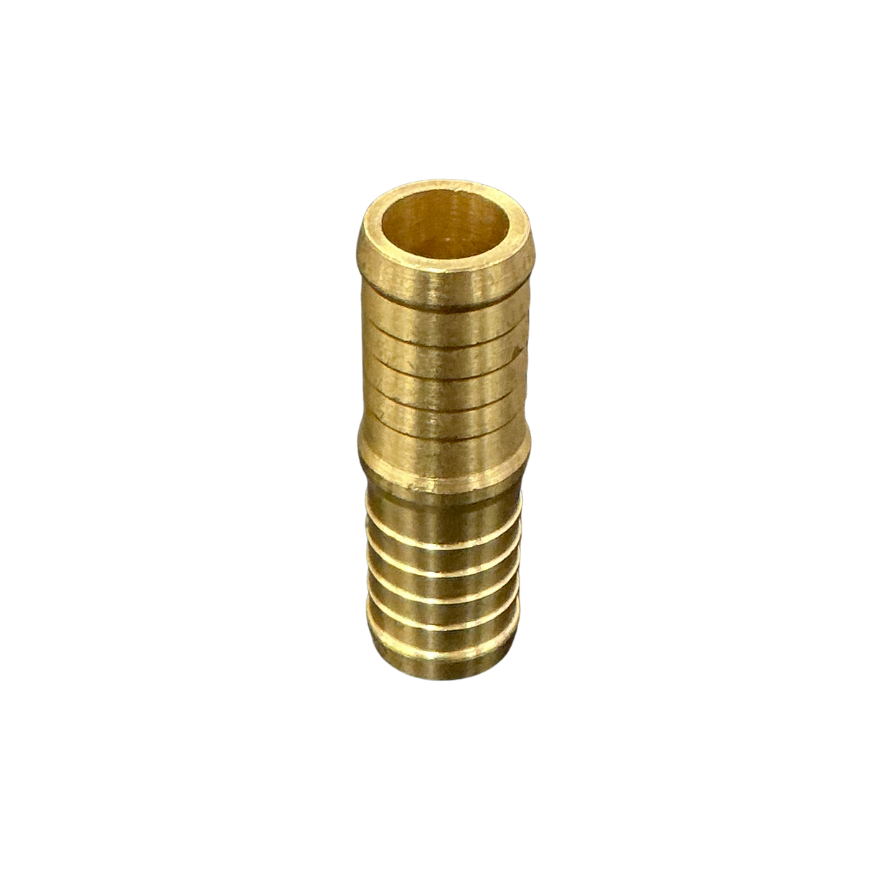

The 3/4 hose barb joiner connects two equal sections of flexible hose through a straight brass union. Both ends fit inside 3/4″ internal-diameter hose, allowing a damaged section to be removed or a run to be extended without threaded adaptors. The open centre passage maintains a direct inline route through the connection.

Features

• Equal 3/4″ hose barbs for matching hose at both ends
• Straight configuration keeps the repaired line aligned
• Multiple ribs provide broad contact inside each hose end
• One-piece brass body contains no threads or moving parts

Specifications and Materials

Configuration: straight hose barb union.

Connections: 3/4″ hose barb at both ends.

Hose sizing method: match the hose internal diameter.

Material: brass.

Part number: 06-007-12.

See the manufacturer hose barb joiner range for the matching imperial fitting family

Compatibility and Fitment

Measure the clear bore inside the hose rather than its outside diameter. A correct barb should enter firmly without splitting the hose or remaining loose enough to rotate. Cut each end square, remove damaged material and push the hose over the full ribbed section. Then secure both sides with clamps or crimped ferrules suited to the hose construction and operating conditions.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-574-012, GP574012

Compliance and Safety

Release line pressure and drain any fluid before cutting or disconnecting hose. Inspect the remaining hose for cracking, swelling, abrasion or hardening because weakened material can leak beside a new fitting. Confirm that the hose, retaining method and joiner suit the fluid, temperature and working pressure. Restore pressure gradually, then inspect both ends for leaks and movement.

Trailer Applications

The 3/4 hose barb joiner suits compatible flexible hose in truck, trailer, agricultural and workshop pneumatic systems. It may also connect suitable water, coolant or fuel hose when every component matches the medium and service conditions. Do not substitute this fitting for a threaded adaptor, compression union or push-to-connect connector.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies brass hose fittings, clamps, pneumatic connectors and air line components for heavy vehicle repairs. When replacing an unknown joiner, compare the hose bore, barb diameter, overall length and retaining method before ordering.
