Description

Overview

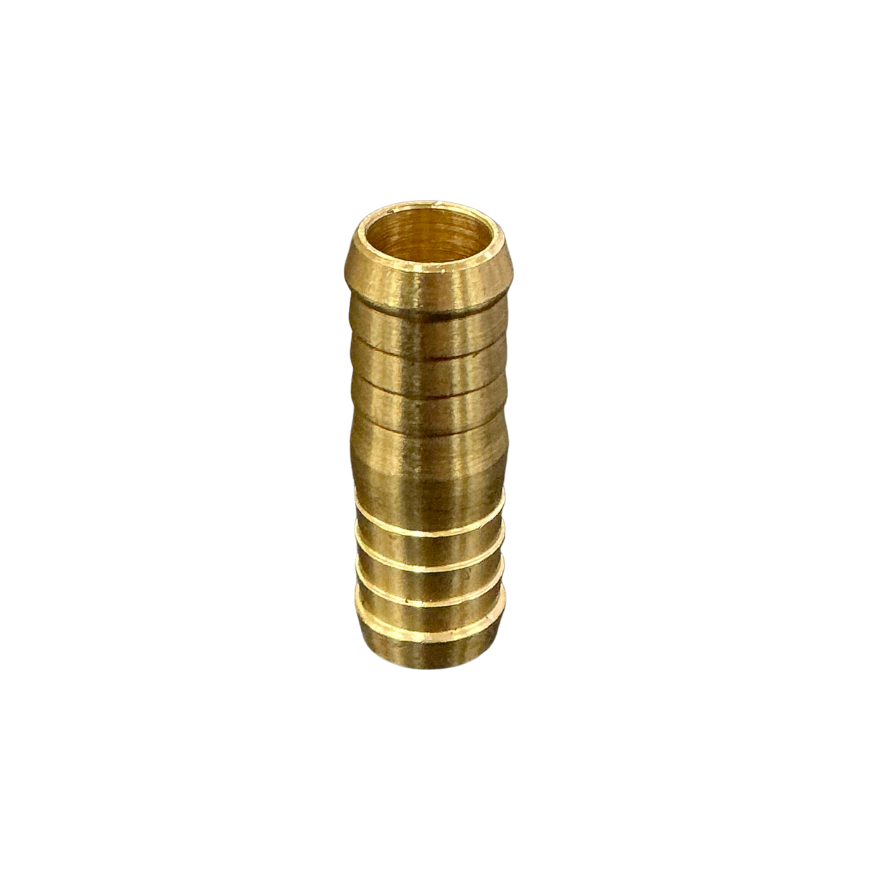

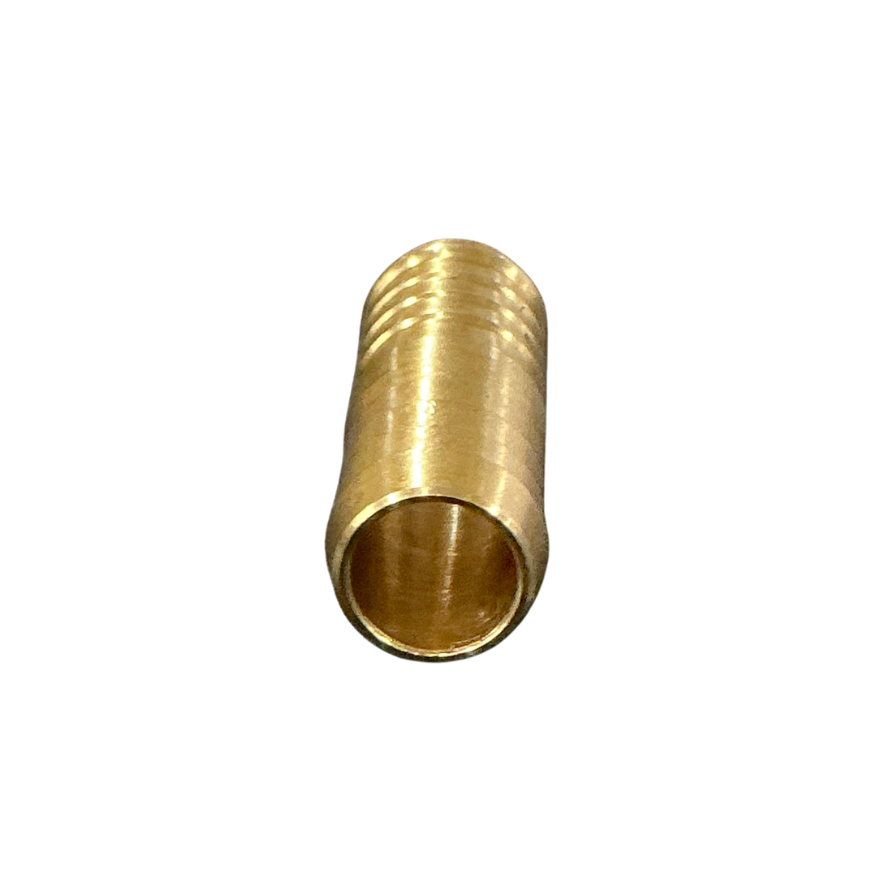

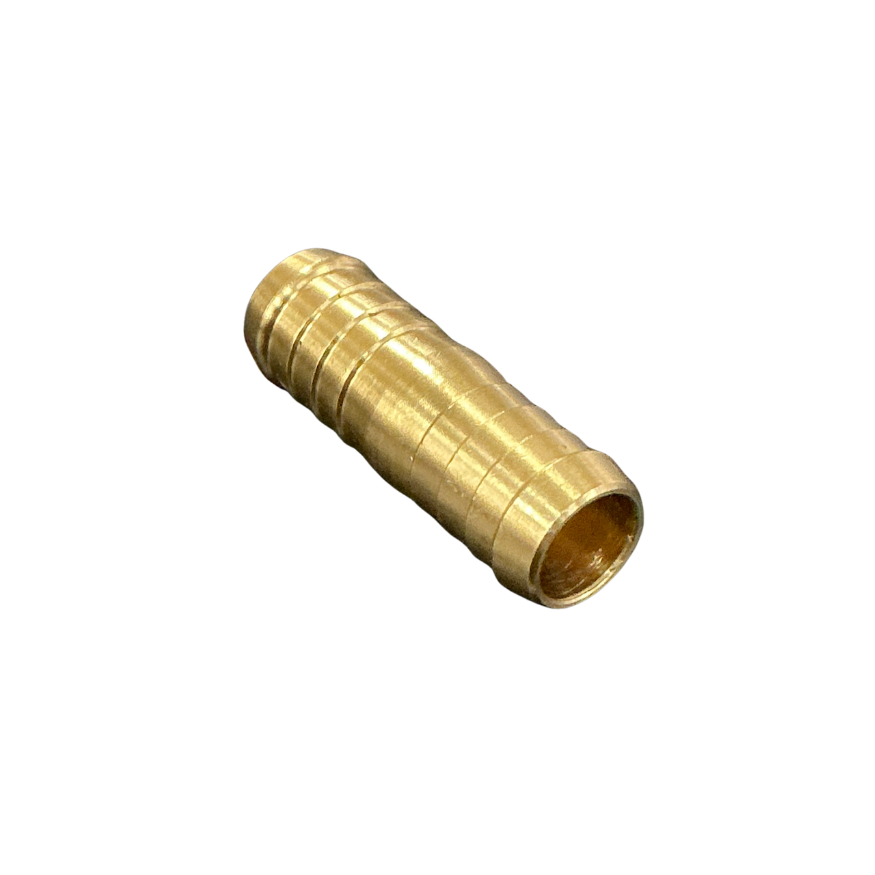

The 5/8 hose barb joiner connects two equal sections of flexible hose through a straight brass union. Barbed ends enter 5/8″ internal-diameter hose from opposite sides, allowing a damaged section to be removed or a hose run to be extended without adding threaded adaptors. Its larger bore suits higher-flow hose runs where a smaller joiner could restrict the passage.

Features

• Equal 5/8″ barbs connect matching hose sizes
• Straight double-ended design keeps the hose run inline
• Machined retaining ribs increase contact along both hose ends
• Brass body suits compatible air, water and fuel hose systems

Specifications and Materials

Configuration: straight hose barb joiner.

Connections: 5/8″ hose barb at both ends.

Hose sizing method: match the hose internal diameter.

Material: brass.

Part number: 06-007-10.

See the GP Truck Products hose barb joiner range for matching imperial sizes

Compatibility and Fitment

Measure the clear bore inside the hose rather than its outside diameter. The 5/8 hose barb joiner must enter firmly without splitting the hose or sliding in loosely. Cut each end square, remove damaged material and push the hose across the full barbed section. Then position a suitable clamp or crimped ferrule behind the leading barb so it retains the hose without cutting into the outer cover.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-574-010, GP574010

Compliance and Safety

Release pressure and drain the line before cutting or disconnecting hose. Inspect nearby hose for cracking, swelling, abrasion or hardening because weakened material can leak beside a new fitting. Confirm the hose, clamp and joiner suit the system medium, temperature and working pressure. After assembly, restore pressure gradually and inspect both connections for leakage or hose movement.

Trailer Applications

This straight joiner suits compatible flexible hose in truck, trailer, agricultural and workshop pneumatic systems. It can also connect suitable water, coolant or fuel hose where every component matches the intended fluid and operating conditions. Do not use it as a replacement for a threaded adaptor, push-in union or compression fitting.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies brass hose fittings, hose clamps, pneumatic connectors and air line components for heavy vehicle repair work. When replacing an unknown fitting, compare the hose bore, barb diameter, overall length and retaining method before ordering.
