Description

Overview

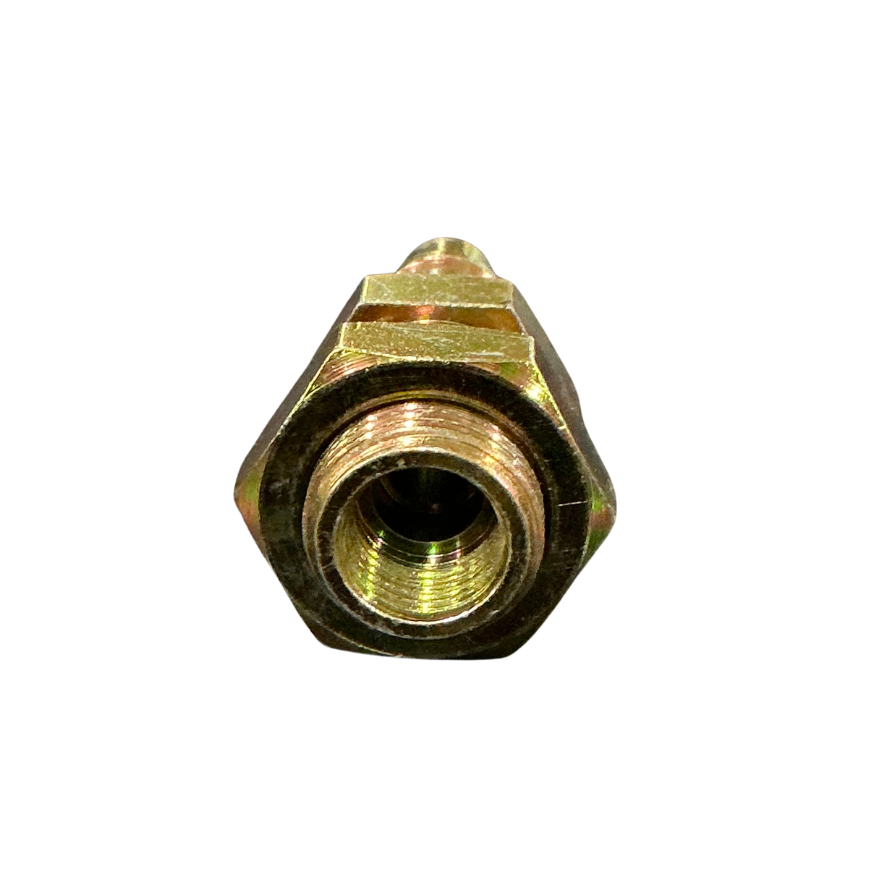

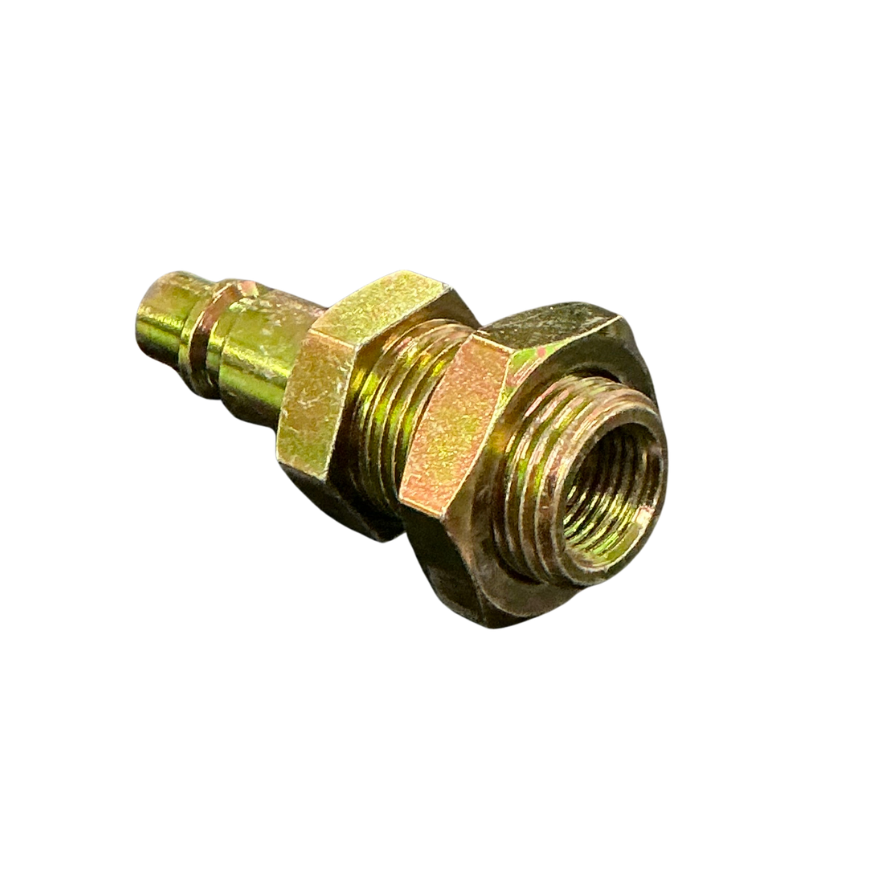

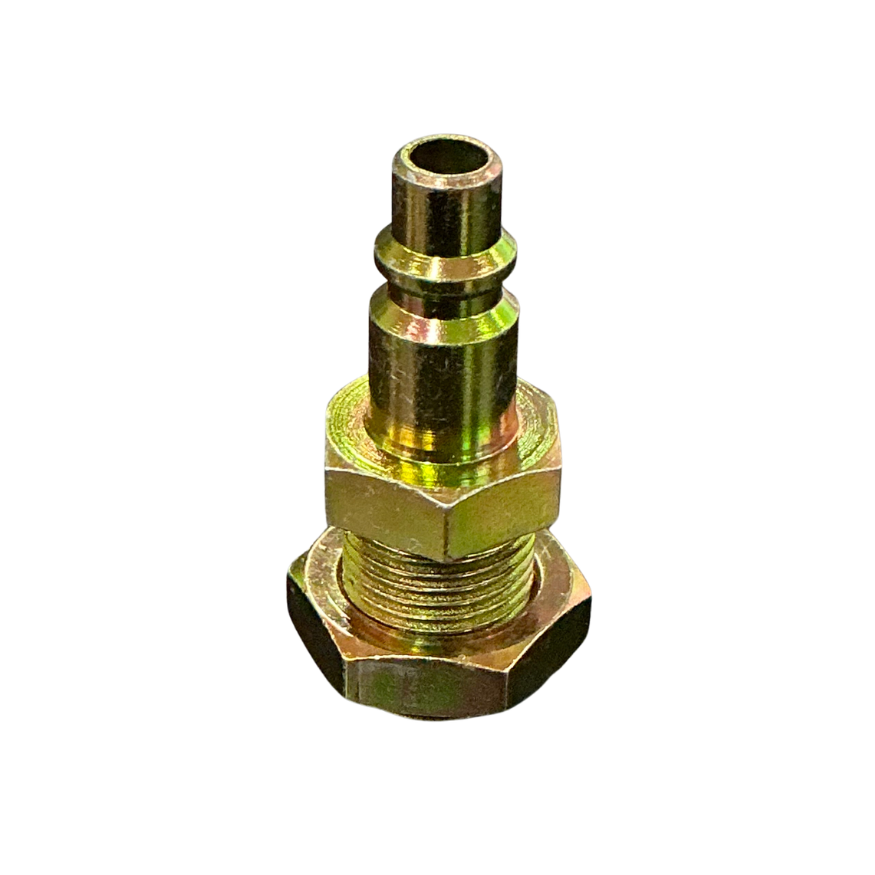

The 1/2 BSPP non-sealing bulkhead adaptor connects 3/8in nylon tube to a male quick-coupling nose through a fixed panel or bracket. It has no internal shut-off valve, while the threaded body secures the air-line connection at the mounting surface.

The kit includes an assembled 3/8in tube nut and ferrule. Therefore, the matching compression components arrive ready for installation with the adaptor.

Features

• Non-sealing male adaptor nose
• 1/2 BSPP male bulkhead mounting thread
• Compression port for 3/8in nylon tube
• Includes assembled tube nut and ferrule

Specifications and Materials

Product type: non-sealing male bulkhead coupling adaptor.

Connections: 1/2 BSPP male bulkhead thread to 3/8in nylon tube.

Included components: 3/8in tube nut and ferrule.

Part number: 33-A109K.

Review the manufacturer CA93 coupling guide

Compatibility and Fitment

Match the tube outside diameter, male thread and adaptor nose profile before ordering. However, a similar-looking NPT thread or the bulkhead coupling half will not provide the correct connection. Because the 1/2 BSPP non-sealing bulkhead adaptor has no shut-off valve, confirm that the mating coupling provides the sealing arrangement required by the system.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-93-109A, GP93109A, CA93-109, CA93109, SA93-109, SA93109, DPM-04NR, DPM04NR

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the air system before installation. Cut the nylon tube square, remove burrs and push it fully into the adaptor before tightening the nut. Then secure the bulkhead thread, restore pressure and check for leaks.

Trailer Applications

Workshops fit this adaptor at fixed chassis, headboard, panel or bracket-mounted connection points for trailer air lines, suzi-coil interfaces and detachable pneumatic hoses. Before returning the vehicle to service, confirm the system pressure rating and mating coupling arrangement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air-line fittings, coupling covers and tube connection parts for trailer repairs. If the old markings are unclear, send photos plus the measured tube and thread sizes.
