Description

Overview

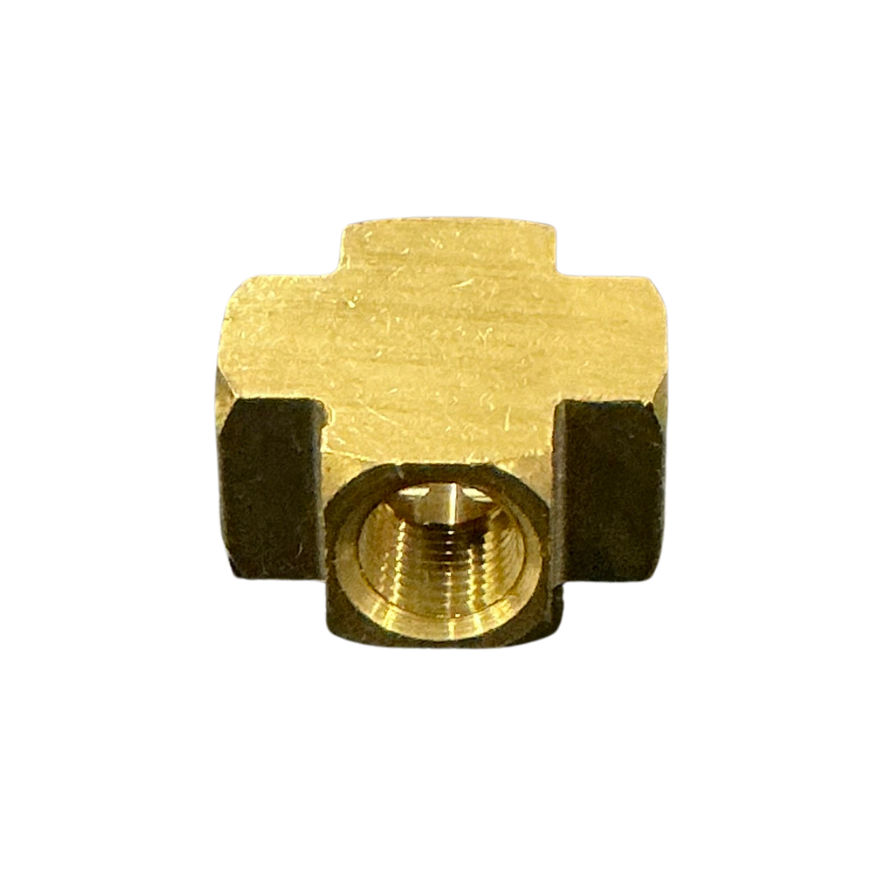

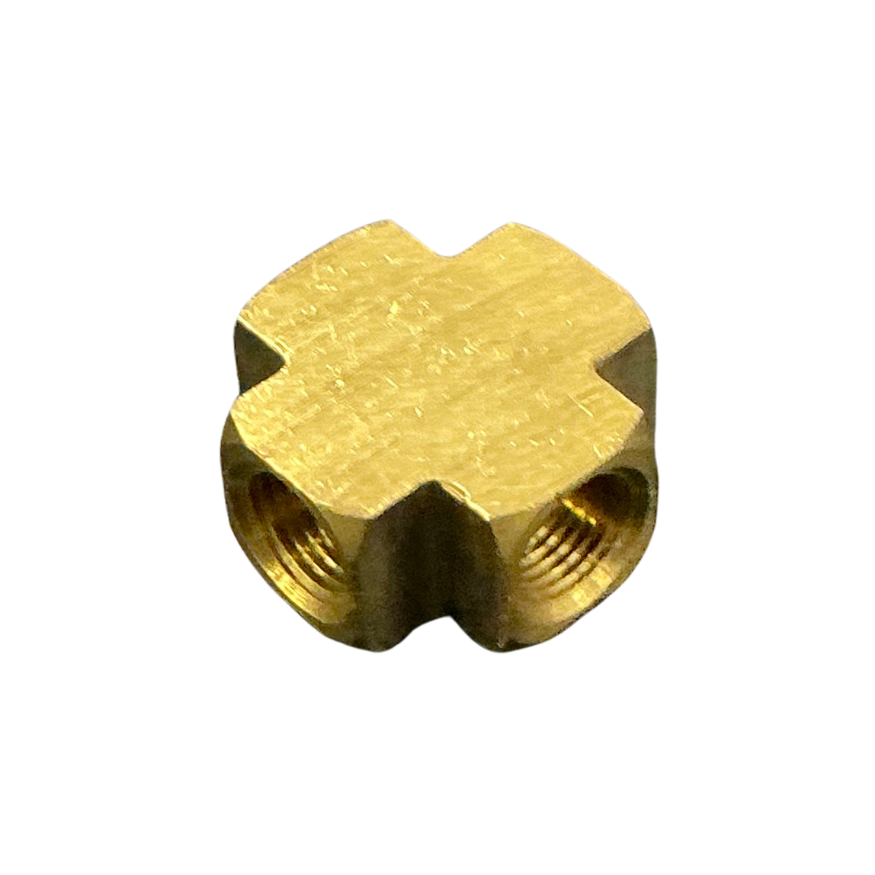

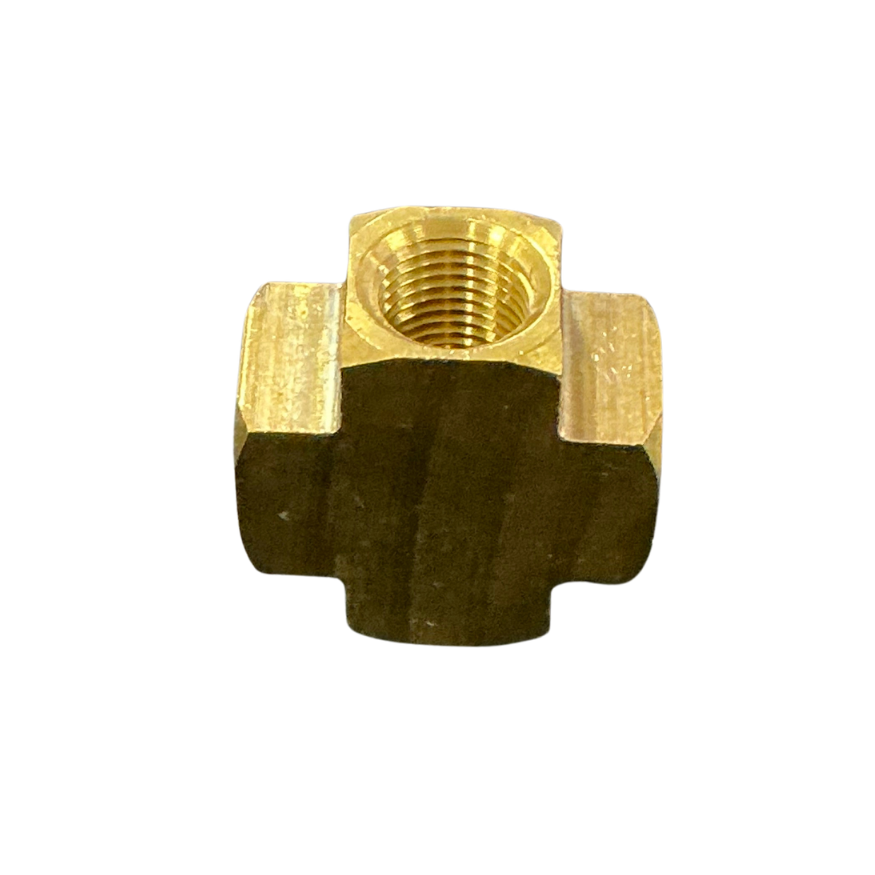

The 1/8 NPT female cross divides or combines a threaded pneumatic line through four equal female ports. Each connection enters the brass body at a right angle, creating a compact four-way junction where several components need to share one air passage.

Unlike a female tee, this cross provides an additional fourth port. The symmetrical layout also allows any port to serve as the inlet, outlet or branch where the system design permits.

Features

• Four equal 1/8 NPT female threaded ports
• Cross-shaped four-way connection layout
• Solid brass body with an open internal passage
• Machined outer flats for controlled installation

Specifications and Materials

This No.37 female cross carries four matching 1/8 NPT female connections. The one-piece brass body joins the ports through a central passage without separate tube nuts, olives or inserts.

Part number: 02N37-02.

View the manufacturer technical details for a 1/8 female brass cross

Compatibility and Fitment

Confirm that all four mating components use 1/8 NPT male threads. A female tee has only three ports, while BSP and NPT fittings can appear similar despite using different thread forms and sealing arrangements.

Allow enough room around each side of the cross for the connected fittings, hoses or valves. Check that tools can reach the mating components without placing twisting force through the brass body.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 02-N3701, 02N3701, A37-02N, A3702N, 2205P-2, 2205P2, Z3950X2

Compliance and Safety

Depressurise the pneumatic system before removing or installing the fitting. Clean each mating thread and apply compatible pneumatic thread sealant to the male components, keeping excess sealant away from the central passage.

Support the cross while tightening each connection so force from one port is not transferred into another. Restore pressure gradually and leak-test all four joints before returning the system to service.

Trailer Applications

Trailer and heavy-vehicle workshops use female crosses where several threaded pneumatic components need to connect at one compact junction. Applications can include gauge lines, control circuits, valves and workshop air assemblies using matching 1/8 NPT male connections.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Small female crosses are easily confused with tees and similar BSP fittings. Compare the number of ports, thread type and nominal size with the removed fitting, or send clear photos and measurements if the connection needs further identification.
