Description

Overview

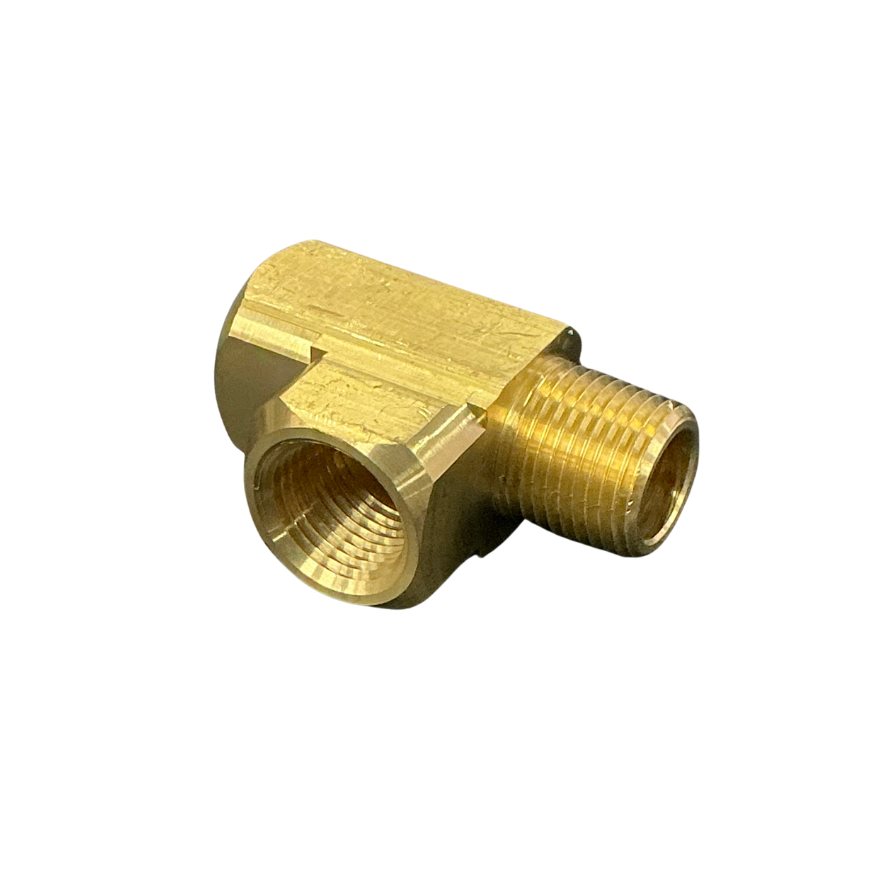

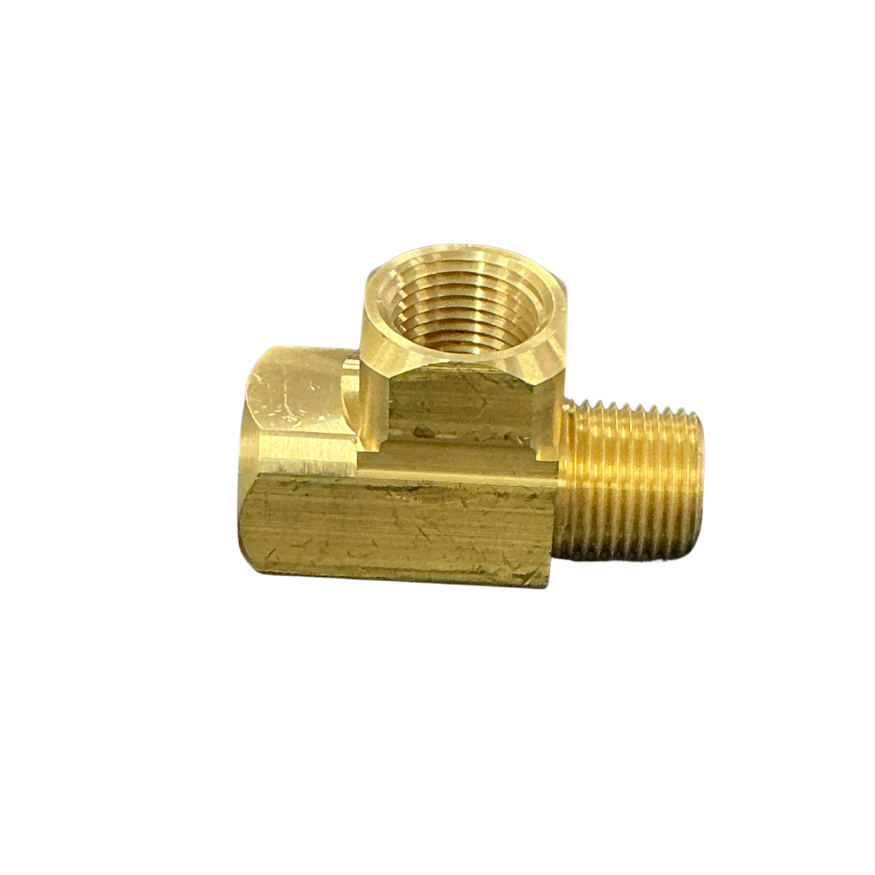

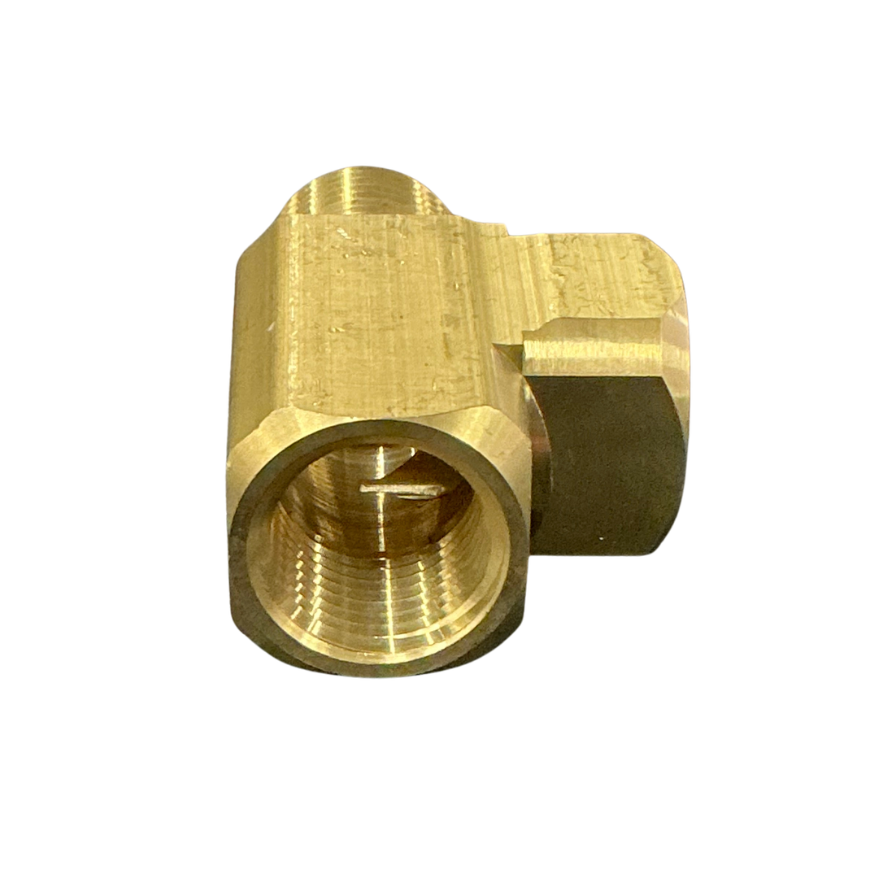

The 1/2 NPT male run tee creates a three-way pneumatic connection while continuing the main passage through the male port and the opposing female port. A second female port branches from the brass body at 90 degrees for an additional threaded connection.

The position of the male thread distinguishes this fitting from a male branch tee. On this run tee, the male port forms part of the straight passage rather than sitting on the perpendicular branch.

Features

• One 1/2 NPT male connection on the straight run
• Two 1/2 NPT female threaded ports
• Perpendicular female port for the side take-off
• Solid brass body with machined tool flats

Specifications and Materials

The No.35R configuration combines one male and two female 1/2 NPT connections. The male port aligns with one female port to create the straight passage, while the remaining female port provides the 90-degree branch.

Part number: 02N35R-08.

Model and connection details appear in the manufacturer technical specifications

Compatibility and Fitment

Confirm that the replacement requires the male connection on the straight run. A male branch tee can use the same thread sizes while placing the male port at 90 degrees, so it will not produce the same connection layout.

Check all three mating threads for the correct nominal size and thread form. NPT, NPTF, NPSF and BSP fittings can appear similar but must not be selected by diameter alone. Allow enough surrounding clearance to rotate the complete tee into the receiving port during installation.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-702-08, GP70208, 02-N35MR08, 02N35MR08, 3750X8

Compliance and Safety

Depressurise the pneumatic system before removing or installing the fitting. Clean the mating threads and apply compatible pneumatic thread sealant where required, keeping excess material away from the internal passage.

Use the machined body flats when tightening the tee. Restore pressure gradually and leak-test all three connections before returning the system to service. Avoid overtightening because excessive force can damage the brass threads or adjoining components.

Trailer Applications

Trailer and heavy-vehicle workshops use male run tees to add a side connection at a valve, manifold or threaded air-system junction while maintaining the main connection through the straight passage.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

Male run and male branch tees are easy to confuse when their thread sizes match. Compare the position of all three ports with the removed fitting, or send clear photos from several angles if the required configuration is uncertain.
