Overview

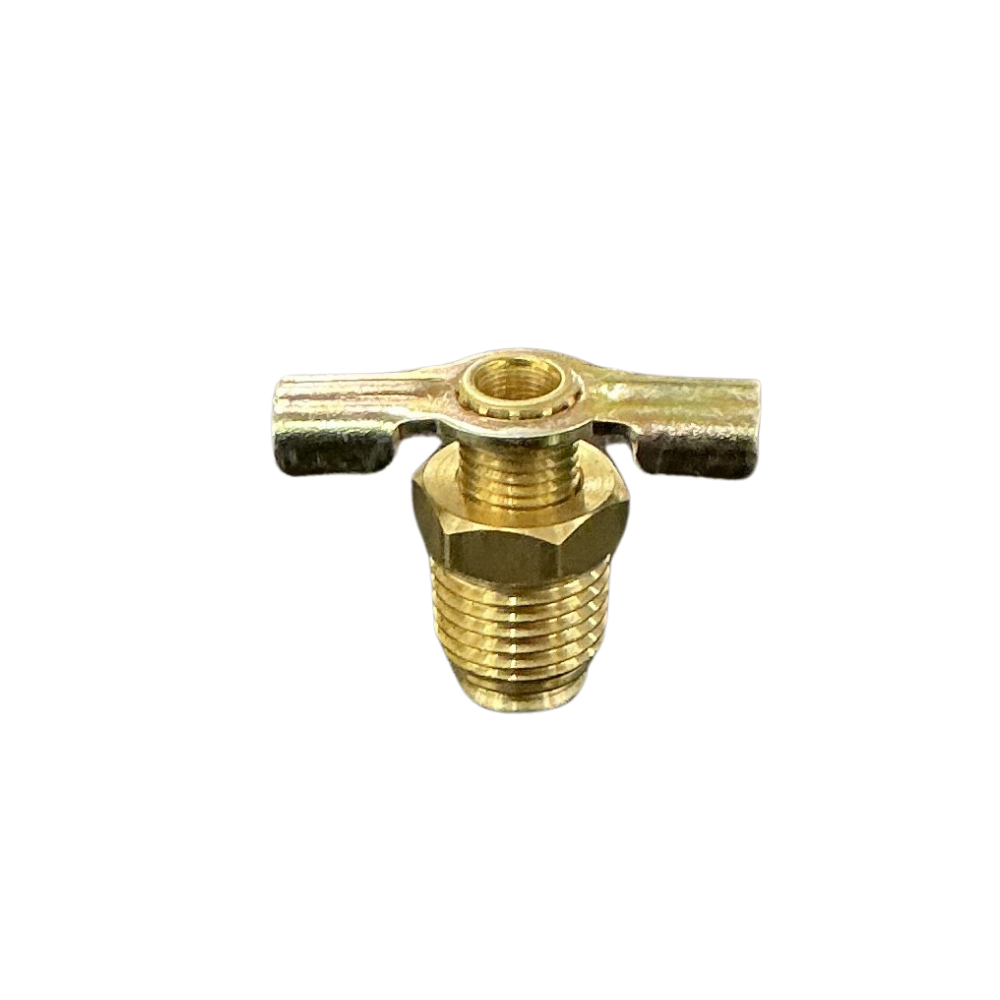

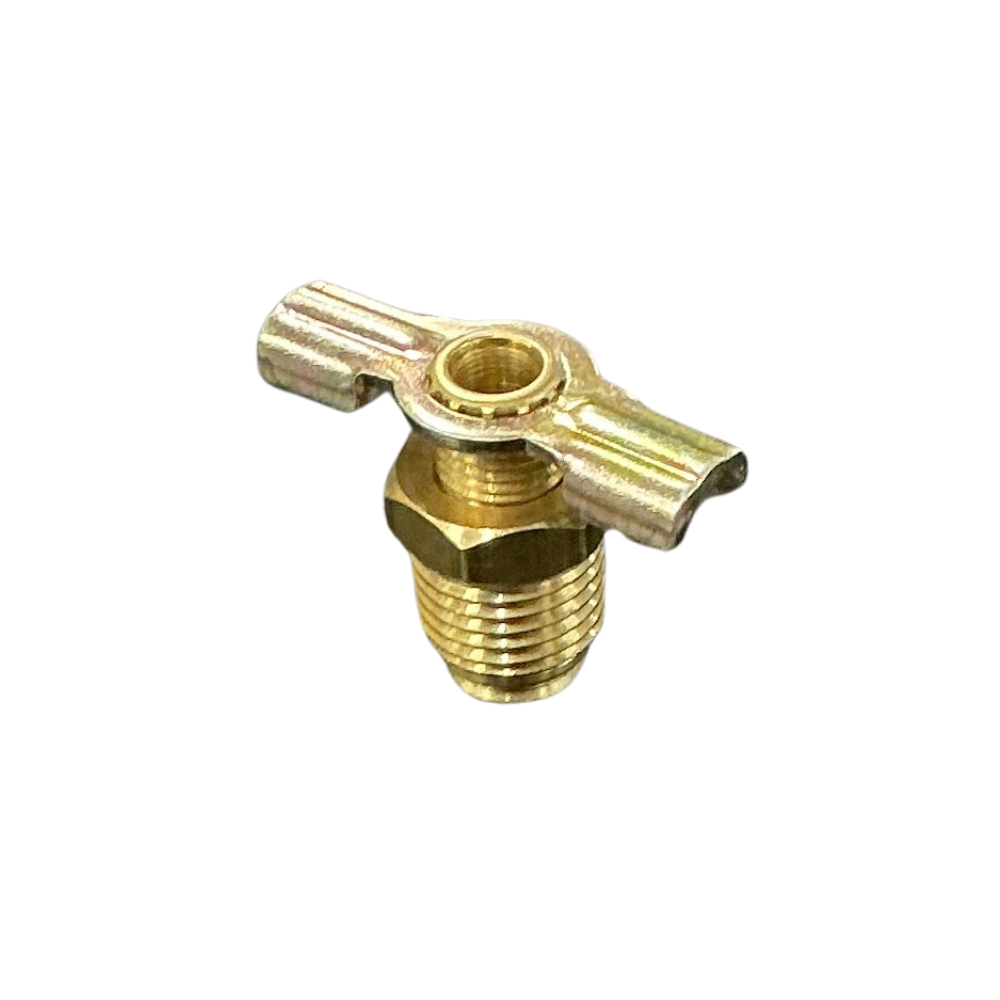

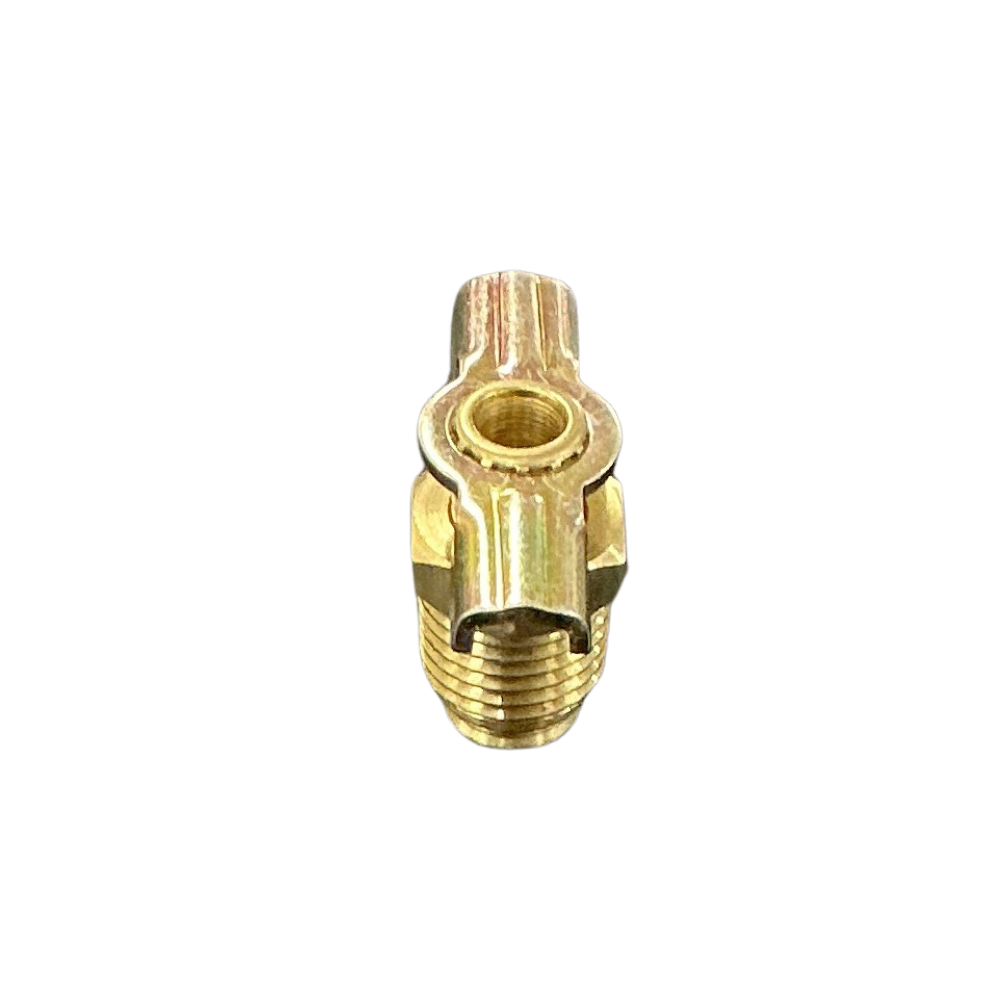

This brass drain cock provides a compact manual drain point for compatible trailer air tanks and pneumatic reservoirs. Its screw-style control allows accumulated moisture and compressed air to be released through a 1/4 NPT threaded connection.

Features

• Screw-style control for opening and closing the drain point
• 1/4 NPT male thread for compatible air tank ports
• Brass construction for pneumatic service
• Compact body for installation beneath air reservoirs

Specifications and Materials

Product type: screw drain cock. Material: brass. Thread: 1/4 NPT male. Operation: manually opened and closed by turning the screw control.

Part number: AB7620.

See the ZF air management overview

Compatibility and Fitment

Match the 1/4 NPT thread, drain port depth and available operating clearance before ordering. The main mismatch risk is fitting the drain cock to a BSP or metric port that appears similar but uses a different thread form. Install it where the control remains accessible and discharged moisture can leave the tank safely.

Compliance and Safety

Fully depressurise the air system before removing or replacing the drain cock. Apply thread sealant suitable for pneumatic NPT connections and avoid over-tightening the brass body. After installation, pressurise the system and check the closed drain point for leakage.

Trailer Applications

This screw drain cock suits compatible trailer air reservoirs, auxiliary air tanks and pneumatic drain points with a 1/4 NPT female port. Opening the control allows water and condensation collected at the bottom of the reservoir to be discharged during servicing.

Why Choose ICS Trailers

Drain taps can differ by thread type, operating style and installation clearance. Compare the removed part and air tank port before ordering, or send clear photos and thread measurements if the connection cannot be identified.
