Description

Overview

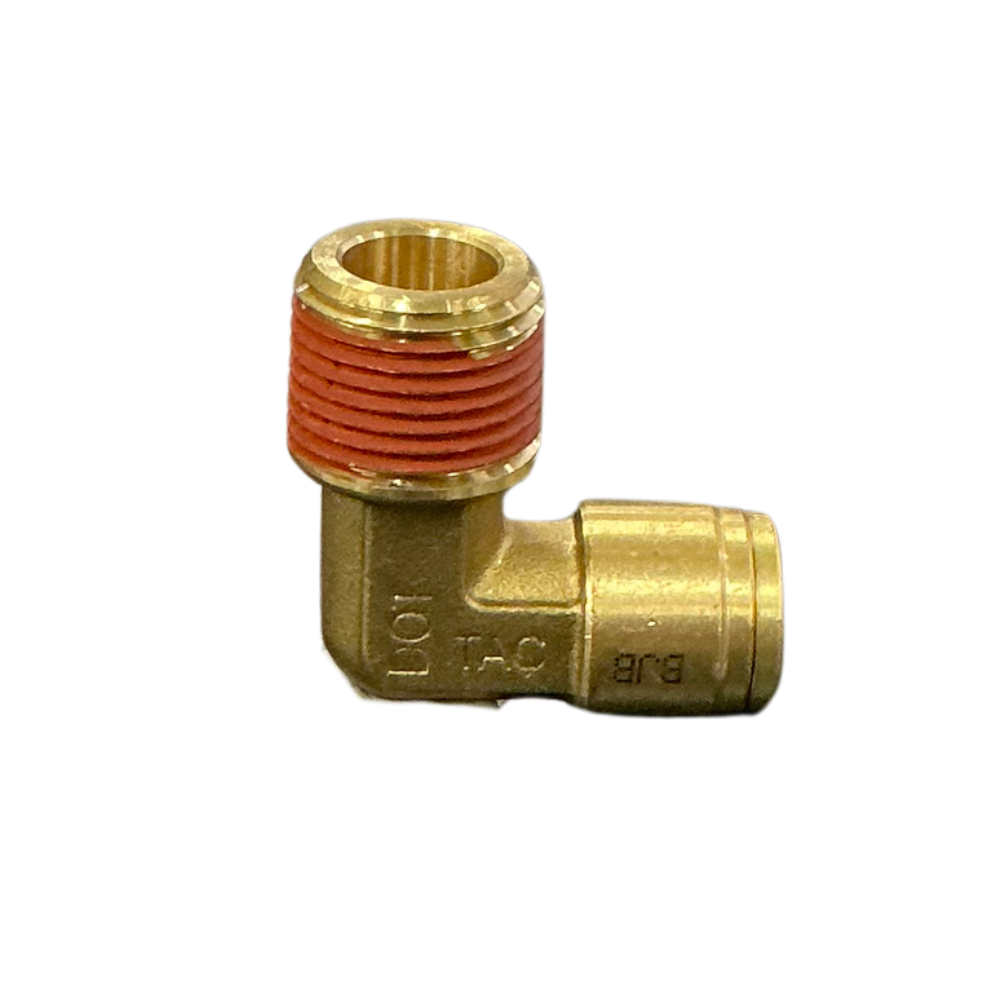

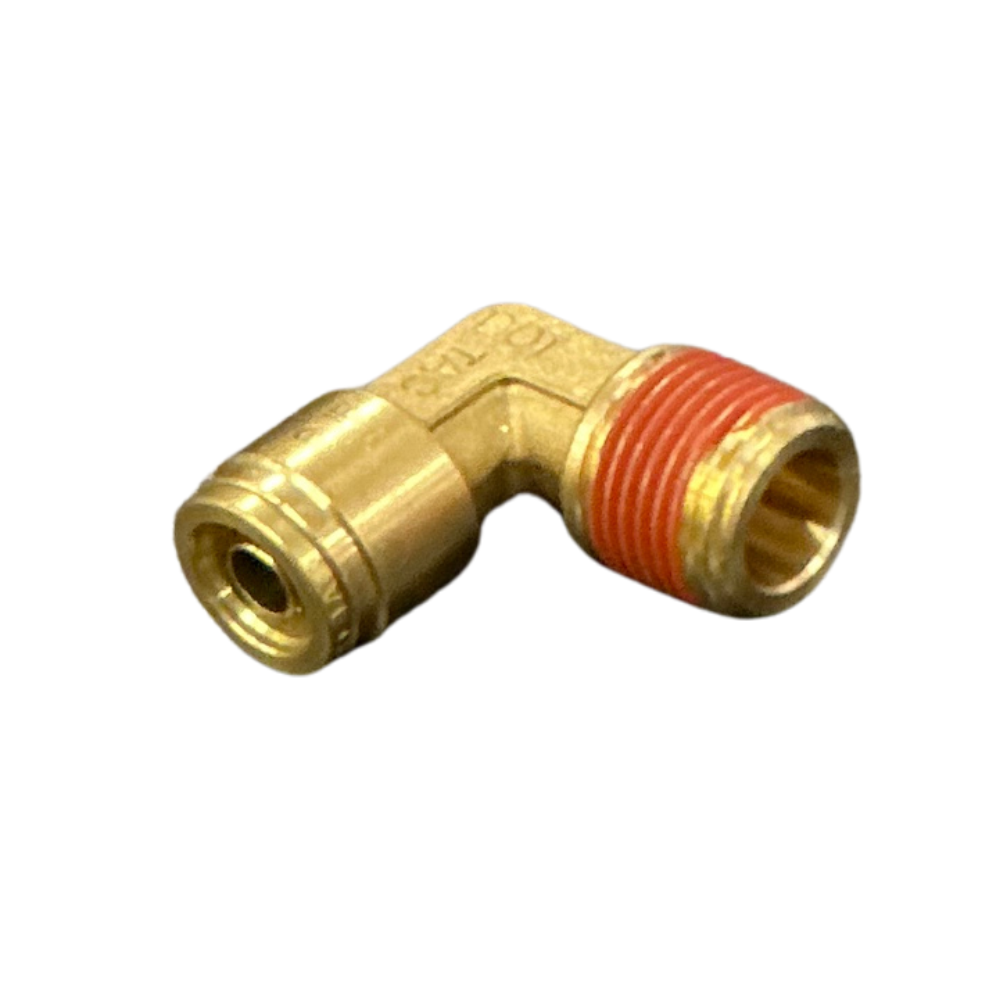

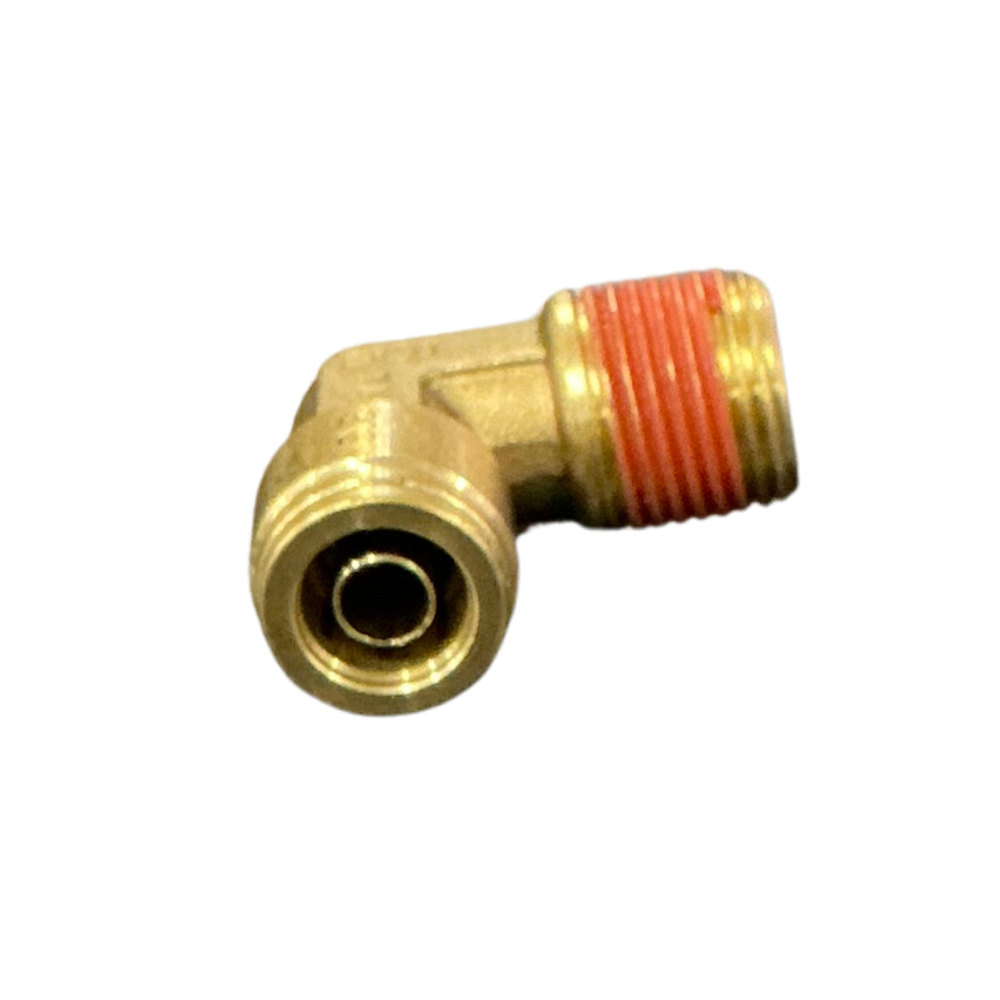

This 3/8 x 3/8 NPT male elbow connects 3/8-inch outside-diameter nylon air brake tubing to a 3/8-inch NPTF female threaded port. Its fixed 90-degree brass body changes the air line direction without requiring a separate elbow adaptor, helping route tubing around valves and nearby chassis components.

Features

• Fixed 90-degree brass elbow construction.
• Push-to-connect fitting for 3/8-inch OD imperial nylon tubing.
• 3/8-inch NPTF male pipe thread.
• Reusable release collet for tube removal.

Specifications and Materials

• Tube connection: 3/8-inch OD (9.525mm).
• Thread connection: 3/8-inch male NPTF.
• Configuration: Fixed, non-swivel 90-degree elbow.
• Material: Brass.
• Connection method: DOT push-to-connect.
• Part number: DQ69DOT0606.

See the GP Truck Products male elbow specifications.

Compatibility and Fitment

The 3/8 x 3/8 NPT male elbow requires imperial 3/8-inch OD tubing and a matching 3/8-inch NPTF female port. Do not substitute 10mm metric tubing or BSP threads. Unlike a swivel elbow, its outlet direction is fixed once installed.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-690606, 35690606, AQ69-DOT-6X6, AQ69DOT6X6, 1869X6X6, 690606, 02469-0606, 024690606, 121026.41, 12102641, 1569-6-6, 156966, 169PMTNS-6-6, 169PMTNS66, 269PPDOT-6C, 269PPDOT6C, 969-6-6PXDOT, 96966PXDOT, DQ69-66, DQ6966, DQ69DOT-6X6, DQ69DOT6X6, NP69-6-6, NP6966, PC14696C, PC1469-6C, PL1315-6C, PL13156C, PL-1315-6C, PP69EEE-DOT, PP69EEEDOT, S269PMTNS-6-6, S269PMTNS66.

Related Parts

Consider these alternatives when matching the existing pneumatic connection.

Compliance and Safety

Depressurise the air circuit before installation. Cut the nylon tube squarely, check for damaged surfaces and insert it fully into the collet. Use the appropriate NPTF thread-sealing procedure, keeping excess compound out of the air passage. Restore pressure and leak-test both connections before returning the system to service.

Trailer Applications

This fitting suits compatible truck and trailer air brake, air suspension and auxiliary pneumatic circuits. Its 90-degree outlet is useful where a 3/8-inch air line connects to a threaded valve, manifold or other pneumatic component with limited straight-line clearance.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies imperial pneumatic fittings for truck and trailer maintenance. When identifying a replacement elbow, confirm the tube outside diameter, NPTF thread size and whether a fixed or swivel connection is required.
