Description

Overview

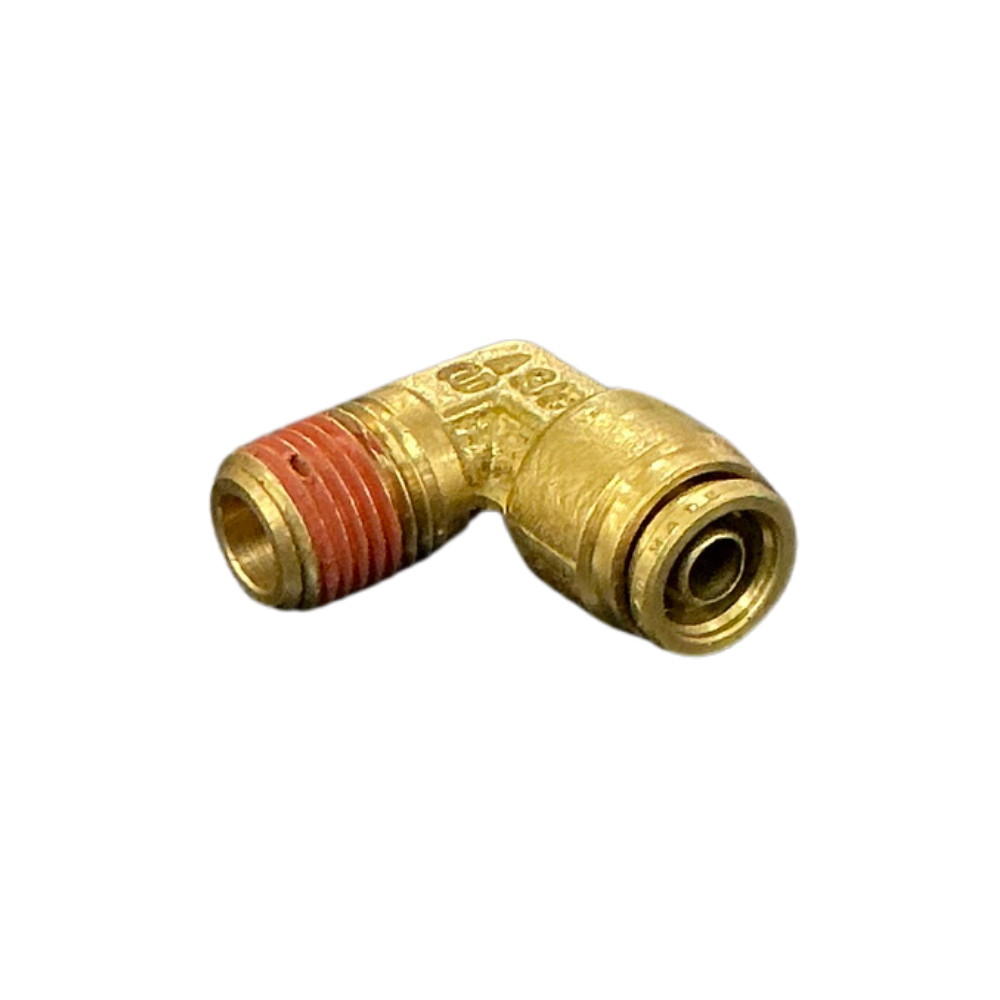

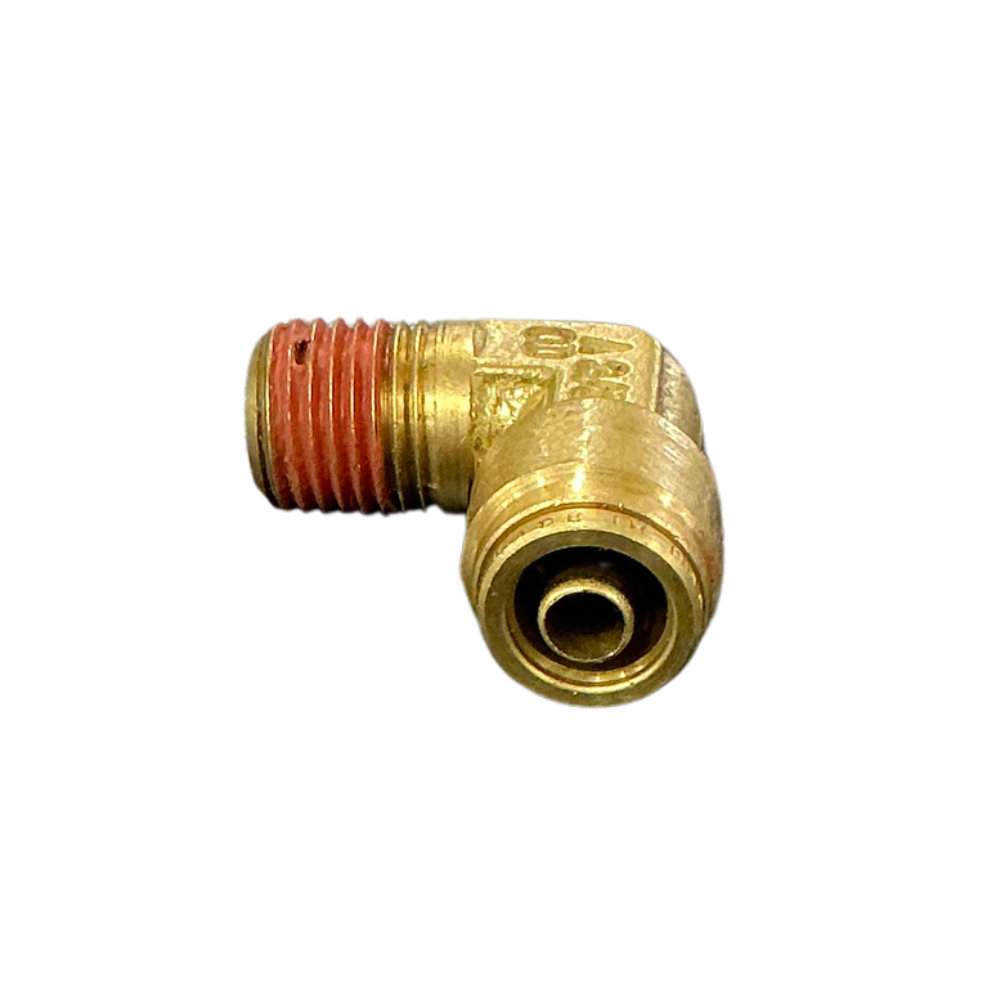

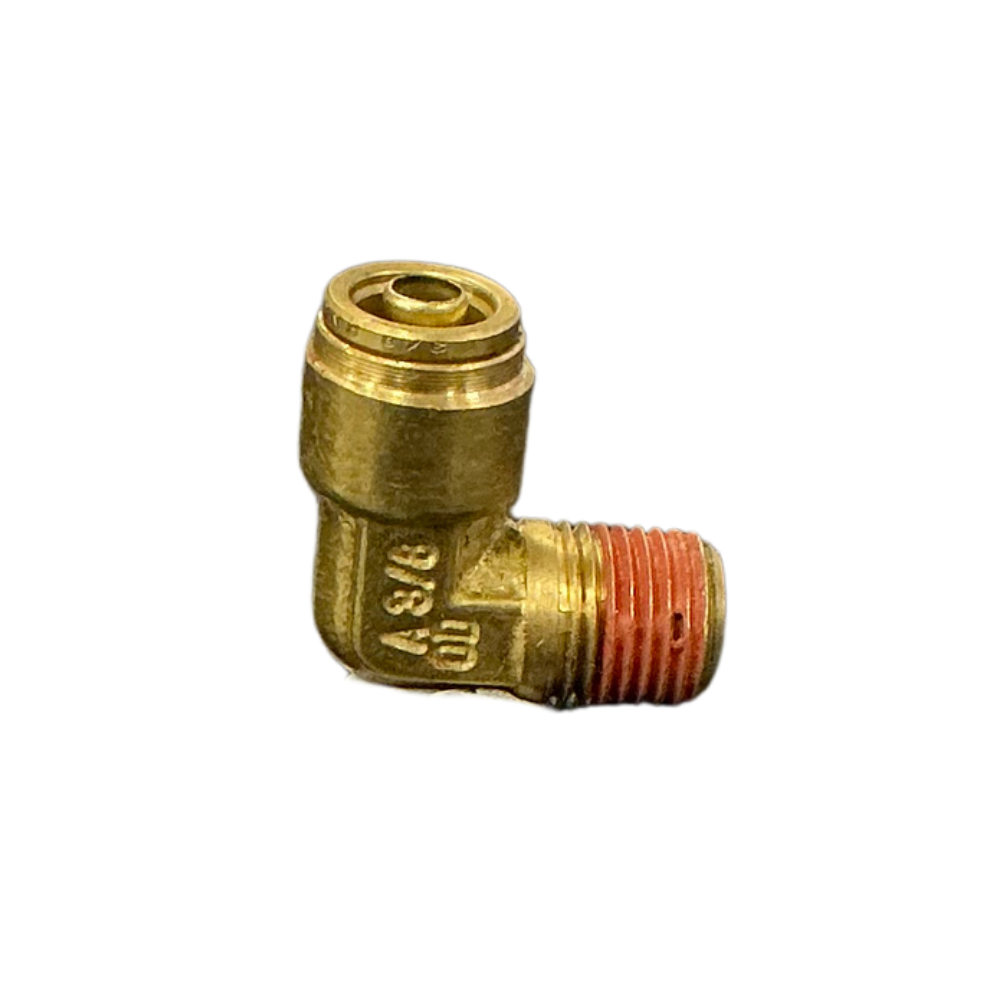

This 3/8 x 1/4 NPT male elbow connects 3/8-inch outside-diameter nylon air brake tubing to a 1/4-inch NPTF female port. Its fixed 90-degree brass body redirects the air line where a straight connector would require an awkward tube bend.

Features

• Fixed 90-degree brass elbow.
• Push-in connection for 3/8-inch imperial nylon tubing.
• 1/4-inch NPTF male thread.
• Reusable tube release collet.

Specifications and Materials

• Tube size: 3/8-inch OD (9.525mm).
• Thread: 1/4-inch male NPTF.
• Configuration: Non-swivel male elbow.
• Material: Brass.
• Connection: DOT push-to-connect.
• Part number: DQ69DOT0604.

See the GP Truck Products male elbow specifications.

Compatibility and Fitment

The 3/8 x 1/4 NPT male elbow requires 3/8-inch OD imperial tube and a matching 1/4-inch NPTF female port. Do not substitute 10mm tubing or a BSP-threaded connection. Because the body is fixed, check the final outlet direction before installation.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-690604, 35690604, AQ69-DOT-6X4, AQ69DOT6X4, 1869X6, 1869X6X4, 690604, 88-005-0604, 880050604, 02469-0604, 024690604, 1569-6-4, 156964, 169PMTNS-6-4, 169PMTNS64, 269PC-6X4, 269PC6X4, 269PPDOT-6B, 269PPDOT6B, 269PPDOT-6B-Y, 269PPDOT6BY, 441628, 69PMTNS-6-4, 69PMTNS64, 87080, 95433112M, 969-64, 96964, 969-6PXDOT, 9696PXDOT, APTC69-6B, APTC696B, D7069DT6B, D7069DT-6B, DQ69-64, DQ6964, DQ69DOT-6X4, DQ69DOT6X4, NP69-6-4, NP6964, PC14696B, PC1469-6B, PL1315-6B, PL13156B, PL-1315-6B, PP69EE-DOT, PP69EEDOT, S269PMTNS-6-4, S269PMTNS64.

Related Parts

Check these alternative connection sizes and configurations before ordering.

Compliance and Safety

Depressurise the circuit before installation. Cut the tube squarely and insert it fully into the collet. Follow the appropriate NPTF thread-sealing procedure without allowing compound into the air passage. Pressurise and leak-test both connections.

Trailer Applications

This elbow suits compatible truck and trailer air brake, suspension and auxiliary pneumatic circuits where a 3/8-inch line connects to a 1/4-inch threaded valve or manifold port.
