Description

Overview

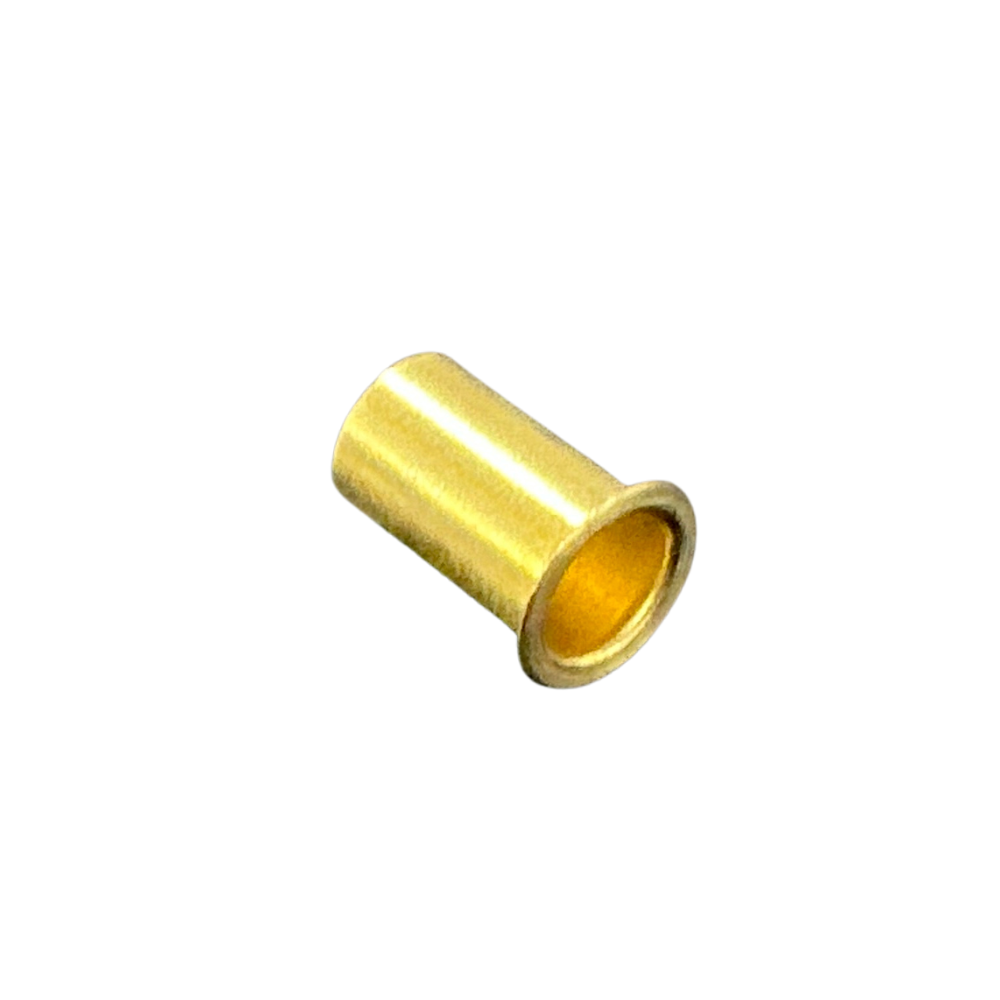

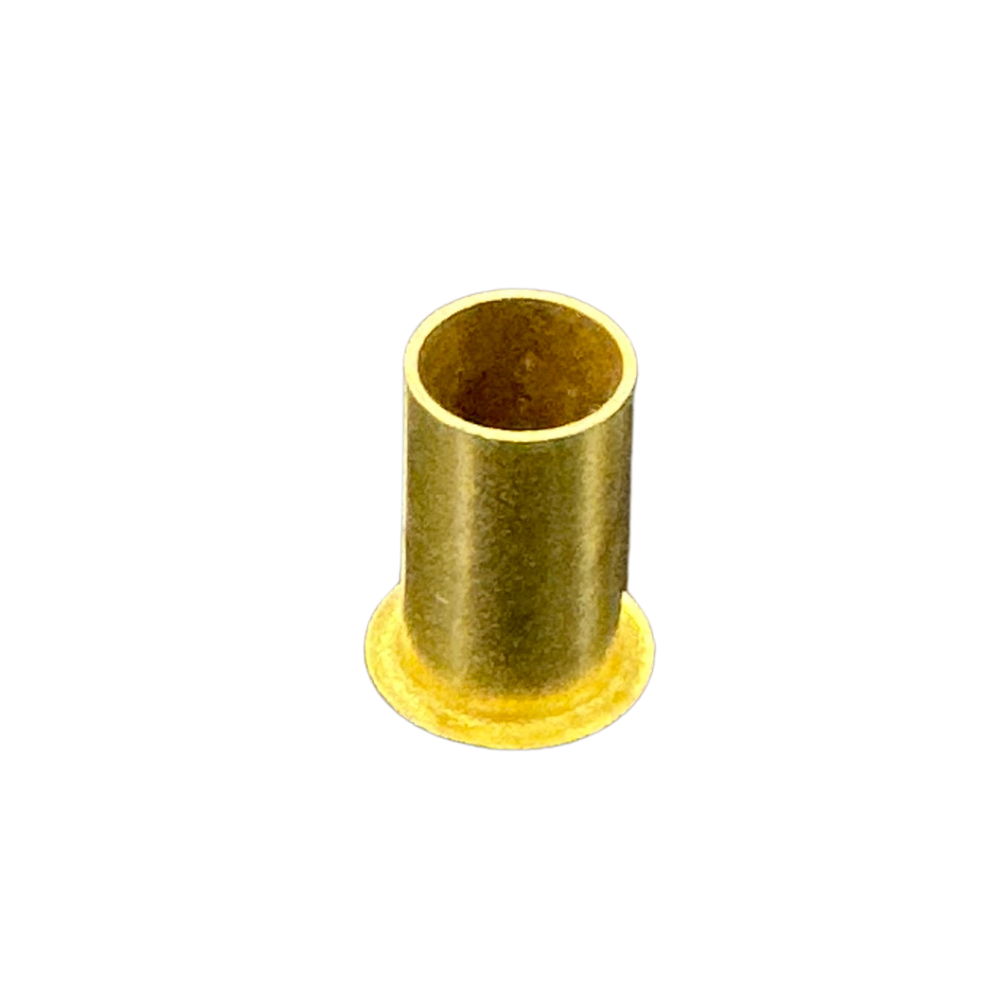

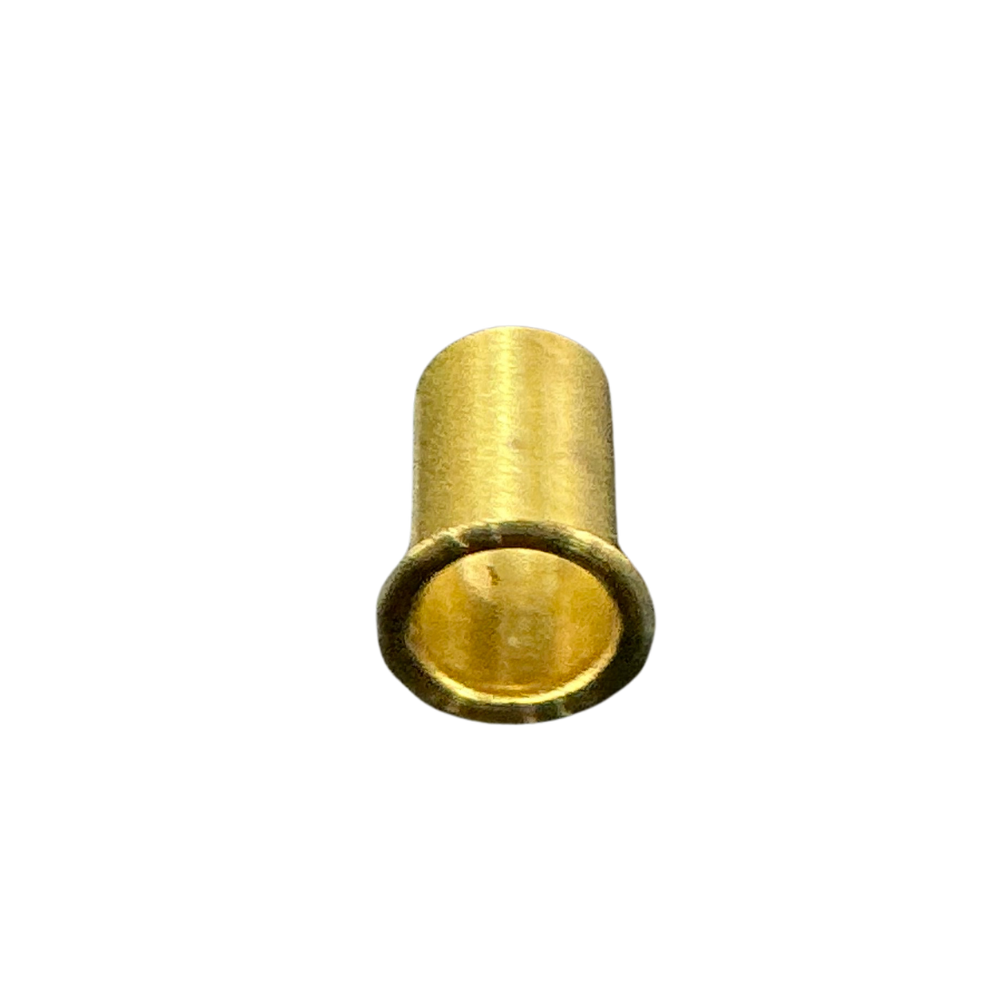

The 8mm European Air Brake Tube Insert supports the inside of compatible nylon air line where a compression fitting grips the outside of the tube. Its cylindrical body slides into the tube bore, while the flanged end rests against the cut tube face to control insertion depth.

This internal support helps prevent soft nylon tube from collapsing, distorting or pulling inward as the matching nut and cutting ring are tightened.

Features

• Matches compatible 8mm outside-diameter air line
• Internal support sleeve for nylon pneumatic tube
• Flanged end controls position against the tube face
• Brass construction with a thin-wall cylindrical body

Specifications and Materials

Product type: internal tube support insert.

Nominal tube size: 8mm outside diameter.

Material: brass.

Configuration: hollow cylindrical sleeve with retaining flange.

This item contains one tube insert only. The cutting ring, compression nut and fitting body are separate components.

Part number: AB0203.

See the Parker brass tube support technical page

Compatibility and Fitment

Confirm that the air line measures 8mm across its outside diameter and that the insert body matches the tube’s internal bore. The most likely ordering mistake is choosing solely by outside diameter, as 8mm tube can be produced with different wall thicknesses and internal diameters.

Cut the tube square and remove burrs before pressing the insert fully into the bore. The flange should sit against the end of the tube without splitting, stretching or excessively loosening the tube wall. Fit the matching nut and cutting ring only after the insert is seated correctly.

Related Parts

Check the related service part below against the fitting assembly before ordering.

Compliance and Safety

Depressurise the pneumatic circuit before dismantling the connection. Replace any insert that is cracked, crushed, heavily marked or loose inside the tube. After assembly, restore air pressure gradually and inspect the joint for leakage, tube movement and distortion around the compression point.

Trailer Applications

Trailer workshops use this insert when assembling or repairing compatible 8mm nylon air lines in air brake plumbing, air suspension circuits and auxiliary pneumatic controls. It is particularly important where the external cutting ring requires firm internal support to grip the tube without collapsing it.

Why Choose ICS Trailers

Tube inserts must match both the outside diameter and internal bore of the air line. Send a photo of the dismantled fitting and the tube measurements if the original components are difficult to identify.
