Description

Overview

The 12mm European Cut Ring Olive secures and seals 12mm outside-diameter tube in a compatible European compression fitting. Tightening the tube nut drives the ring onto the fitting cone, where its shaped edge grips the tube. This replacement part is supplied as the ring only.

Features

• Matches 12mm outside-diameter pneumatic tube
• European cut-ring compression profile
• Stamped 12 size marking
• Single replacement ring

Specifications and Materials

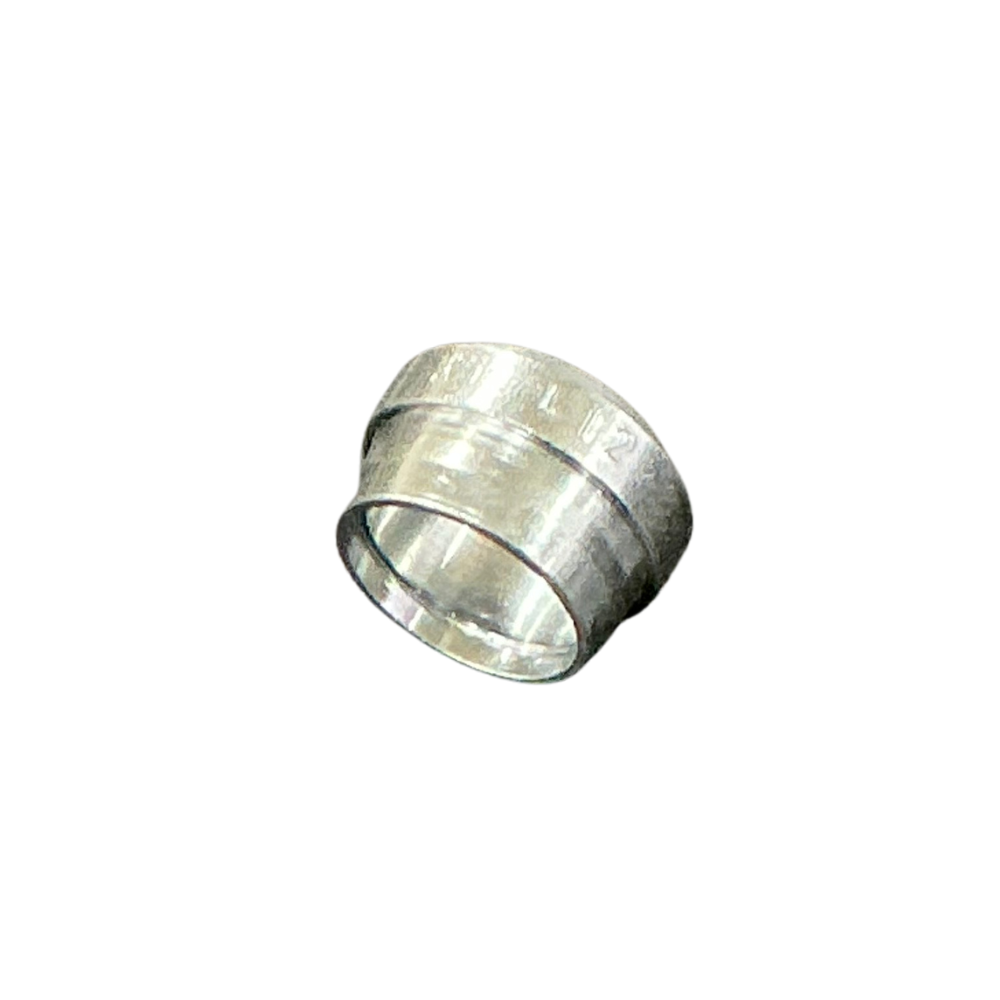

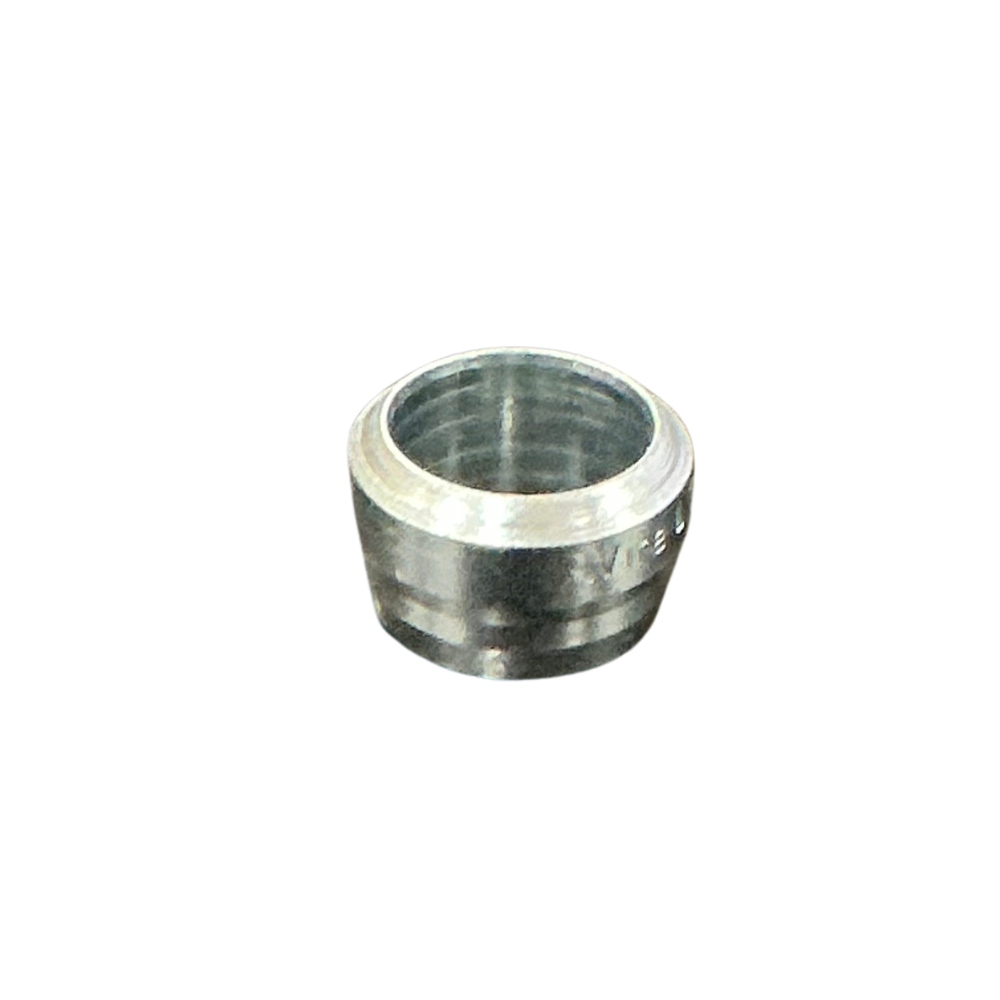

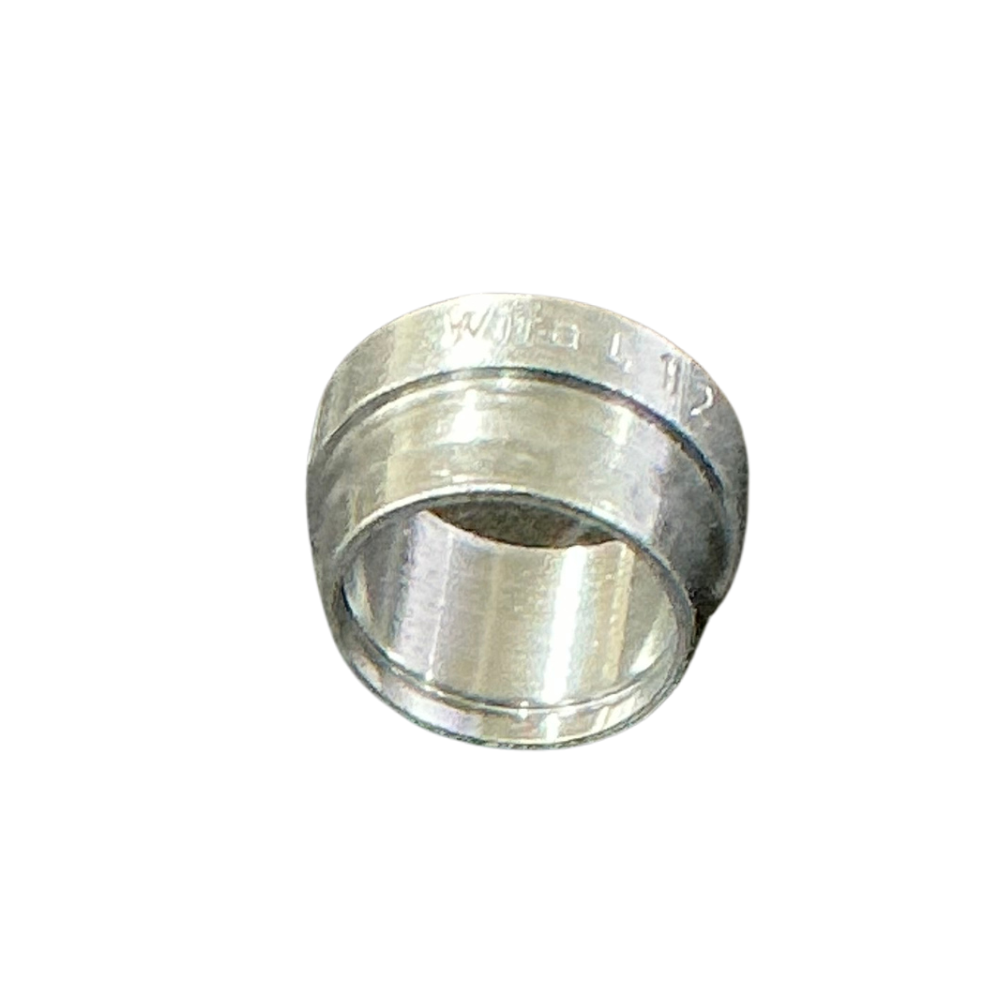

The ring has a stepped cylindrical form with a bevelled cutting edge and external groove. Its 12mm nominal size refers to tube outside diameter. The compression nut, fitting body and any required tube insert are separate components.

Part number: AB0202G.

Review the official BPW pneumatic installation guide

Compatibility and Fitment

Confirm the tube measures 12mm across its outside diameter, then compare the original ring profile, fitting cone and nut. The main mismatch risk is choosing another 12mm compression system with a different cutting edge, seating angle or nut arrangement. This ring is not a push-in collet or conventional soft brass olive.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 02.5683.58.00, 0256835800, 893 050 144 4, 8930501444

Compliance and Safety

Depressurise the air circuit before dismantling the joint. Use a new ring because a previously compressed cutting ring may not seat correctly again. Cut the tube square, remove burrs and damaged material, insert it fully, then tighten the nut to the fitting manufacturer’s procedure. Restore pressure gradually and check for leakage or tube movement.

Trailer Applications

Workshops fit the 12mm European Cut Ring Olive when repairing compatible truck and trailer air brake lines, air suspension plumbing and auxiliary pneumatic circuits. It suits jobs where the fitting body and nut remain serviceable but the gripping and sealing ring needs replacement.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air-line fittings and compression components for trailer repairs. If the original ring is difficult to identify, send a clear photo with the measured tube outside diameter and nut details.
