Description

Overview

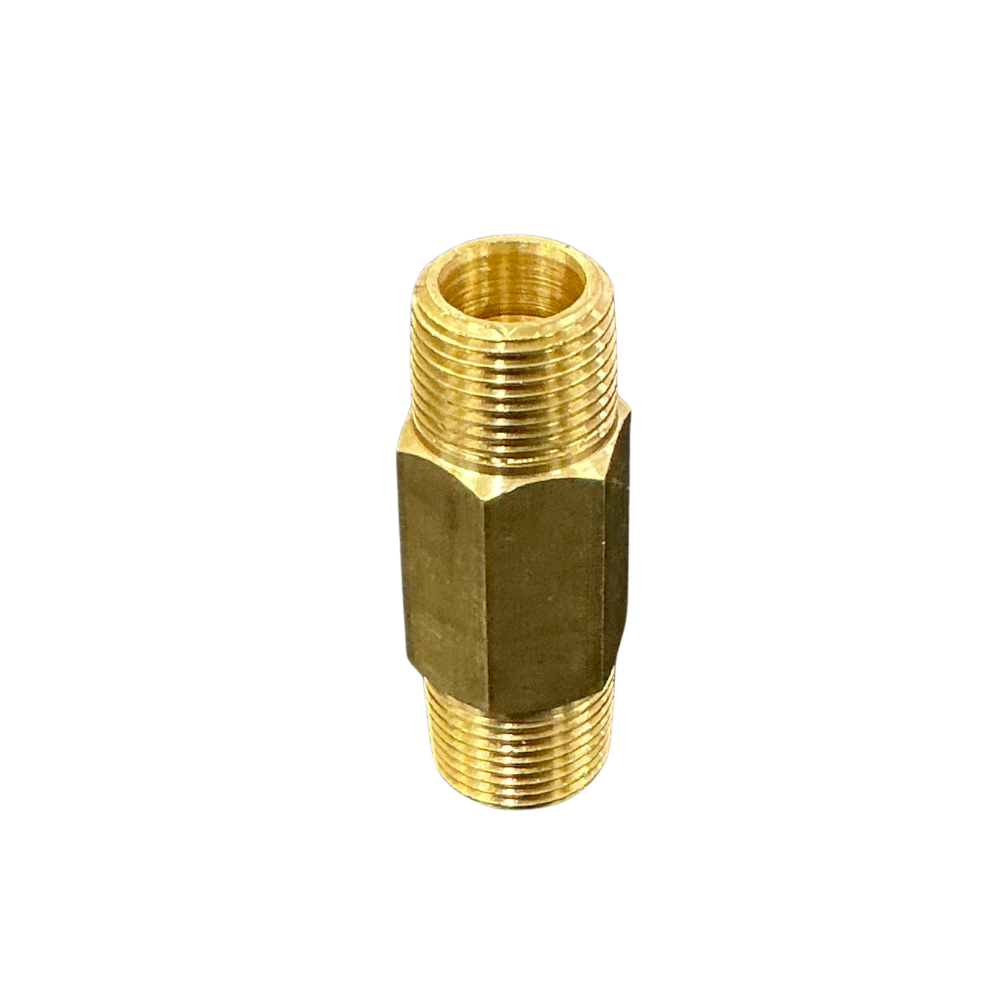

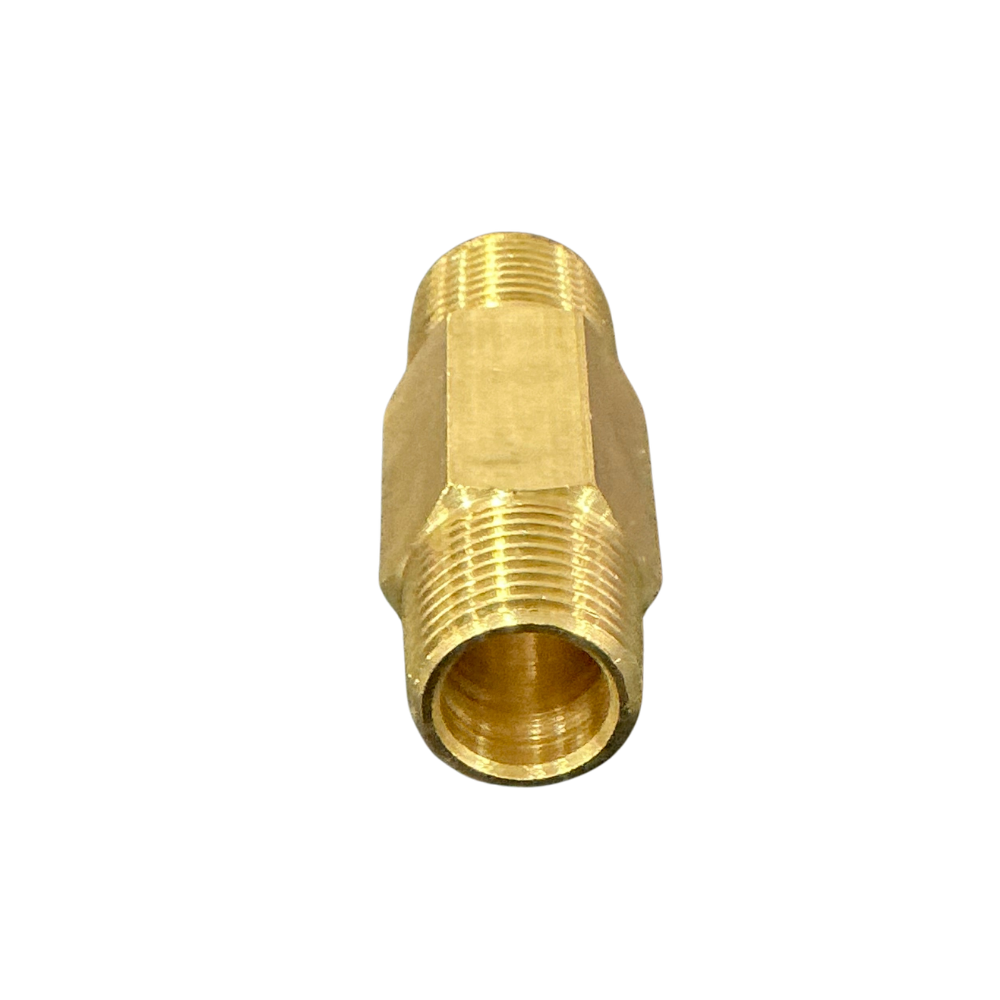

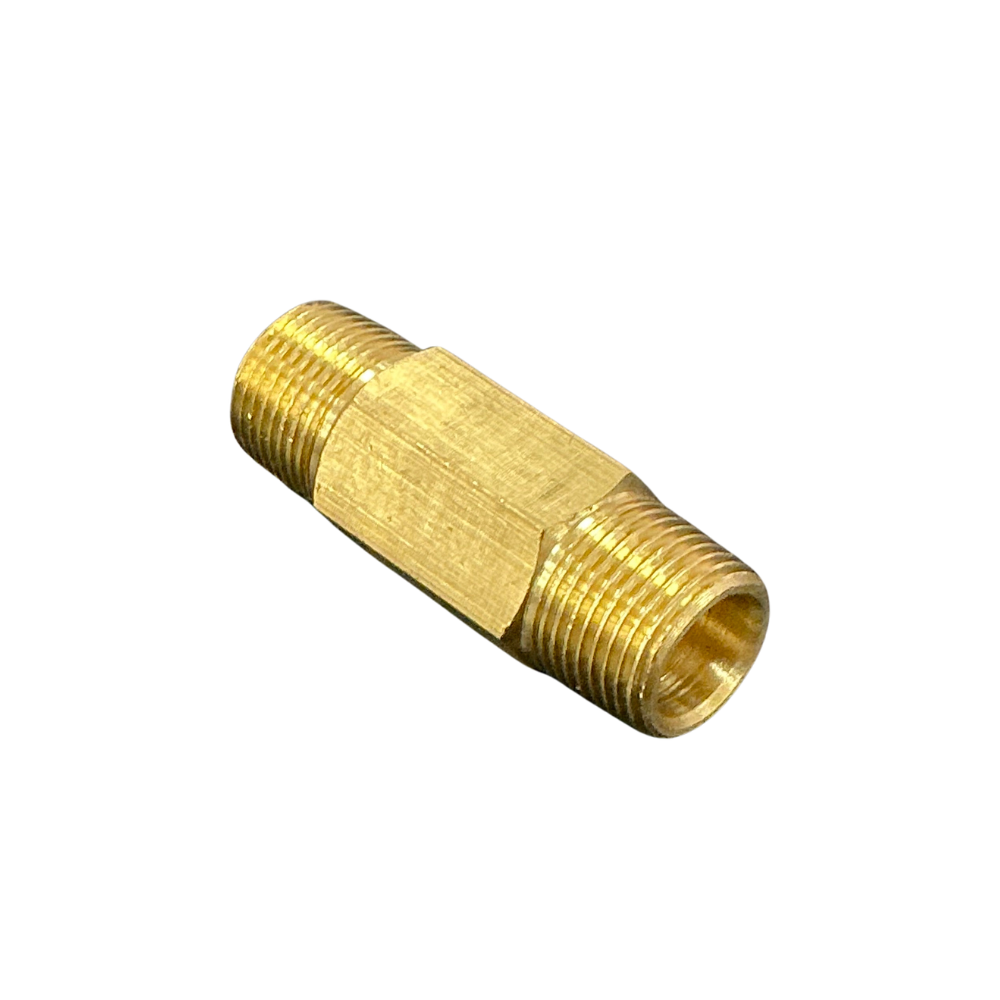

The 3/8 BSP x 2″ long hex nipple joins two female 3/8 BSP ports while adding extra spacing between them. Male threads at both ends create a straight-through connection, and the extended central hex section gives a spanner a solid grip during assembly or removal.

Features

• Matching 3/8 BSP male connections at both ends.
• 2″ overall length provides more separation than a standard short nipple.
• Central hexagonal body supports controlled tightening with a spanner.
• Brass construction suits compatible pneumatic and fluid-line fittings.

Specifications and Materials

This straight adaptor measures 2″ from end to end and carries the same 3/8 BSP connection on each side. The open internal passage allows flow between the two mating components, while the long hex body keeps the tool contact area clear of the threaded ends.

Part number: 0128-0632.

The official brass fittings catalogue covers the No.28 long hex nipple family

Compatibility and Fitment

Confirm both female ports use 3/8 BSP before ordering. The main mismatch risk is confusing BSP with 3/8 NPT because the nominal size appears similar, but the thread forms do not interchange correctly. Also compare the required installed spacing, as the 3/8 BSP x 2″ long hex nipple intentionally places more distance between connected fittings than a short hex nipple.

Start each thread by hand to prevent cross-threading. Then use the centre hex for tightening rather than gripping the threaded ends. Apply a sealant suitable for the system medium and the mating thread design.

Compliance and Safety

Depressurise the circuit before loosening the connection. Inspect both female threads for damage, contamination or old sealant, because poor thread engagement can cause leakage or split a mating component. After installation, restore pressure gradually and test both threaded joints.

Trailer Applications

Workshops use this extended nipple between female-threaded valves, tees, elbows, manifolds and other fittings when a straight connection needs additional reach. It can also move a connected component away from surrounding brackets or bodywork, provided the ports, pressure requirements and working medium suit the brass fitting.

Why Choose ICS Trailers

ICS Trailers supplies threaded brass adaptors and air-line fittings for trailer pneumatic repairs. If the existing connection is uncertain, send a photo and confirm the thread type, nominal size and required overall length before ordering.
