Description

Overview

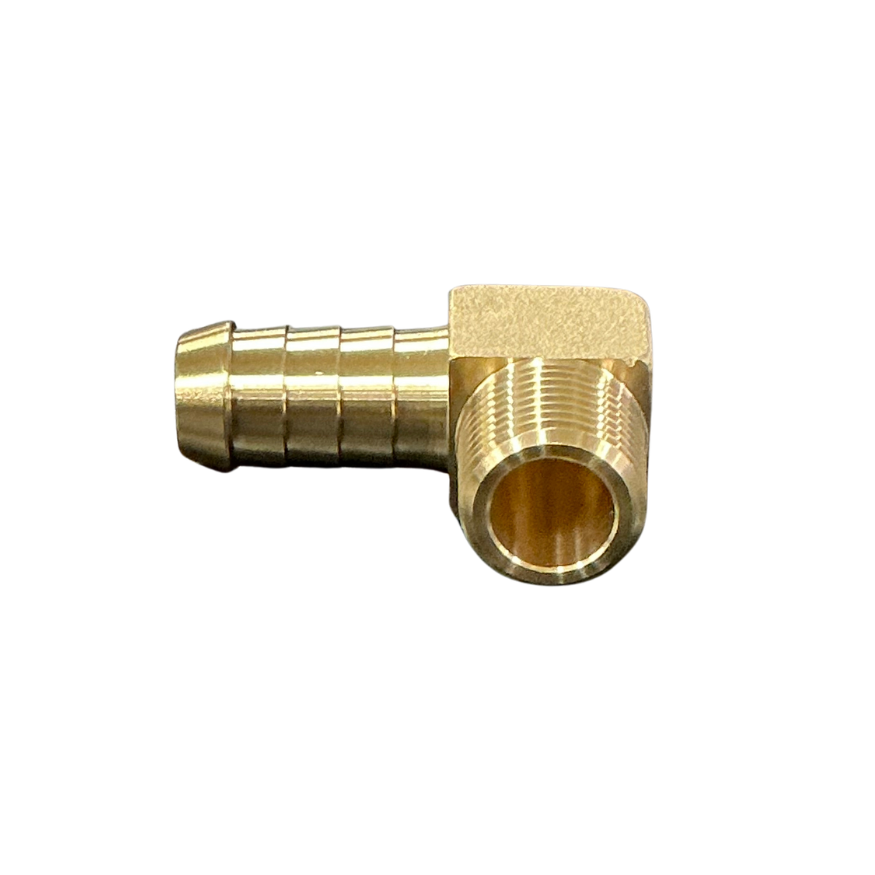

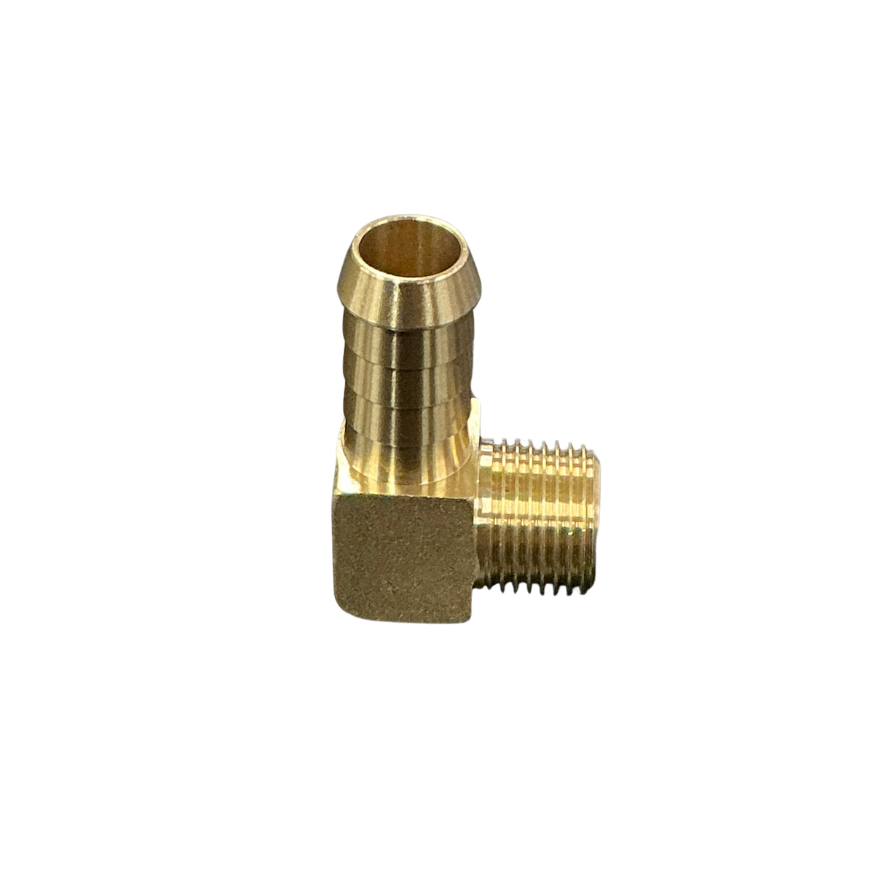

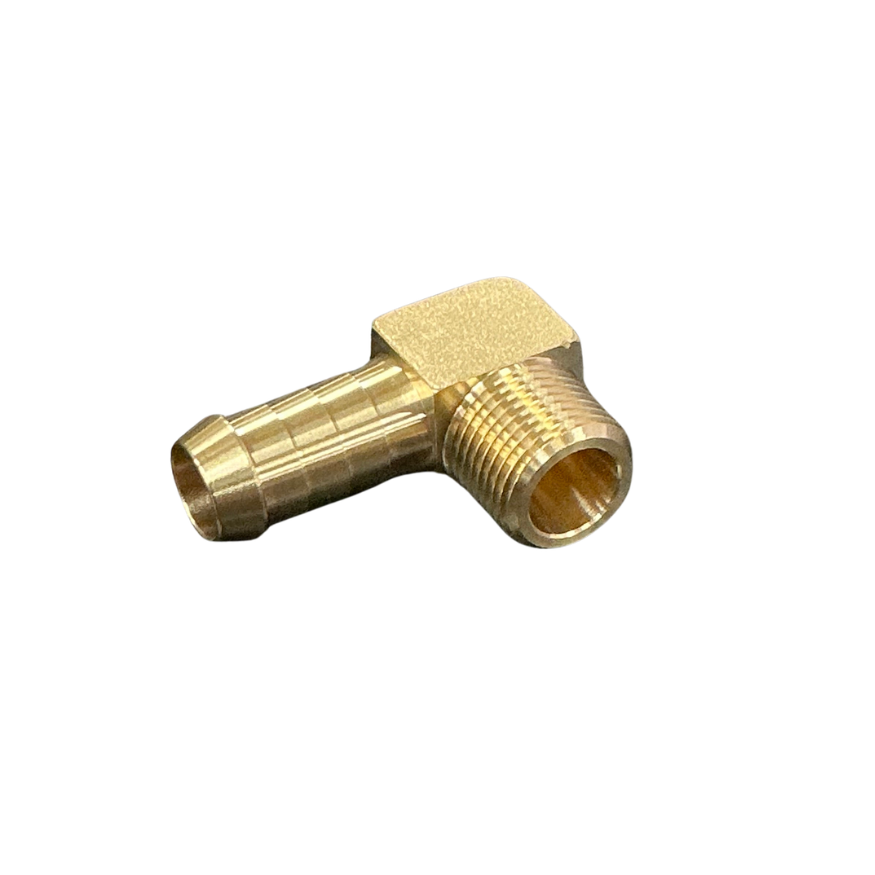

The 1/2 x 3/8 NPT hose barb elbow turns a flexible hose connection through 90 degrees while joining 1/2″ internal-diameter hose to a female 3/8 NPT port. Its brass body places the hose tail and male thread at right angles, helping route hose away from nearby components where a straight fitting would create a sharp bend or require extra clearance.

Features

• 90-degree body changes hose direction at the threaded connection
• 1/2″ ribbed barb is selected by hose internal diameter
• 3/8 NPT male thread suits a matching female port
• Integral wrench flats support controlled installation

Specifications and Materials

Configuration: 90-degree male hose barb elbow.

Hose connection: 1/2″ internal-diameter hose.

Thread connection: 3/8 NPT male.

Material: brass.

Part number: 06-206-0806.

See the Parker brass hose barb fitting guide for general barb and clamp guidance

Compatibility and Fitment

Check both connection standards separately before ordering. The barb size refers to the hose bore, while the threaded end requires a 3/8 NPT female connection. Do not select the barb from the hose outside diameter, and do not force it into a BSP port. The 1/2 x 3/8 NPT hose barb elbow should also be checked for body clearance because its fixed 90-degree orientation determines where the hose exits after tightening.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. GP-579-0806, GP5790806

Compliance and Safety

Release pressure and drain the circuit before removing the existing fitting. Apply compatible sealant to the male NPT thread while keeping excess material away from the bore. Tighten through the square body, then push the hose fully over the ribbed tail and secure it with the clamp or crimped ferrule specified for the hose. Restore pressure gradually and inspect the threaded joint and hose connection for leaks or movement.

Trailer Applications

This elbow suits truck, trailer and workshop pneumatic layouts where 1/2″ flexible hose must turn immediately beside a 3/8 NPT valve, tank, manifold or accessory port. The right-angle body can reduce hose strain in confined installations, although the hose material, retaining method and system pressure must suit the complete circuit.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies hose barbs, clamps, rubber hose and threaded air fittings for heavy vehicle pneumatic repairs. When replacing an unmarked elbow, compare the hose bore, thread type, thread size and required outlet direction before ordering.
