Description

Overview

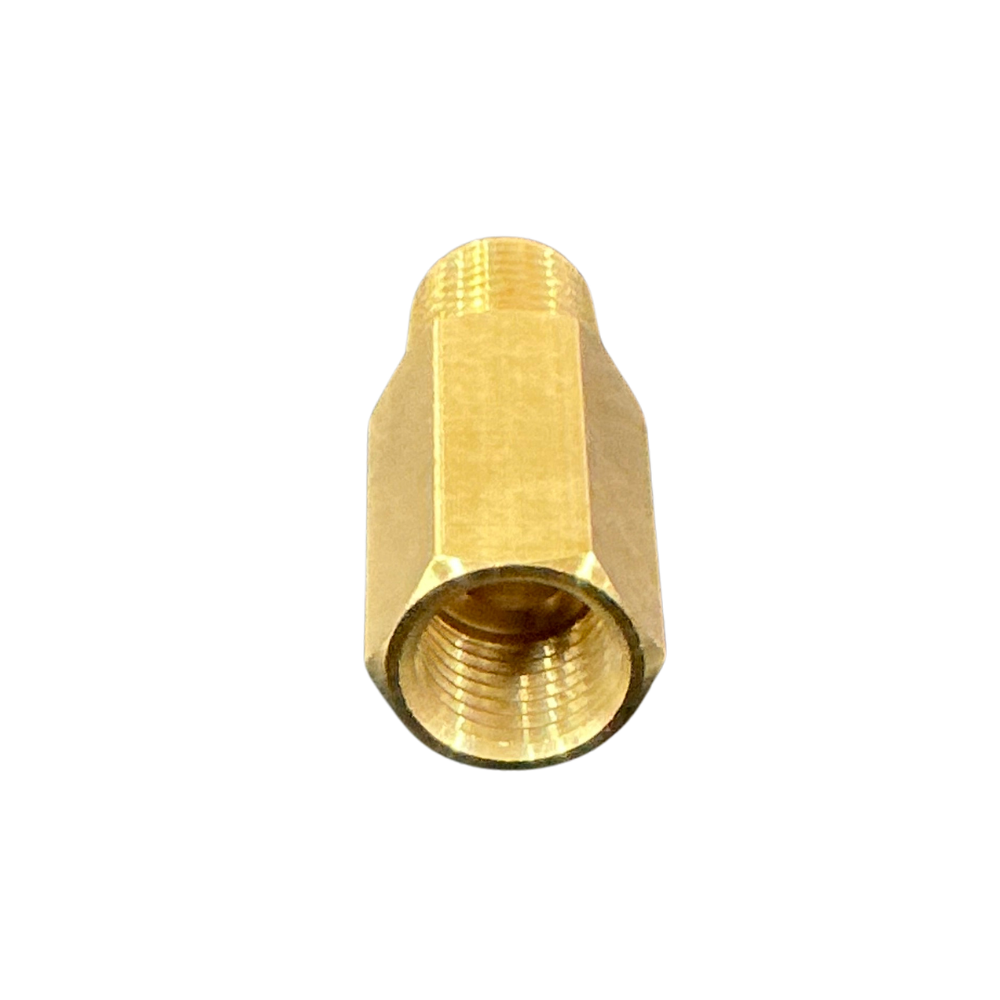

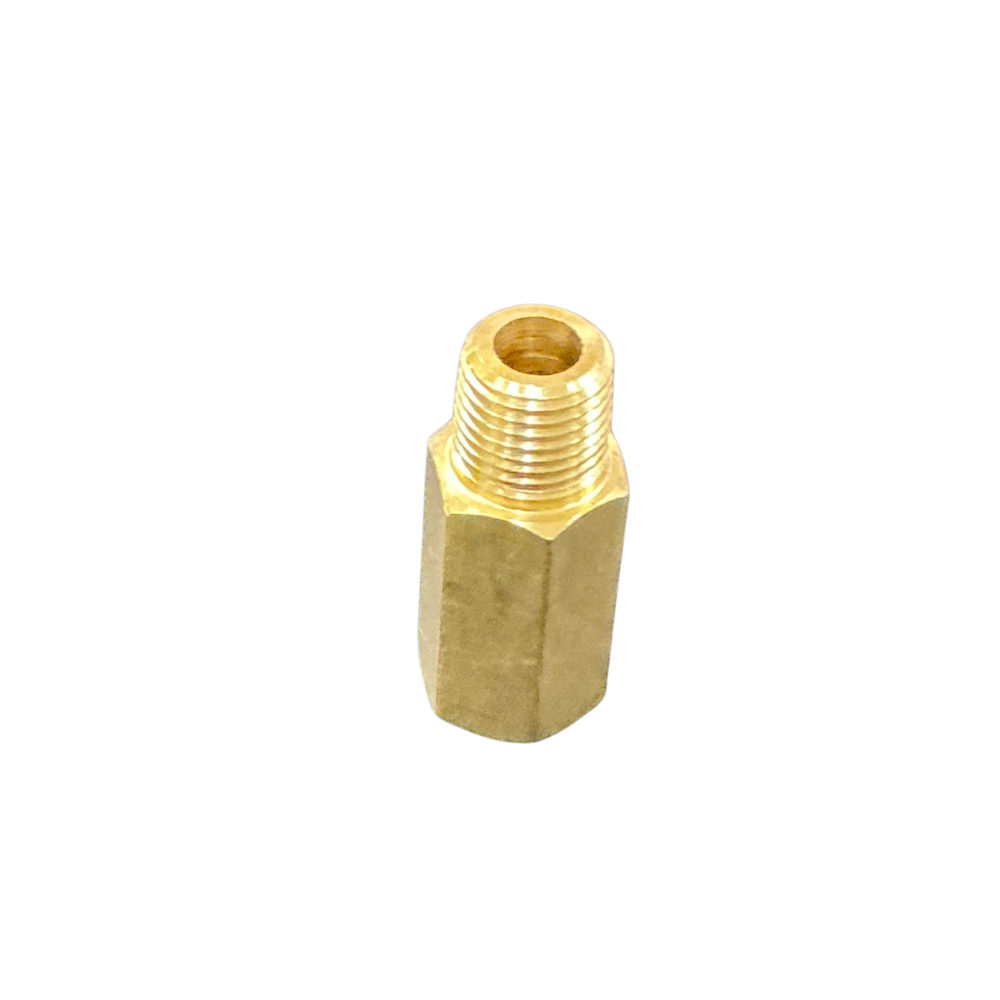

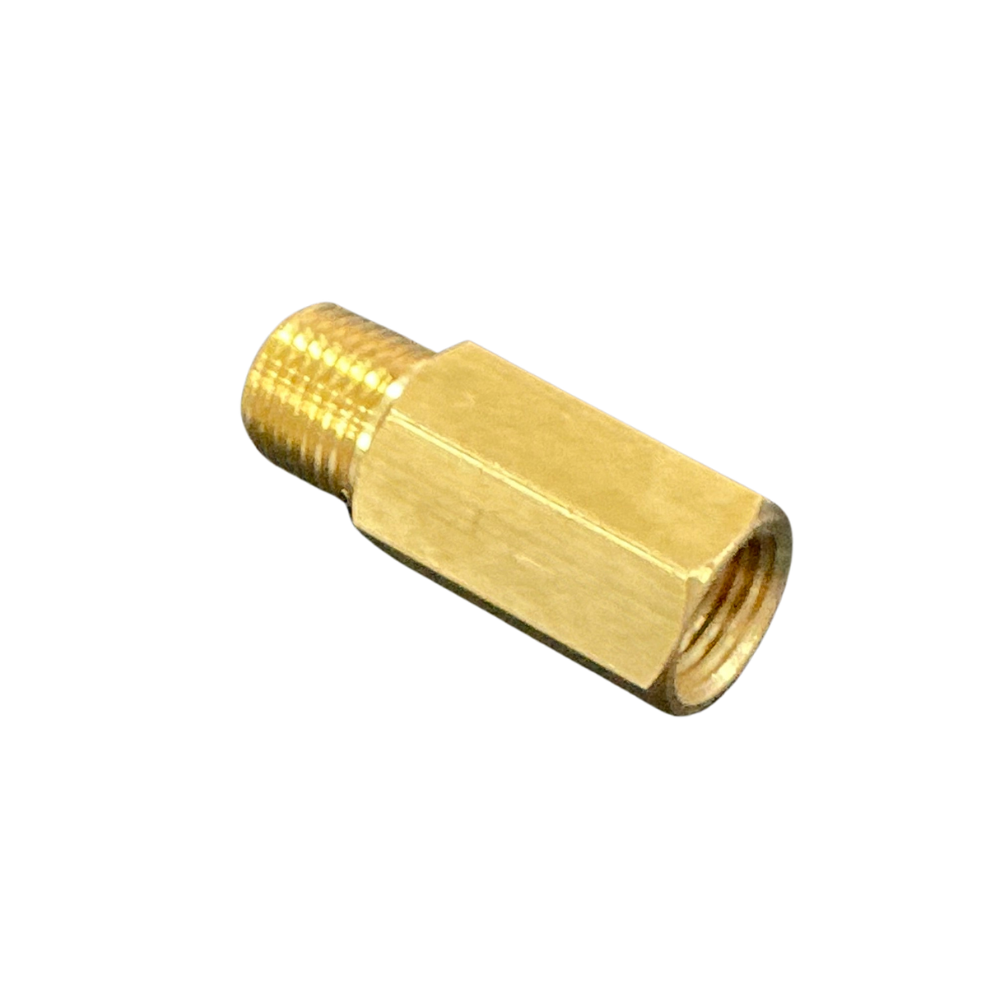

The 1/4 BSP x 40mm long M&F adaptor extends a threaded connection while keeping the same nominal port size. Its 1/4 BSP female end accepts a matching male fitting, while the 1/4 BSPT male end screws into a female port. The extended body creates clearance between closely positioned pneumatic components.

Features

• 1/4 BSP female connection at one end.
• 1/4 BSPT male connection at the opposite end.
• 40mm overall length adds straight-line spacing between components.
• Brass body includes a long hex section for spanner access.

Specifications and Materials

This straight brass adaptor carries an open internal passage and matching 1/4-inch nominal connections. The female end receives a male BSP fitting, while the tapered male thread tightens into the mating port. Its central hex lets the installer apply a spanner without gripping either threaded end.

Part number: 0172L-05040.

See the manufacturer brass fittings guide

Compatibility and Fitment

Confirm the components require a 1/4 BSP female-to-male extension and check that 40mm provides the required spacing. The main ordering risks are choosing a short adaptor, reversing the male and female ends, or substituting 1/4 NPT. Although NPT has the same nominal size, its thread form and pitch do not provide the correct BSP connection.

The 1/4 BSP x 40mm long M&F adaptor should start by hand on both sides without binding. Apply suitable thread sealant to the male tapered connection, keep sealant out of the passage, and use the centre hex for final tightening.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 0172L-04040, 0172L04040, 01-72L04040

Compliance and Safety

Depressurise the circuit before removing or installing the adaptor. Inspect both mating threads for damage, old sealant and contamination. Then tighten without placing excessive leverage on the connected valve or manifold. Restore pressure gradually and leak-test both ends before returning the system to service.

Trailer Applications

Trailer workshops use this extended adaptor to move gauges, pressure switches, valves and other threaded fittings away from crowded brackets or adjacent components. It also provides extra spanner clearance when a standard adaptor sits too close to the mounting port.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies threaded brass adaptors, nipples, tees and air-line fittings for trailer pneumatic repairs. When replacing an extension, confirm the old thread type, male and female orientation, and total length before ordering.
