Description

Overview

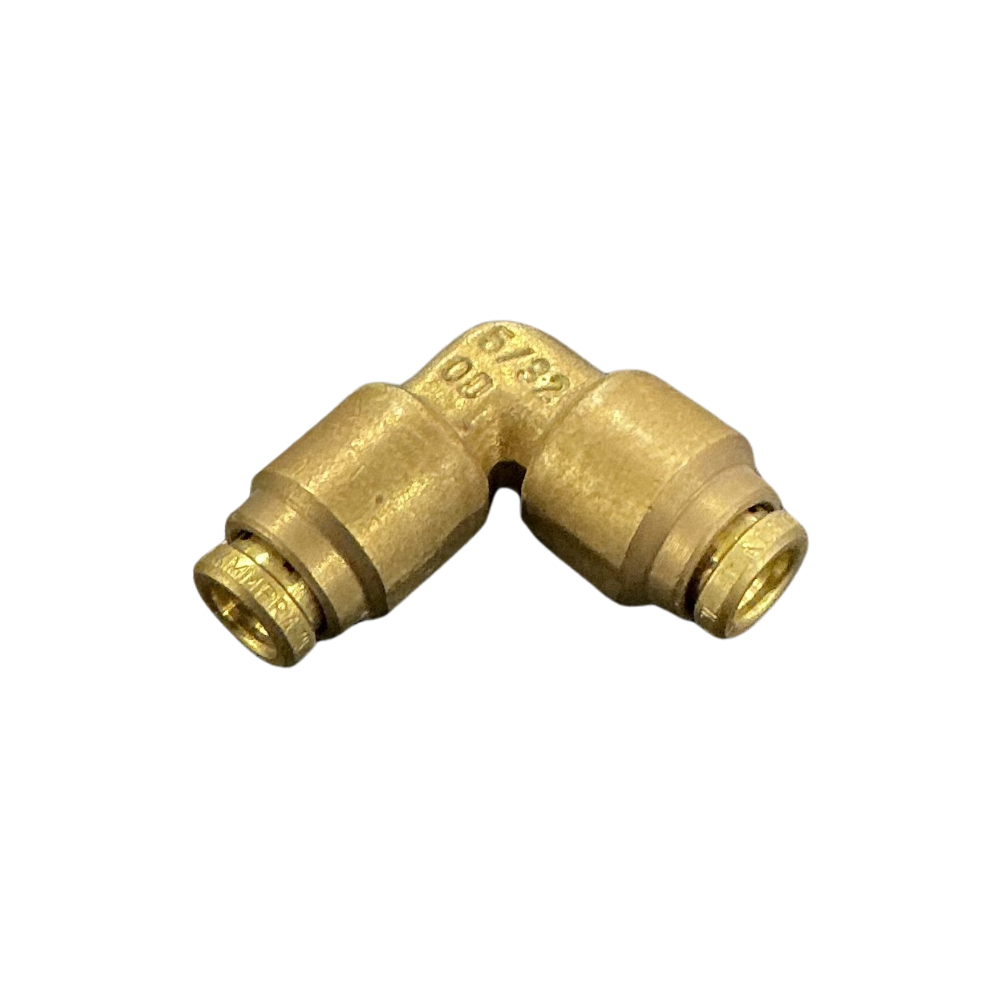

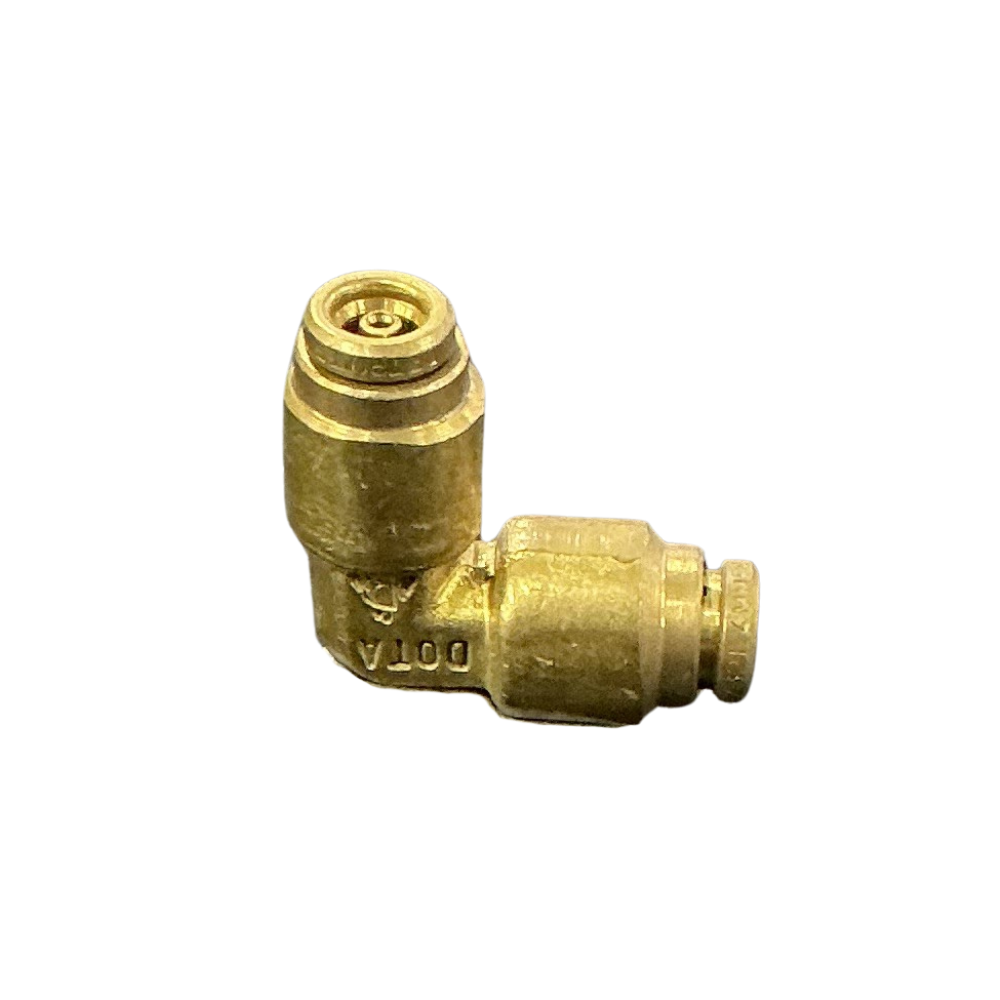

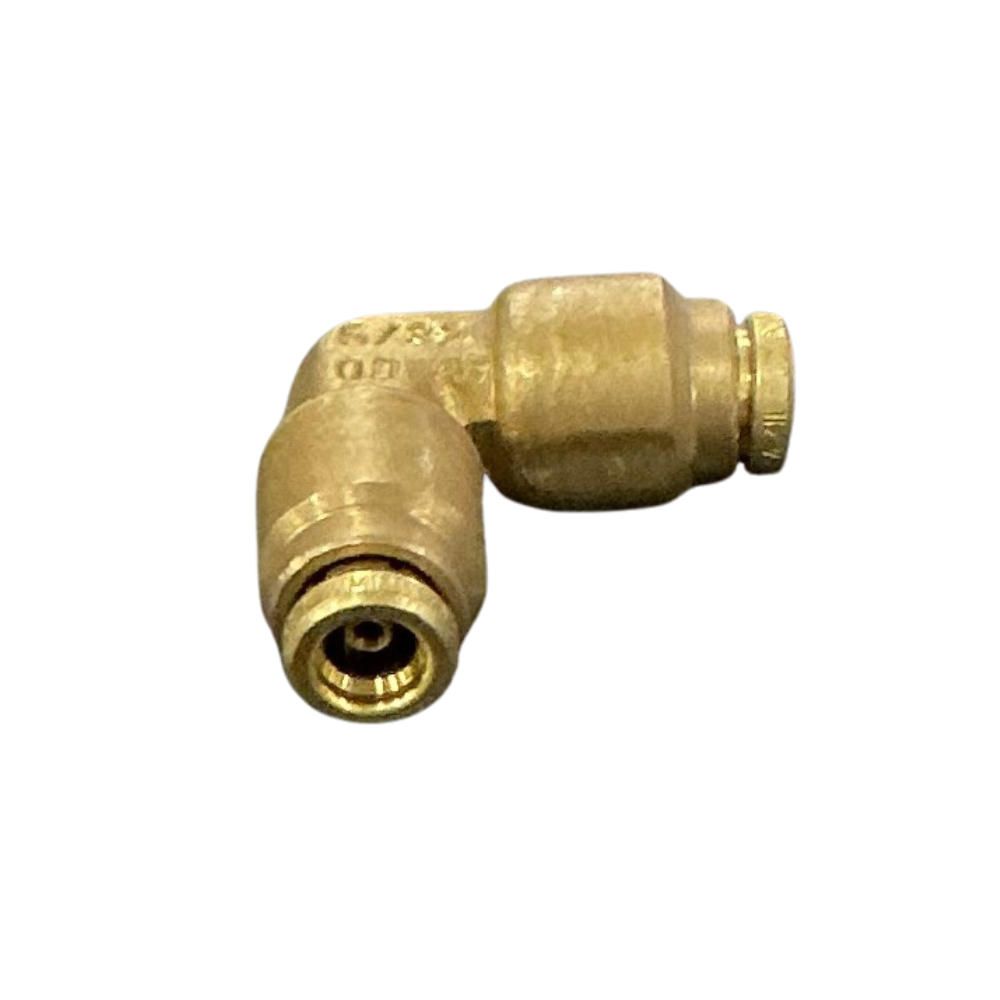

The 3/8-inch air brake union elbow joins two 3/8-inch OD nylon air lines through a fixed 90-degree turn. Both ports are push-to-connect, so the tube size stays unchanged through the elbow while the line direction changes cleanly in a confined space. The fitting is reusable, and depressing the collet releases the tube for servicing.

Features

• Two 3/8-inch push-to-connect tube ports
• Fixed 90-degree union elbow configuration
• Brass body for pneumatic air-line service
• Reusable collets allow tube removal and refitting

Specifications and Materials

This imperial union elbow accepts 3/8-inch OD nylon tube at both ends and contains no threaded pipe connection. Its compact tube-to-tube layout suits a right-angle change in direction without adding a separate adaptor.

Part number: DQ65DOT06.

See the manufacturer union elbow technical page

Compatibility and Fitment

Match both connections to 3/8-inch OD tube before ordering. Do not confuse this union elbow with a male elbow, which has a threaded connection on one side. Cut nylon tube square, remove damaged or flattened sections, then push each tube fully into its collet.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 35-6506, 356506, AQ65-DOT-6, AQ65DOT6, 1865X6, 3102 60 00DOT, 31026000DOT, 165PTC-6, 165PTC6, PL1365-6, PL13656, S265PMT-6, S265PMT6, 94451106M

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Depressurise the pneumatic circuit before removing a tube. After refitting, restore pressure and leak-check both push-in connections. Also inspect the tube where it enters each collet because scoring, poor cuts or incorrect wall thickness can compromise sealing.

Trailer Applications

The 3/8-inch air brake union elbow suits compatible truck and trailer air-brake, air-suspension and auxiliary pneumatic circuits where a 3/8-inch line needs a compact right-angle change without reducing tube size.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies pneumatic fittings for trailer repairs where tube size and connection style matter. If the old fitting is difficult to identify, compare the tube OD and confirm that both ends are push-to-connect before ordering.
