Bulkhead Fitting 1/4 NPT Female x 1/2 NPT Male
Bulkhead Fitting 1/4 NPT Female x 1/2 NPT Male
$11.00
Through-panel air fitting with a 1/4 NPT female port, 1/2 NPT male connection and 3/4-16 mounting thread. Includes a fitted locknut and washer.
Part number AB0904.
Description
Overview

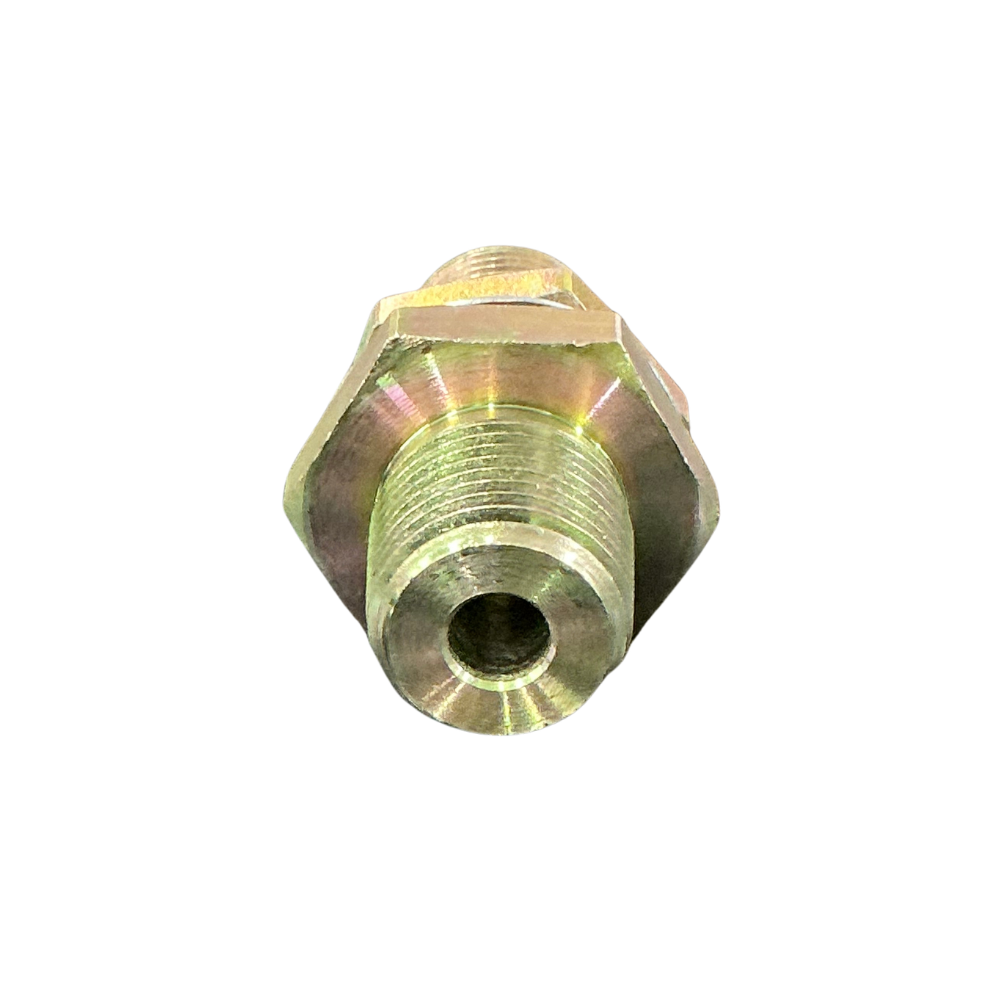

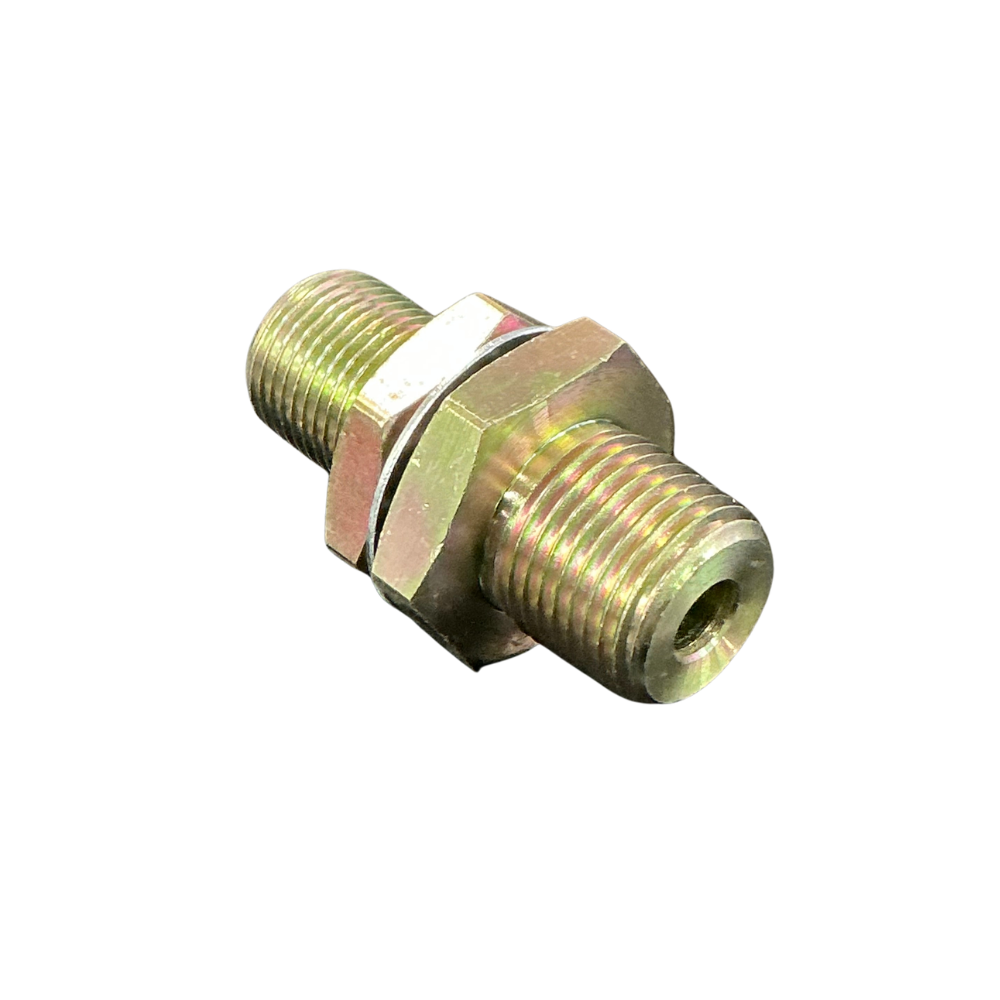

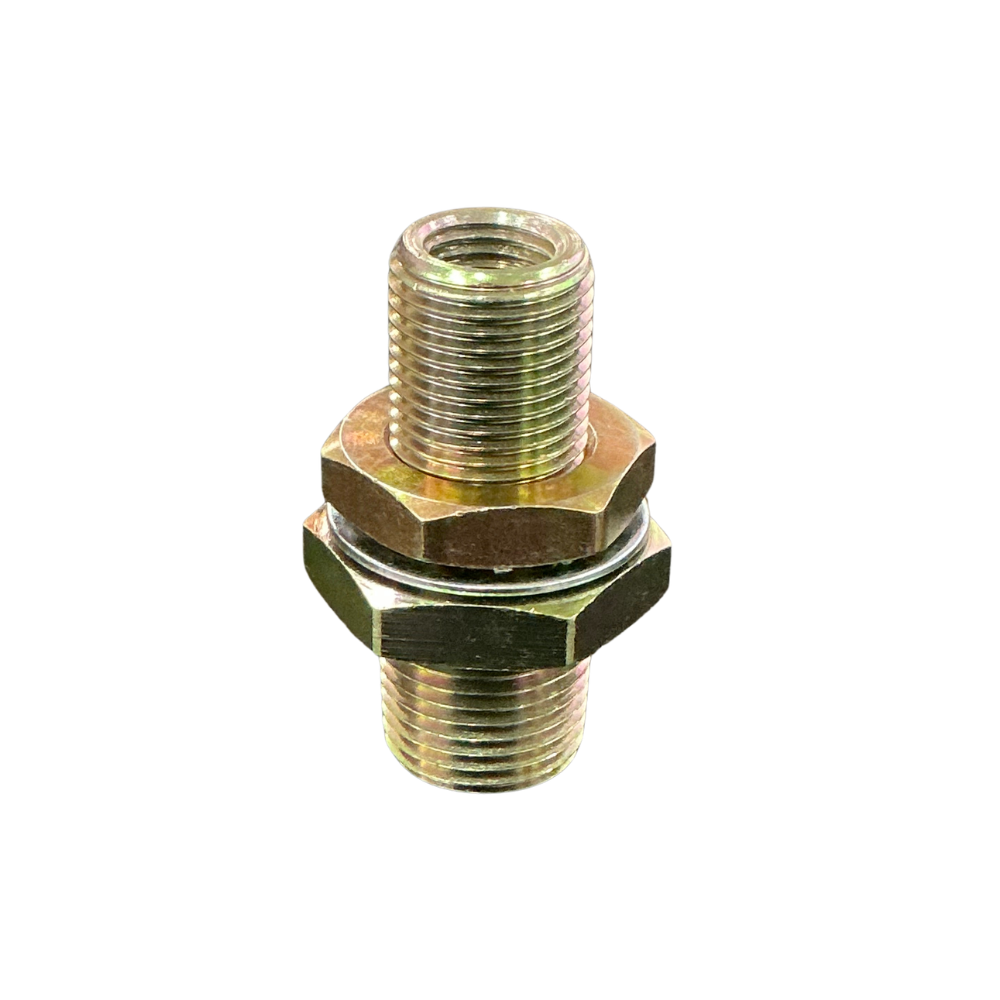

The 1/4 NPT Female x 1/2 NPT Male Bulkhead Nipple carries an air connection through a mounting panel, frame bracket or equipment wall. It combines a 1/4 NPT female port with a 1/2 NPT male connection and a separate 3/4-16 mounting section.
The threaded mounting section passes through the panel, while the locknut and washer clamp the fitting securely in position. Hex sections on both sides provide controlled spanner access during installation.
Features
- 1/4 NPT female air connection
- 1/2 NPT male air connection
- 3/4-16 straight mounting thread
- Includes fitted mounting locknut and washer
Specifications and Materials
Product type: straight bulkhead frame nipple.
Female connection: 1/4 NPT.
Male connection: 1/2 NPT.
Mounting thread: 3/4-16 NF.
Configuration: through-panel fitting with hex body, mounting locknut and washer.
Part number: AB0904.
Refer to the Parker fitting thread identification guide
Compatibility and Fitment
Confirm that the connecting ports are 1/4 NPT female and 1/2 NPT male before ordering. NPT and BSP threads can appear similar but use different thread forms and must not be treated as interchangeable.
The 3/4-16 section is the straight mounting thread for securing the fitting through a panel. It is not a 3/4-inch air connection. Check the panel hole diameter, available thread length and surrounding spanner clearance before installation.
Related Parts
Check the related service part below against the mounting arrangement before ordering.
| Use | Part number | Part type |
|---|---|---|
| Replacement component | AB0909 | 3/4-inch air fitting locknut |
Compliance and Safety
Depressurise the air circuit before installing or removing the fitting. Apply a compatible thread sealant to the tapered NPT connections without allowing material to enter the air passage. Tighten through the correct hex section rather than twisting the mounted panel or connected pipework.
After installation, restore pressure gradually and inspect both NPT connections and the bulkhead mounting point for leakage, movement or damaged threads.
Trailer Applications
Trailer workshops use bulkhead frame nipples to route compressed air through chassis brackets, equipment panels, valve mounting plates and enclosed pneumatic assemblies. The through-panel design keeps the connection fixed while allowing air lines or fittings to connect on either side of the mounting surface.
Why Choose ICS Trailers
Bulkhead fittings can combine several different thread sizes on one body. Send the original fitting measurements, panel thickness and clear photos of both connections if you need help identifying the correct replacement.
Browse more Air Fittings
Online prices apply to website orders only. In-store pricing may differ.
