Description

Overview

Fifth wheel repair kit renews the top plate liner area on supported JOST JSK 37 and ME 140 W fifth wheel couplings. This Sampa repair kit matches the SK 3106-003 liner kit application and suits workshop replacement where the left and right slide washers need replacing together.

Features

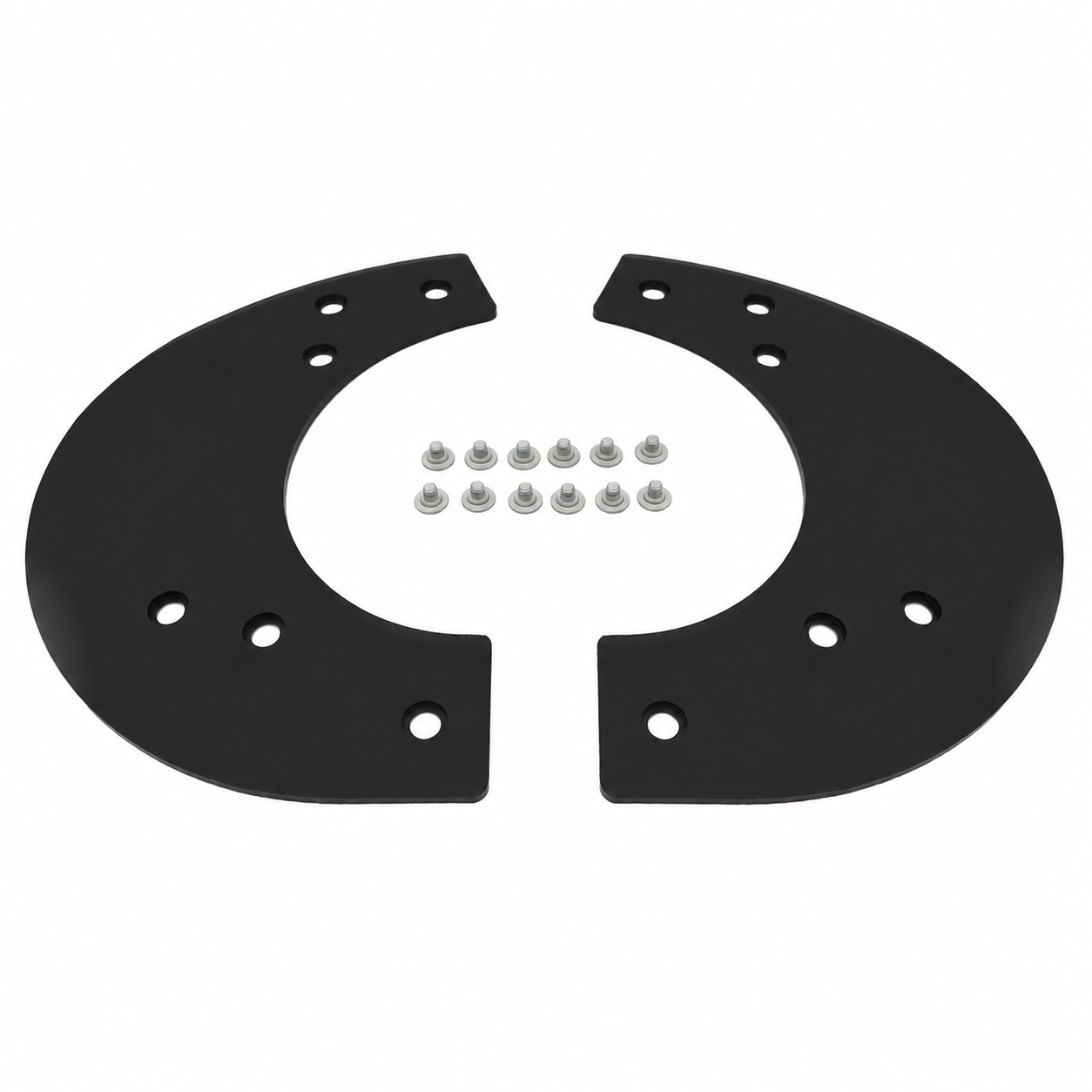

• Includes left and right slide washers for the fifth wheel top plate liner.
• Comes complete with screws for the slide washer installation.
• Suits JSK 37 CW, EW, EAW, ERW and ME 140 W fifth wheel applications.
• Cross-references to DAF, MAN, AUTOMANN and JOST repair kit numbers.

Specifications and Materials

This fifth wheel repair kit covers the top plate liner service parts for selected JOST fifth wheel coupling layouts. It carries a 2.28kg packing weight and supplies one repair kit per box.

Part number: 095.564.

Use the JOST top plate liner repair kit guide when checking fifth wheel model suitability and kit contents.

Compatibility and Fitment

Match the fifth wheel model, liner style and existing wear plate hardware before ordering. Also check the top plate surface, mounting holes and screw condition, because worn or damaged mounting points can affect the new liner fit.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. SK 3106-003, SK3106003, KP3163, 1434610, 81427106201

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the fifth wheel coupling before fitting the new liner parts. Replace worn hardware, damaged screws or distorted slide washer contact areas before the vehicle returns to service.

After installation, check coupling operation and confirm the top plate liner sits correctly. If the fifth wheel shows lock damage, heavy wear or unsafe movement, repair the coupling before towing.

Trailer Applications

Workshops use this fifth wheel repair kit during fifth wheel top plate liner servicing on supported DAF and MAN truck applications running compatible JOST fifth wheel couplings. It suits maintenance where the liner wear parts need replacement rather than a complete fifth wheel assembly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies fifth wheel parts for coupling repairs, workshop servicing and fleet maintenance where fifth wheel model, liner hardware and replacement parts need to match.
