Description

Overview

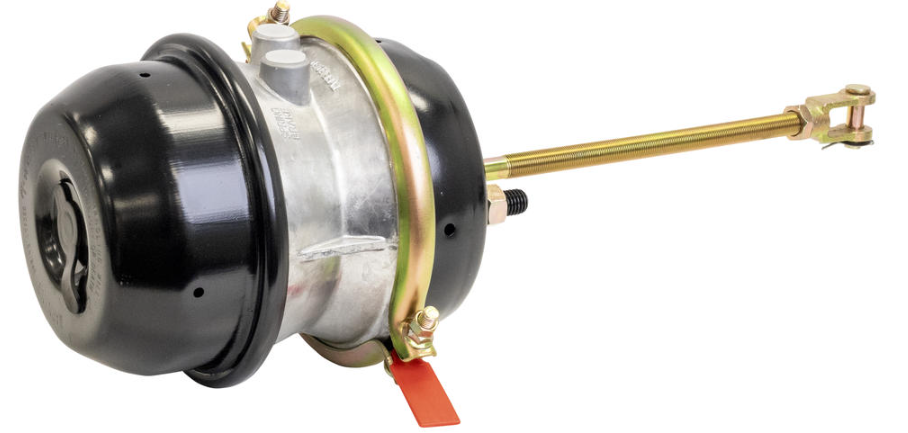

24/30 spring brake chamber restores spring brake actuation on heavy trailer and truck S-cam drum brake systems. This sealed Type 24/30 chamber suits Fuwa K Hitch FKS 24/30 applications where the service brake chamber, spring brake section and mounting layout match.

Features

• Type 24/30 sealed spring brake chamber for S-cam drum brake applications.
• 64mm stroke with 5/8-18UNF push rod thread.
• 3/8-18NPT air inlet and 5/8-UNC mounting studs.
• 45° stud angle for matching the existing chamber position.

Specifications and Materials

This 24/30 spring brake chamber uses a 128mm R1 dimension, 210mm R2 diameter, 235mm L1 length, 285mm L2 length and 255mm L3 caged length. The chamber has a 9.2kg listed weight before packaging.

Part number: KHT2430EBR.

Use the Fuwa K Hitch spring brake chamber spec sheet when checking chamber size, threads and mounting dimensions

Compatibility and Fitment

Match the chamber size, stroke, push rod thread, port thread, mounting stud size and stud angle before ordering. Also compare the caged length and mounting clearance, because spring brake chambers can foul nearby suspension or axle hardware if the body size differs.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. T2430, SB2430CCAUS-1, SB2430CCAUS1

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the push rod, clevis, mounting studs, air ports and chamber body before fitting. Replace damaged air fittings or worn clevis hardware during the same brake service.

Before removal, follow safe spring brake caging procedure and release stored energy correctly. After installation, check chamber stroke, air leaks, brake return and parking brake operation before the vehicle returns to service.

Trailer Applications

Workshops fit this 24/30 spring brake chamber during trailer and truck S-cam brake repairs where a sealed Fuwa K Hitch FKS 24/30 chamber is required. It suits chamber replacement when the existing brake booster leaks, fails stroke checks or no longer releases correctly.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
