Description

Overview

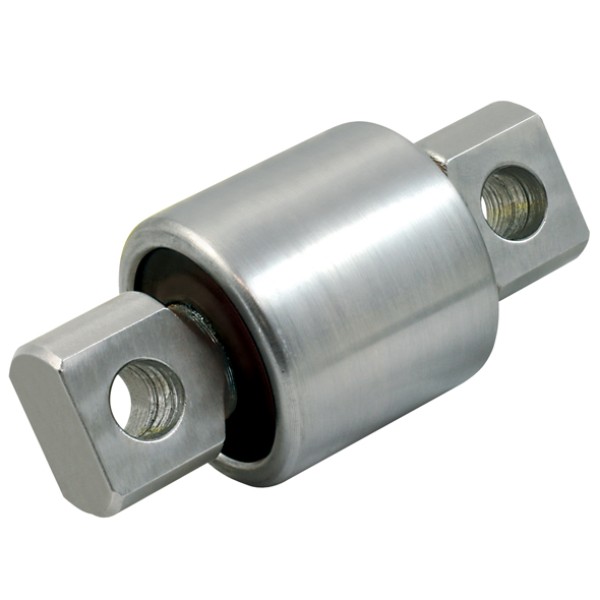

KW Airglide torque rod bush restores torque rod support in Kenworth Airglide suspension setups. This straddle type bush suits torque rod and stabiliser rod service where the existing bush dimensions and mounting centres match.

Features

• Straddle type torque rod bush for Airglide suspension applications.
• 69.8mm outside diameter with 17.4mm hole size.
• 111mm hole centre spacing for matching the torque rod mount.
• 140mm overall length for direct comparison against the removed bush.

Specifications and Materials

This KW Airglide torque rod bush measures 69.8mm O.D., 17.4mm hole size, 111mm holes C-C and 140mm overall length. Check the removed bush and torque rod bracket before ordering.

Part number: SP1334VPG.

Use the STEMCO GAFF torque rod bushing bulletin when checking Airglide application notes

Compatibility and Fitment

Match the O.D., hole size, hole centres, overall length and suspension type before fitting. Also inspect the torque rod, bracket faces and fasteners, because worn mounting hardware can shorten bush life.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. SP1334, SG 11729, SG11729, 11729, 836940, 839310, BP1320, K836940, K839310, SP1507

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Press the bush squarely and avoid damaging the outer shell or inner sleeve during installation. If the torque rod eye has flogged out, replace or repair the rod before pressing in the new bush.

After fitting, tighten the hardware to the vehicle specification and recheck the suspension after service. Replace paired bushes where wear patterns show the opposite side has also moved or cracked.

Trailer Applications

Workshops fit this KW Airglide torque rod bush during Kenworth Airglide suspension repair, torque rod servicing and stabiliser rod bush replacement. It suits repairs where the old bush has cracked, softened, walked out or developed movement under load.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies suspension bushes and torque rod parts for heavy vehicle suspension repairs, axle alignment work and fleet maintenance.
