Description

Overview

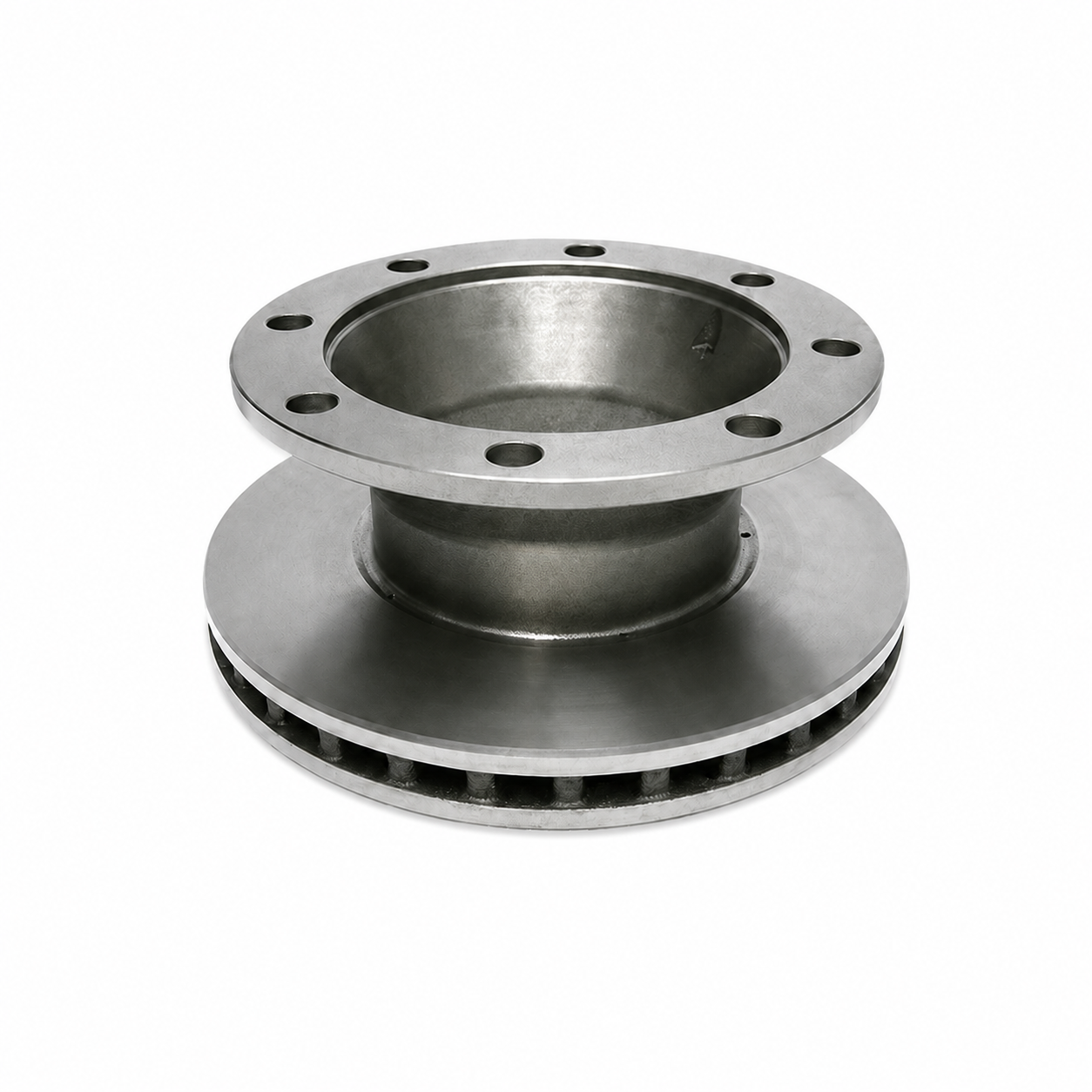

377 x 45mm brake disc restores the rotor surface on BPW TSB 3709 ECO Disc trailer brake assemblies. This internally vented disc suits 8-hole BPW disc brake setups where the existing rotor dimensions, PCD and centre bore match.

Features

• Single brake disc for one wheel position.
• 377mm outside diameter with 45mm new disc thickness.
• Internally vented rotor design for BPW ECO Disc service work.
• 8-hole layout with 275mm PCD and 230mm centre bore.

Specifications and Materials

This 377 x 45mm brake disc suits BPW TSB 3709 disc brake applications using an 8-hole, 275mm PCD rotor layout. Order two discs when replacing both sides of one axle.

Part number: 071.174.

Use the BPW ECO Disc brake parts guide

Compatibility and Fitment

Match the outer diameter, disc thickness, centre bore, PCD, hole count and BPW brake type before ordering. Also check the existing rotor number and axle setup, because BPW TSB 3709 variants can differ by exciter ring provision.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 03.088.34.15.7, 0308834157, 03.088.34.16.7, 0308834167, 046.385-00A, 04638500a, 10.14112, 1014112, 31552, 569123J, 713851, BP105

Compliance and Safety

Inspect the hub face, mounting holes, brake pads, caliper hardware and wheel-end condition before fitting the new disc. Replace worn pads or damaged retaining hardware during the same brake service.

After installation, check disc runout, pad seating and brake operation before returning the trailer to service. Replace the disc if it reaches minimum thickness, shows continuous cracking or has braking surface damage outside the acceptable wear limits.

Trailer Applications

Workshops fit this 377 x 45mm brake disc during BPW ECO Disc trailer brake repairs, especially where the existing BPW TSB 3709 rotor has worn below service limits, cracked, scored or developed uneven braking surface wear.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies foundation brake parts for trailer brake repairs, wheel-end servicing and fleet maintenance where rotor dimensions and brake fitment need to match.
