Description

Overview

Hendrickson Intraax camshaft cover kit protects and supports the brake cam tube area on heavy trailer foundation brake assemblies. This genuine kit suits 16.5” severe duty drum brake cam tube service where the existing cover, tube and hardware match the Intraax setup.

Features

• Genuine camshaft cover and cam tube service kit for Hendrickson Intraax drum brake assemblies.
• Includes tubes, seals, supports and associated hardware.
• Cam end and spline end both measure 54mm O.D. and 37mm I.D.
• 212mm overall length for matching the existing camshaft cover assembly.

Specifications and Materials

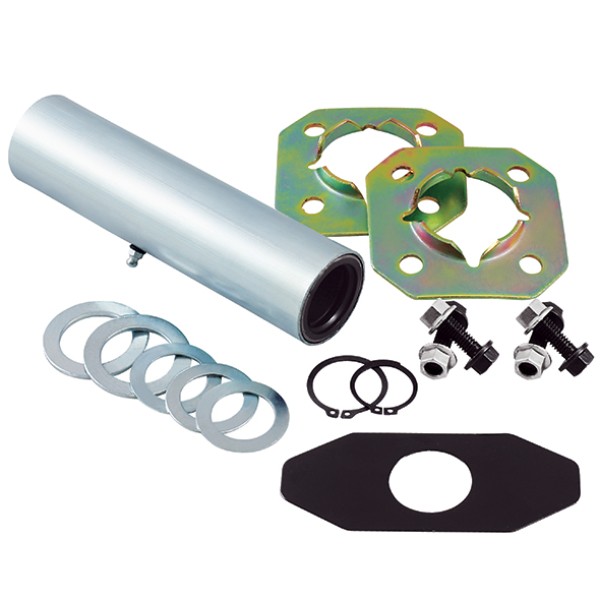

This Hendrickson Intraax camshaft cover kit measures 212mm overall, with 54mm O.D. and 37mm I.D. at the cam end and spline end. The kit includes the cam tube assembly, support brackets, cam washer, hardened washers and cam tube slack boot.

Part number: FB1968G.

Use the Hendrickson brake systems parts list when checking cam tube kit contents and 16.5” brake application.

Compatibility and Fitment

Match the brake type, cam tube length, cam end size, spline end size and existing hardware before ordering. Also check the camshaft, spider and slack adjuster area during service, because worn connected parts can damage the new cover kit.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 98933-013, 98933013, BP9022, E-11897, E11897, S-28890, S28890, S26348, S-31703, S31703, WT2047

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Install the cam tube assembly as a slip-fit part and do not weld or otherwise fasten it to the spider. Before fitting, lubricate the internal seals and bushings, then orient the tube correctly against the camshaft and slack adjuster side.

After installation, check bracket position, retaining rings, washers and grease fitting access. If the camshaft or spider area shows heavy wear, repair those parts before returning the brake assembly to service.

Trailer Applications

Workshops fit this Hendrickson Intraax camshaft cover kit during heavy trailer foundation brake repairs on Intraax 16.5” drum brake assemblies. It suits cam tube cover replacement when the original cover, seals or support hardware have worn, split or been damaged during brake service.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
