Description

Overview

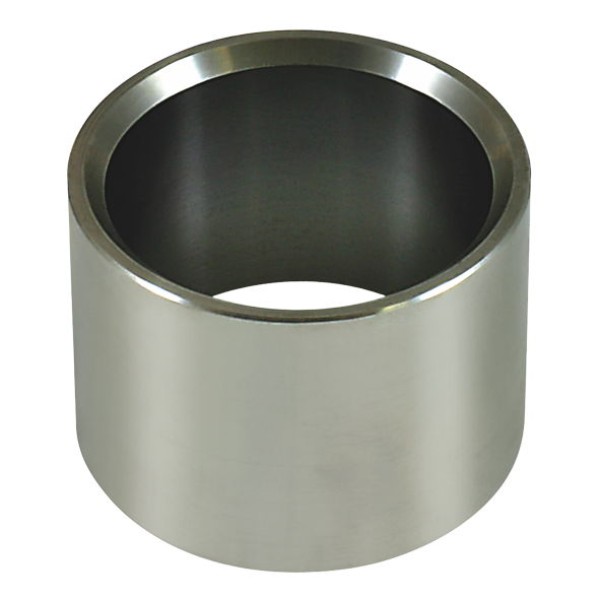

50mm solid towing eye bush supports the towing eye bore in Ringfeder, VGB and Jeco type drawbar eye setups. It suits general purpose 50mm towing eye service where the existing bush has worn, loosened or needs replacement during coupling inspection.

Features

• Suits Ringfeder, VGB and Jeco type towing eyes
• Solid 50mm towing eye bush for drawbar eye service
• Measures 50mm inside diameter, 60.5mm outside diameter and 44mm high
• Matches common 50mm tow eye bush replacement numbers

Specifications and Materials

Product type: solid towing eye bush for 50mm drawbar eye applications.

The bush measures 50mm inside diameter, 60.5mm outside diameter and 44mm high.

Part number: TC8302.

Match the inside diameter, outside diameter and height before ordering because oversize and split bush versions also exist for similar towing eyes.

Use the manufacturer drawbar eye reference when checking 50mm drawbar eye applications

Compatibility and Fitment

Check the towing eye type and bush size before fitting. 50mm solid towing eye bush suits Ringfeder, VGB and Jeco type towing eyes.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 01026933, WT53005, FL16.886, FL16886, R53362

Compliance and Safety

Inspect the towing eye, bush bore and coupling contact area before fitting. If the eye, bush or coupling pin shows heavy wear, cracking, ovality or impact damage, replace the affected parts before the trailer returns to service.

Trailer Applications

Mechanics replace eye bushes during drawbar eye servicing, coupling inspections and trailer maintenance. It suits workshop jobs where the bush needs to restore the correct 50mm bore in a compatible towing eye.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies towing eye and coupling parts for heavy trailer servicing, repair work and parts-counter replacement. Check the bush size against the towing eye before ordering.
