Description

Overview

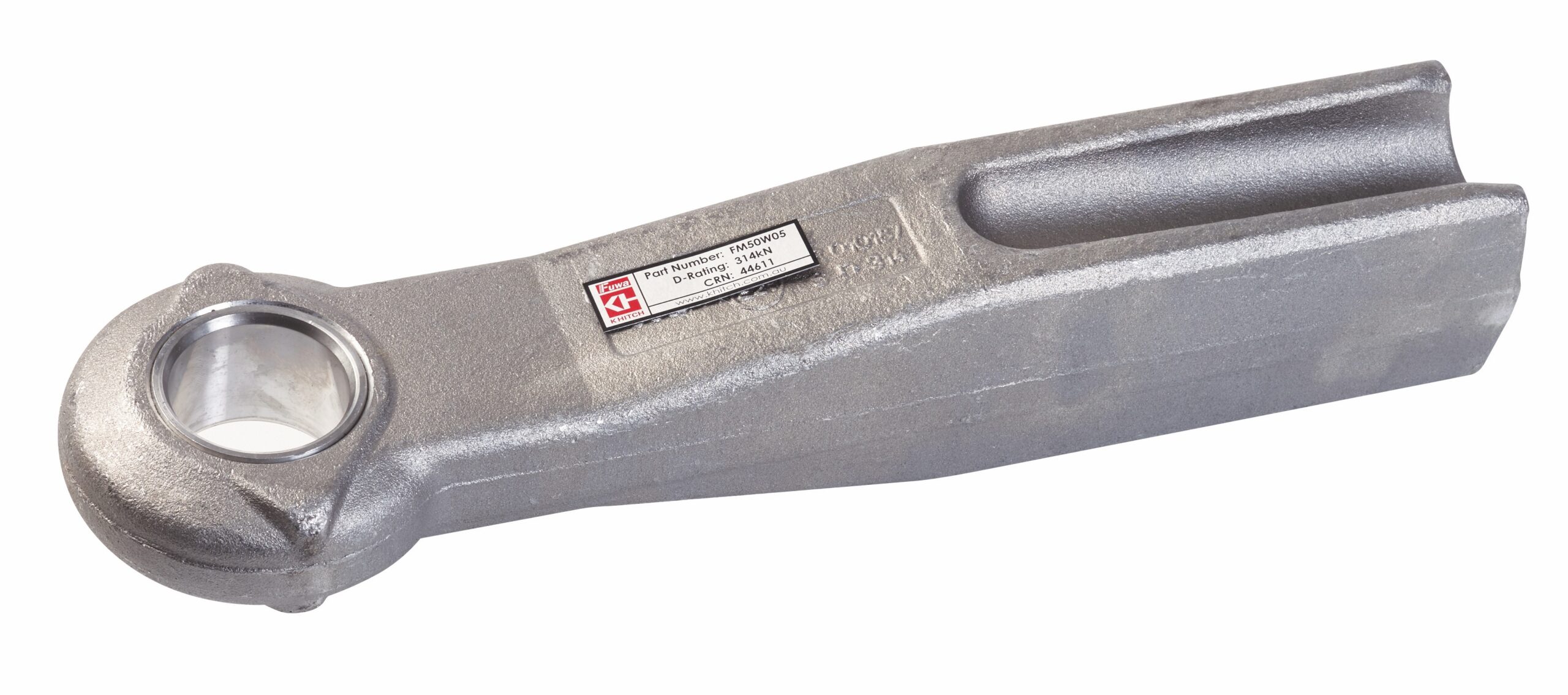

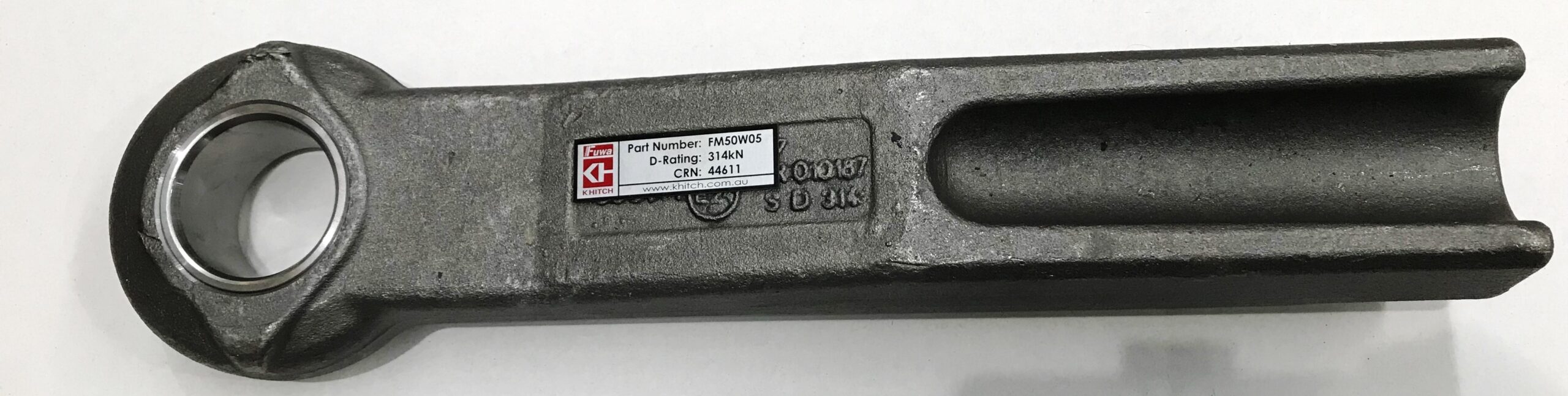

50mm weld on tow eye supports heavy trailer drawbar towing where a fixed welded eye suits the drawbar design. This Fuwa K Hitch HD I-beam type tow eye carries a 314kN manufacturer D rating and suits 50mm coupling applications.

Features

• 50mm weld-on tow eye for heavy trailer drawbar assemblies.
• HD I-beam type body for welded drawbar installation.
• 314kN manufacturer D rating with CTA-044611 approval reference.
• Matches drawing number 993141 for product identification and service checking.

Specifications and Materials

This 50mm weld on tow eye matches the Fuwa K Hitch B weld on I-beam type drawbar eye. It carries CRN 44611, CTA-044611 and a 314kN D rating.

Part number: FM50W05.

Use the Fuwa K Hitch drawbar eye spec sheet for rating and CTA guidance

Compatibility and Fitment

Check the drawbar design, eye diameter, D rating, welding procedure and coupling application before ordering. Also confirm the drawbar setup suits a welded I-beam style tow eye rather than a bolt-on or removable tow eye.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. OC50W05, 15-160, 15160, 203141, 6991394, ROCK57394

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Prepare the weld area correctly before fitment. The manufacturer procedure calls for clean welding areas, correct drawbar alignment, preheating and four-point welding.

Inspect the tow eye, welds and bush during scheduled servicing. If the eye dimensions exceed wear limits or the weld area shows cracking, remove the trailer from service until repaired.

Trailer Applications

Workshops fit this 50mm weld on tow eye to heavy trailer drawbar assemblies where the drawbar structure, coupling type and load rating match the tow eye specification. It suits replacement work when the existing welded eye has worn, cracked or no longer meets service limits.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies tow coupling parts for trailer repair, drawbar servicing and fleet maintenance where rating, application and fitment need to line up.
