Description

Overview

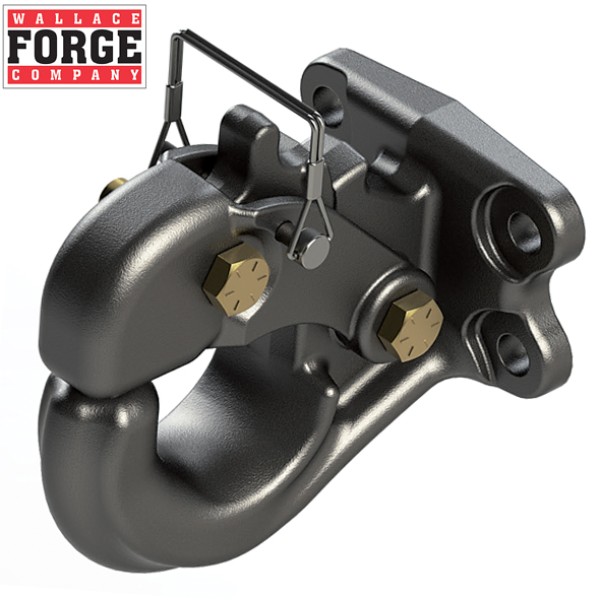

20t rigid mount pintle hook secures a rated heavy trailer coupling point for rigid 4-bolt mounting setups. It suits truck, trailer and equipment towing layouts that run a drawbar eye through a fixed pintle hook connection.

Features

• ADR approved pintle hook with CTA-016122 approval reference.
• Rated to 20 tonne maximum gross trailer weight with 3 tonne maximum vertical load.
• 80 kN D-value for matching against the truck, drawbar and trailer combination.
• 4-bolt rigid mount pattern suits heavy tow plates and pintle hook mounting brackets.

Specifications and Materials

Part number: TC6022.

This 20t rigid mount pintle hook matches Wallace Forge model 2057114 and suits drawbars with a 2 3/8″ to 3″ diameter eye. The mounting hole diameter is 19/32″ for the R-20 rigid mount pattern.

See the manufacturer rigid pintle hook data for published model and replacement part information.

Compatibility and Fitment

Check the drawbar eye diameter, mounting plate condition, bolt pattern, D-value, gross trailer weight and vertical load before ordering. Also confirm the final mounting arrangement suits the vehicle approval and trailer application.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 2057114

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Do not weld or modify the pintle hook. For off-road use, reduce rigid pintle hook capacity by 25% and inspect the hook, latch, pin, chain and mounting hardware before service. Replace worn parts rather than running a loose or damaged latch assembly.

Trailer Applications

Fleets and workshops use this 20t rigid mount pintle hook on heavy towing setups that need a fixed 4-bolt pintle connection. It suits rigid mounting plates where the trailer drawbar eye falls within the approved eye diameter range.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
