Weld alignment pivot bolt kit secures the pivot connection on Hendrickson welded alignment suspension setups. It suits HLM, HT, T, TDC and TMB series suspensions where the pivot bolt, nut and liner need replacement together.

Features

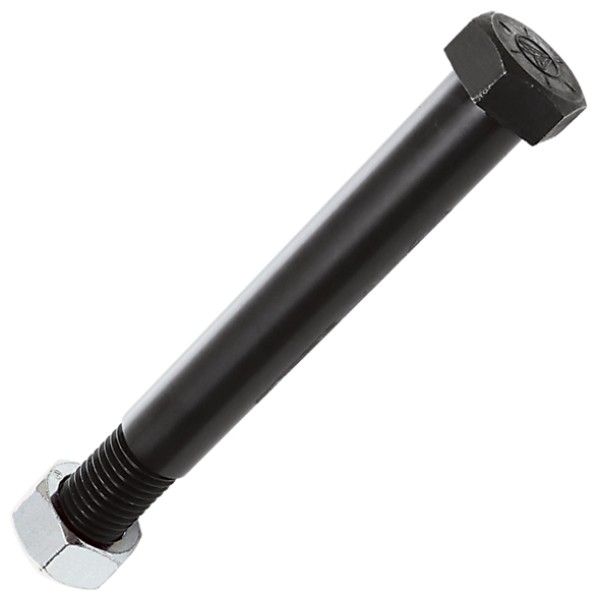

• Includes one 1-1/8″-7 pivot bolt with 9 3/4″ length.
• Includes one 1-1/8″-7 nut for the matching pivot bolt.
• Includes one bolt liner with 1-1/4″ outside diameter, 1-1/8″ inside diameter and 6-3/4″ length.
• Suits welded alignment pivot hardware on listed Hendrickson suspension series.

Specifications and Materials

Part number: SP0108.

This weld alignment pivot bolt kit includes the bolt, nut and liner used at the suspension pivot connection. Match the suspension series, pivot hardware type and welded alignment setup before ordering.

See the official Hendrickson trailer parts catalog for weld alignment pivot bolt kit identification

Compatibility and Fitment

Check whether the suspension uses welded alignment hardware before fitting, because QUIK-ALIGN pivot hardware uses a different bolt kit. Also confirm the existing bolt, nut and liner dimensions against the removed parts.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. E-3768, E3768, S-3646, S3646

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the pivot connection, bushing, liner seat, alignment collars and frame bracket before reassembly. Then torque the pivot hardware to the correct Hendrickson service procedure for the suspension model, because loose or mismatched pivot hardware can damage the bushing and hanger.

Trailer Applications

Workshops fit this weld alignment pivot bolt kit during Hendrickson suspension pivot repairs, rebushing work and worn hardware replacement. It suits trailers running welded alignment pivot hardware where the bolt and liner need replacing as a set.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies suspension repair parts for heavy trailer servicing, workshop repairs and fleet maintenance. Browse more suspension parts from ICS Trailers
