Description

Overview

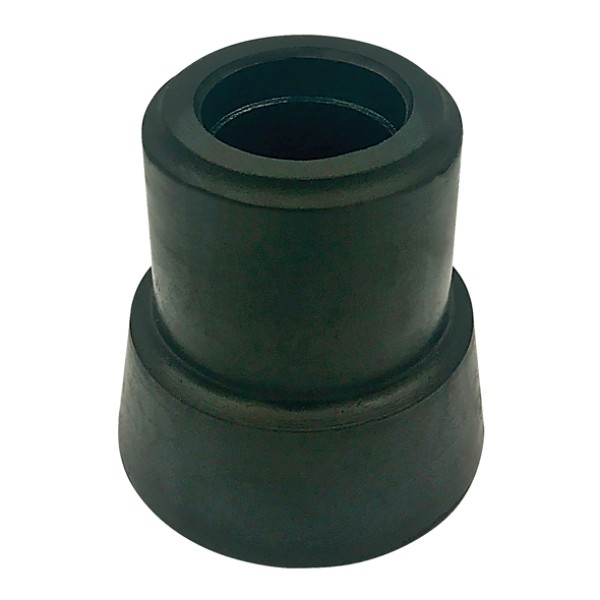

Reyco torque / radius rod bush cushions movement through the rod end and helps keep the joint located in suspension service. It suits Reyco torque and radius rod applications where worn rubber starts adding slack, noise or uneven movement through the link.

Features

• 46mm / 62mm stepped OD for housing match-up
• 25mm ID for pin and sleeve fitment checks
• 69mm length for bush width matching in rod ends
• Rubber construction for compliant load control in torque and radius rod joints

Specifications and Materials

This bush measures 46mm / 62mm on the outside diameter, 25mm on the inside diameter and 69mm in length, so buyers can match the housing, pin and bush width before ordering. It suits matching Reyco torque or radius rod ends and should be checked with the surrounding sleeve, pin and washers during repair work. Part number: SP1309. See the 102/102W/102CC I&M manual for Reyco torque arm bushing service

Compatibility and Fitment

Match both outside diameters, the inside diameter and the overall length before ordering, then inspect the rod eye, sleeve and retaining hardware while the joint is apart. Also check whether the housing has worn oval, because a fresh bush will not correct a damaged end. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. FL83.2159, FL832159, T2242, IT1309, WT1309

Compliance and Safety

Clean the housing bore before pressing the bush in, then confirm the pin or sleeve passes through square without cutting or twisting the rubber. Replace bushes that show splitting, crush damage or loose fit in the housing, because joint movement can affect suspension alignment and tyre wear.

Trailer Applications

Workshops fit this Reyco torque / radius rod bush during suspension rebuilds, rod end service and routine bush replacement on Reyco mechanical suspension setups. It also suits jobs where the original bush has hardened, shifted or worn through after repeated load cycles.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
