Description

Overview

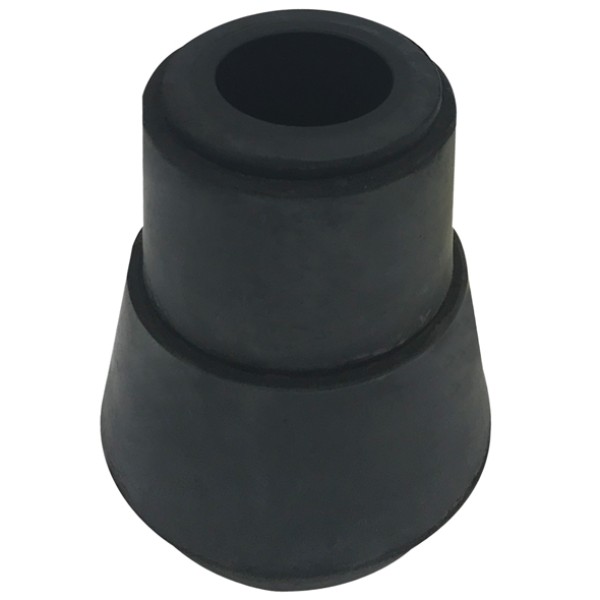

Reyco 21B torque rod bush cushions movement through the rod joint and helps keep the suspension connection controlled under load. Because the bush sits between the rod hardware and the mounting point, it also helps limit knock, wear and unwanted play through the connection. The taper profile suits installations that need the bush to seat firmly into the housing instead of relying on a straight-sided fit. That makes this Reyco 21B torque rod bush important to joint stability when the suspension cycles through load changes and road movement.

Features

• Suits Reyco 21B radius and torque rod applications
• 45mm / 59mm taper outside diameters for housing match-up
• 25.4mm inside diameter, also known as 1″, for pin or sleeve fit
• 77mm overall length for dimension checking before fitting

Specifications and Materials

This bush measures 45mm / 59mm OD, 25.4mm ID and 77mm in length. The rubber body cushions movement through the joint, while the taper profile gives buyers a clear set of dimensions to compare before pressing the bush into place. Part number: SP1315. General elastomer material background is covered in this engineering guide to elastomers

Compatibility and Fitment

Match both outside diameter points, the 25.4mm inside diameter and the 77mm overall length against the old bush and the housing before ordering. Also compare the rod eye, sleeve and mounting arrangement, because taper bushes need the correct seating profile as well as the right bore size. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 720047, FL83.2161, FL832161, IT1311, BP1311, T5493, WT1311

Compliance and Safety

Inspect the rod eye, housing and any inner sleeve before fitting the new bush. Replace any bush that shows cracking, hardening, tearing or separation, because worn rubber can let the rod move out of line under braking and suspension travel. After installation, confirm the bush seats evenly and that the joint moves as intended without binding or side-loading.

Trailer Applications

Workshops fit this Reyco 21B torque rod bush during suspension rebuilds, rod repairs and general service where the original taper bush has worn, split or gone hard. It suits radius rod and torque rod joints that need the taper body to locate properly in the housing and support a controlled fit through the connection. Fleets also replace this style of bush when chasing loose suspension feel, visible play or uneven movement at the rod joint.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
