Description

Overview

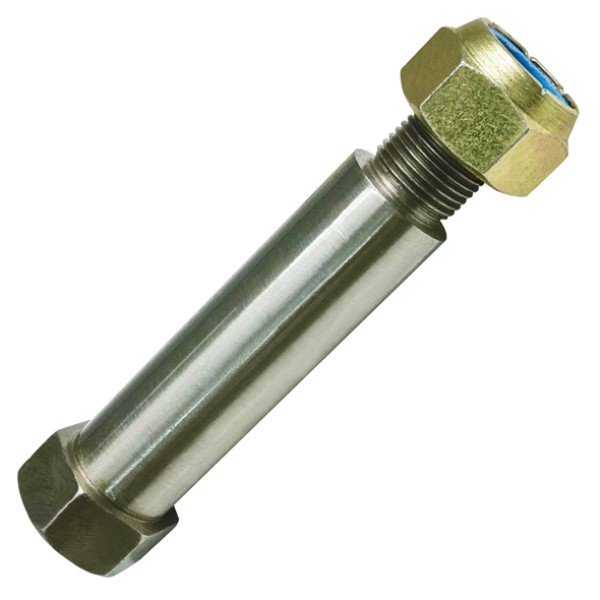

Radius torque rod pin Freighter TAA35-TAA40 secures the rod eye through the suspension bracket on matching Freighter setups. It carries the load at the rod connection, so the suspension can move without letting the joint shift loose in service. The 32mm shaft and 150mm overall length suit Freighter TAA35, TAA36, TAA37 and TAA40 applications when the original pin matches. When the old pin wears, scores or loosens in the bush, this replacement helps restore proper rod support.

Features

• 32mm shaft diameter for matching radius rod and torque rod bushes
• 150mm overall length for the listed Freighter suspension range
• 25.4mm 1in UNF thread for the correct nut and clamp arrangement
• Match shaft size, overall length and thread before ordering

Specifications and Materials

This pin carries a 32mm shaft diameter, 150mm overall length and 25.4mm 1in UNF thread. It suits radius rod and torque rod positions on the listed Freighter suspension family where the original pin uses the same dimensions. Check bush size, bracket width and thread before fitting, because those details control how the joint clamps and runs in service. Part number: SP1405.

See the BPW suspension workshop manual

Compatibility and Fitment

Match the shaft diameter, overall length, thread and suspension model before ordering. This part suits Freighter TAA35, TAA36, TAA37 and TAA40 radius rod or torque rod positions when the original pin matches those dimensions. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 203-02247, 20302247, 88-2404, 882404, BP1405, FL88.2404, FL882404, WT1405

Compliance and Safety

Support the trailer before removing any loaded suspension joint. Inspect the bush, bracket faces and matching nut thread, because a new pin will not correct worn companion parts. Grease or prepare the joint only to the suspension maker’s method. After installation, tighten the hardware to the correct procedure and recheck the joint after initial service.

Trailer Applications

Workshops use radius torque rod pin Freighter TAA35-TAA40 parts during rod repairs, bush replacement and suspension rebuild work. It suits jobs where the original pin has worn in the bush, damaged the thread or lost clamp accuracy at the rod eye. Radius torque rod pin Freighter TAA35-TAA40 also fits planned maintenance on Freighter trailer suspensions that use this pin size and layout.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers carries the pins, bushes and rod hardware commonly replaced during suspension repair work. That matters when a worn joint needs more than one service part to finish the job properly.
