Description

Overview

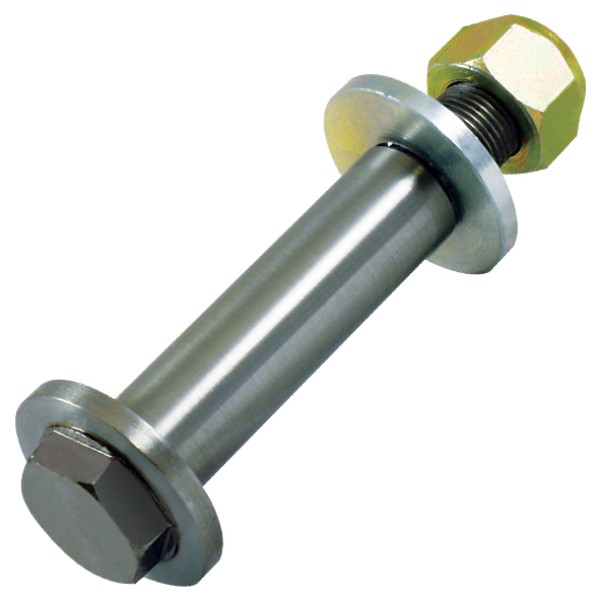

Radius Torque Rod Pin 70mm secures the rod eye at the suspension mounting point, so the rod can hold axle position under braking, cornering and load transfer. This pin comes with a nyloc nut and washer for Fruehauf, McGrath and similar mechanical suspension repairs where the original pin has worn, fretted or lost clamp load.

Features

• Pin supplied with nyloc nut and washer
• 70mm shaft diameter for matching the existing mounting point
• 115mm shaft length with 190mm overall length
• 25.4mm UNF thread for matching the original hardware

Specifications and Materials

This suspension pin suits radius rod and torque rod service work where the rod end, bracket and hardware layout match the original assembly. Key dimensions are 70mm shaft diameter, 115mm shaft length, 190mm overall length and 25.4mm UNF thread. Part number: SP1401HD. Use the UNF thread size guide as a thread form reference

Compatibility and Fitment

Match shaft diameter, shaft length, overall length and thread before ordering, then confirm the rod eye, bracket width and hardware seat match the existing setup on the trailer. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 099240, 59.901012, 59901012, BP1401, FL88.2400, FL882400, SXT-09-9240, SXT099240, ULA7822, WT1401

Compliance and Safety

Inspect the rod eye, bush, bracket faces and clamping hardware for wear before fitting the new pin. When installing the new pin, tighten the assembly to the suspension maker’s specification and recheck for side play, bush crush and secure nut retention after the initial service interval.

Trailer Applications

Workshops fit this pin in radius rod and torque rod repairs on mechanical suspension setups used across older Fruehauf and McGrath trailer applications. It suits jobs where the bush housing and bracket arrangement still match the original pin dimensions and thread.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
