Description

Overview

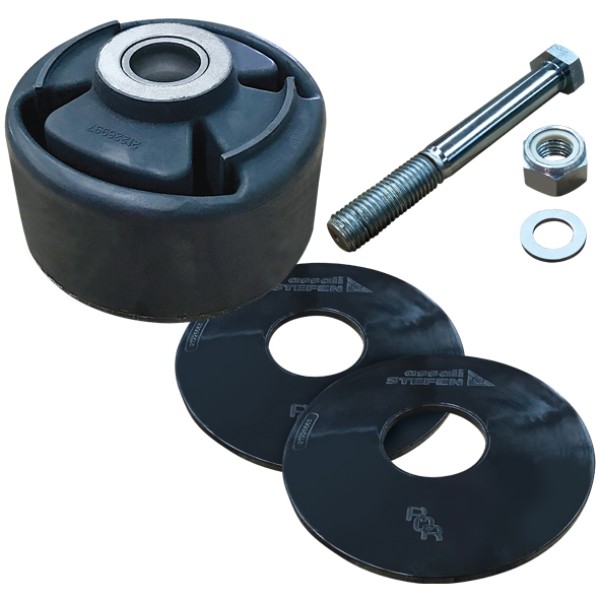

Meritor CS9 pivot bush bolt kit restores the trailing arm pivot assembly in CS9 top mount trailer suspension and helps keep the arm located correctly through suspension travel. When the pivot bush and matching hardware wear, movement at the hanger can increase, so replacing the full kit helps bring the pivot point back into proper working condition.

Features

• Suits Meritor CS9 top mount trailer suspension with 24mm pivot hardware
• Combines the pivot bush assembly with the matching pivot bolt and service hardware

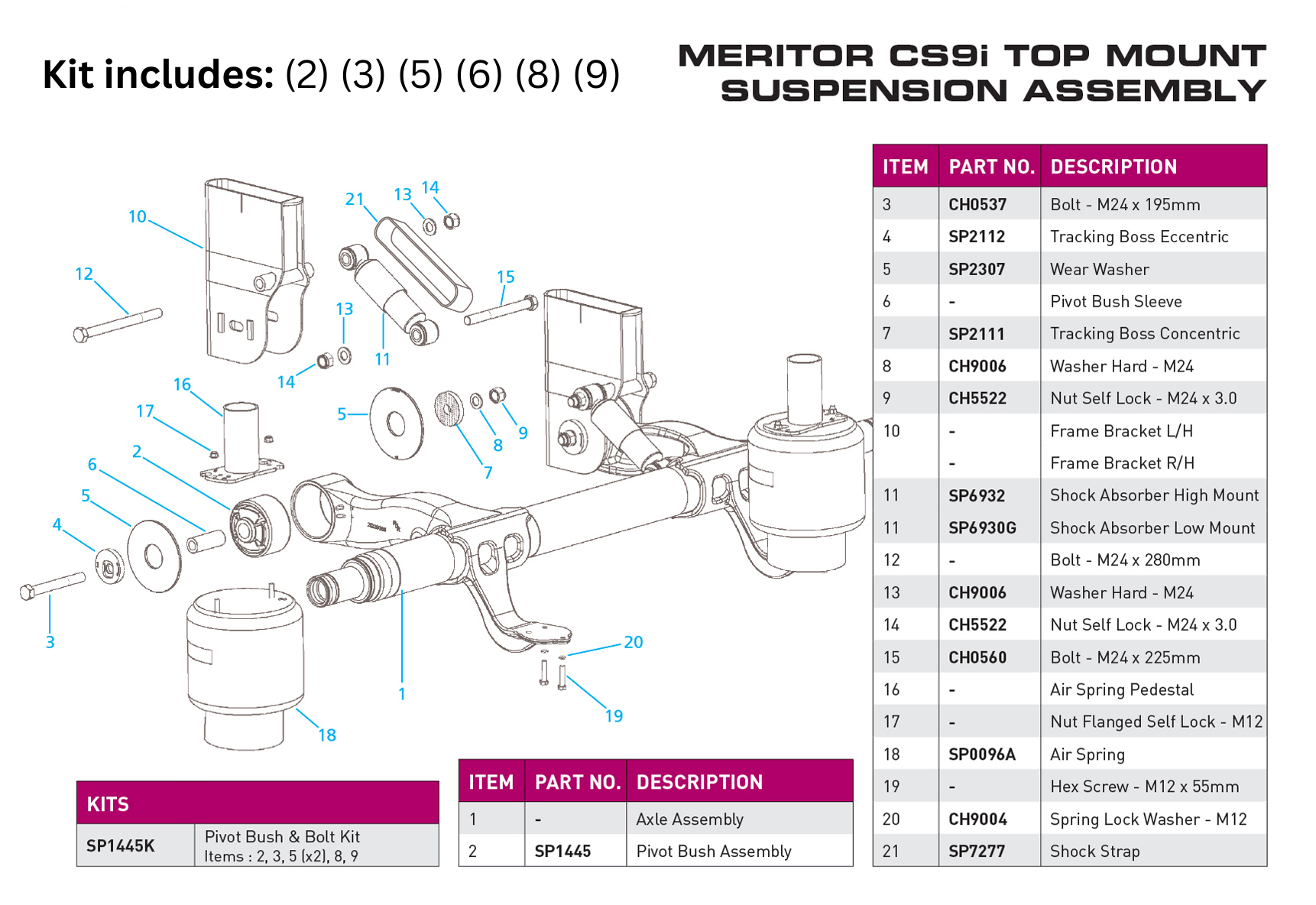

• Matches the pivot service position shown as kit items 2, 3, 5, 8 and 9 in the CS9 top mount assembly layout
• Useful when the bush and pivot hardware are replaced together during suspension service

Specifications and Materials

This Meritor CS9 pivot bush bolt kit suits 24mm bolt diameter applications and is built around the main parts used at the trailing arm pivot point. The kit runs with the pivot bush assembly, M24 pivot bolt, wear washers, hard washer and self-locking nut used in the CS9 top mount layout. Part number: SP1445K.

For service guidance on pivot bush replacement and final tightening at ride height, see the Meritor CS9 pivot bush replacement bulletin

Compatibility and Fitment

Match the suspension family and confirm the kit is for Meritor CS9 top mount layouts using a 24mm pivot bolt before ordering. Check the existing pivot hardware size, the hanger position and the trailing arm pivot location during disassembly so the replacement parts match the job. These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. SUS10A, AMKITCS924

Compliance and Safety

Inspect the hanger brackets, pivot faces and bolt holes for wear before fitting new parts. Do not fully tighten the pivot hardware until axle alignment and ride height are set, because final clamping at the wrong suspension height can affect bush service life. After installation, recheck all related fasteners before returning the trailer to operation.

Trailer Applications

Workshops fit this kit during Meritor CS9 top mount trailer suspension repairs when the pivot bush and related bolt hardware need replacement together. It suits pivot service work on trailers where bush wear, hardware damage or movement at the hanger has made a full pivot refresh the better repair option.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
