Description

Overview

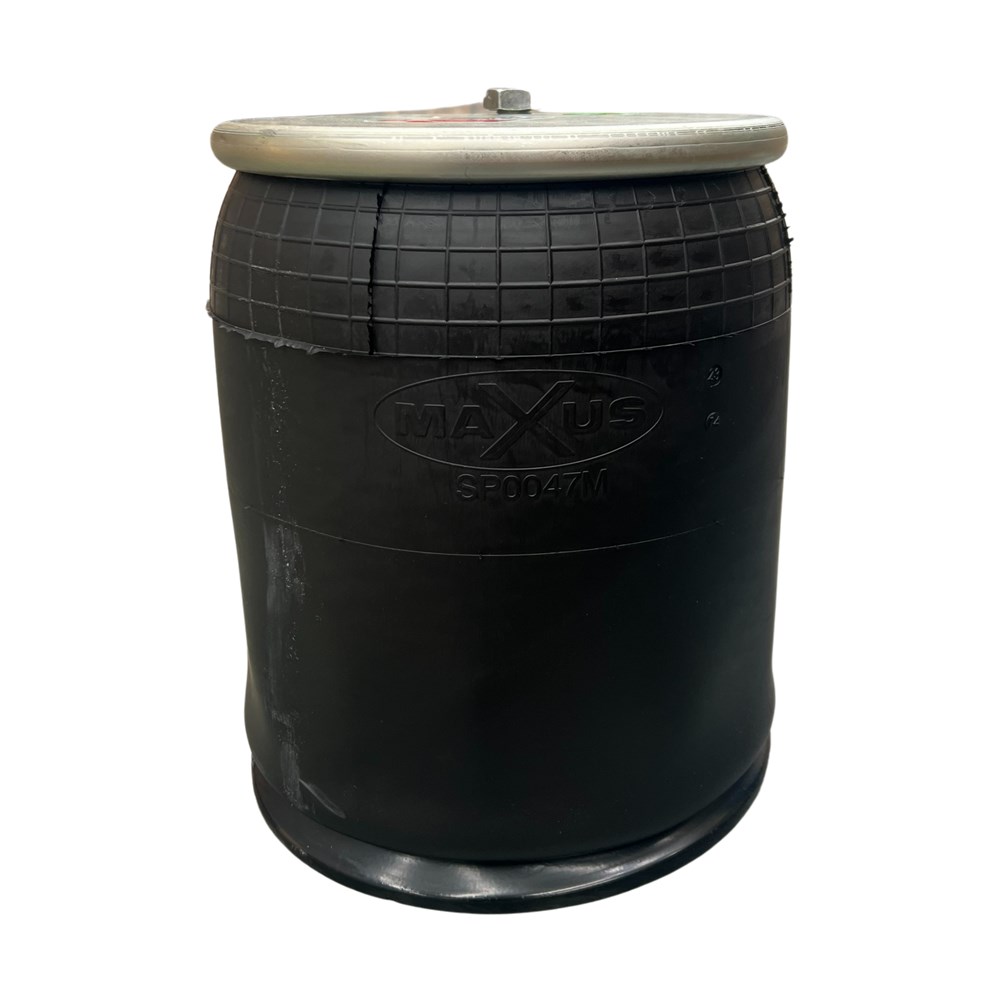

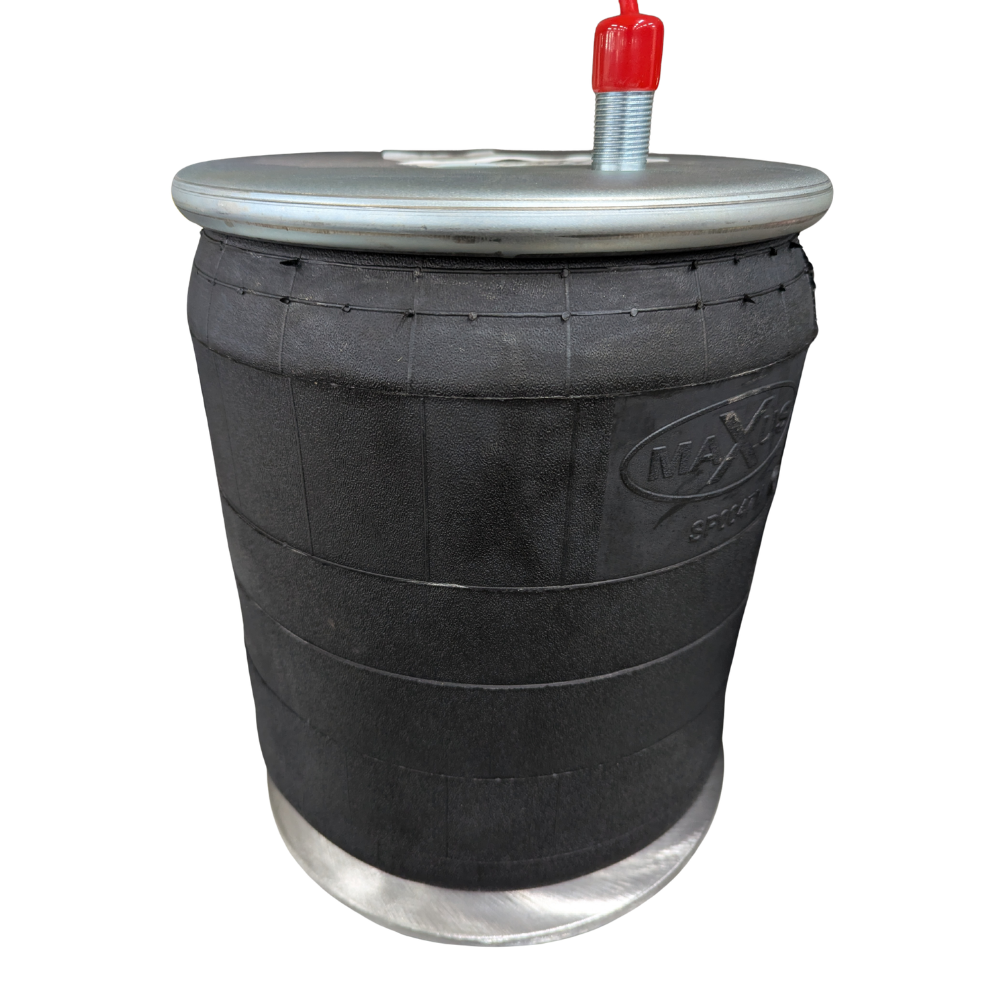

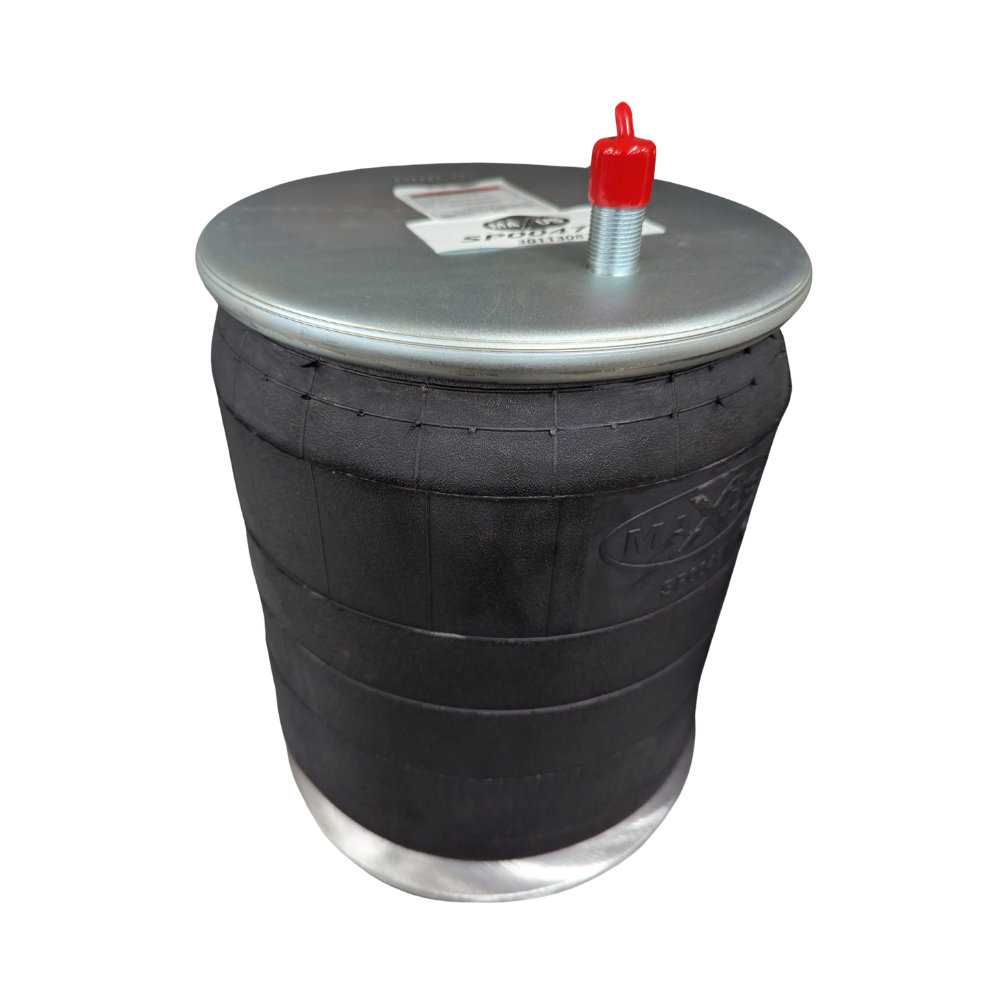

Maxus air spring supports the suspension load on Airmax underslung trailer suspension setups. It suits Hendrickson and Load Guard applications where the air spring height, outside diameter and piston style need to match the existing assembly.

Features

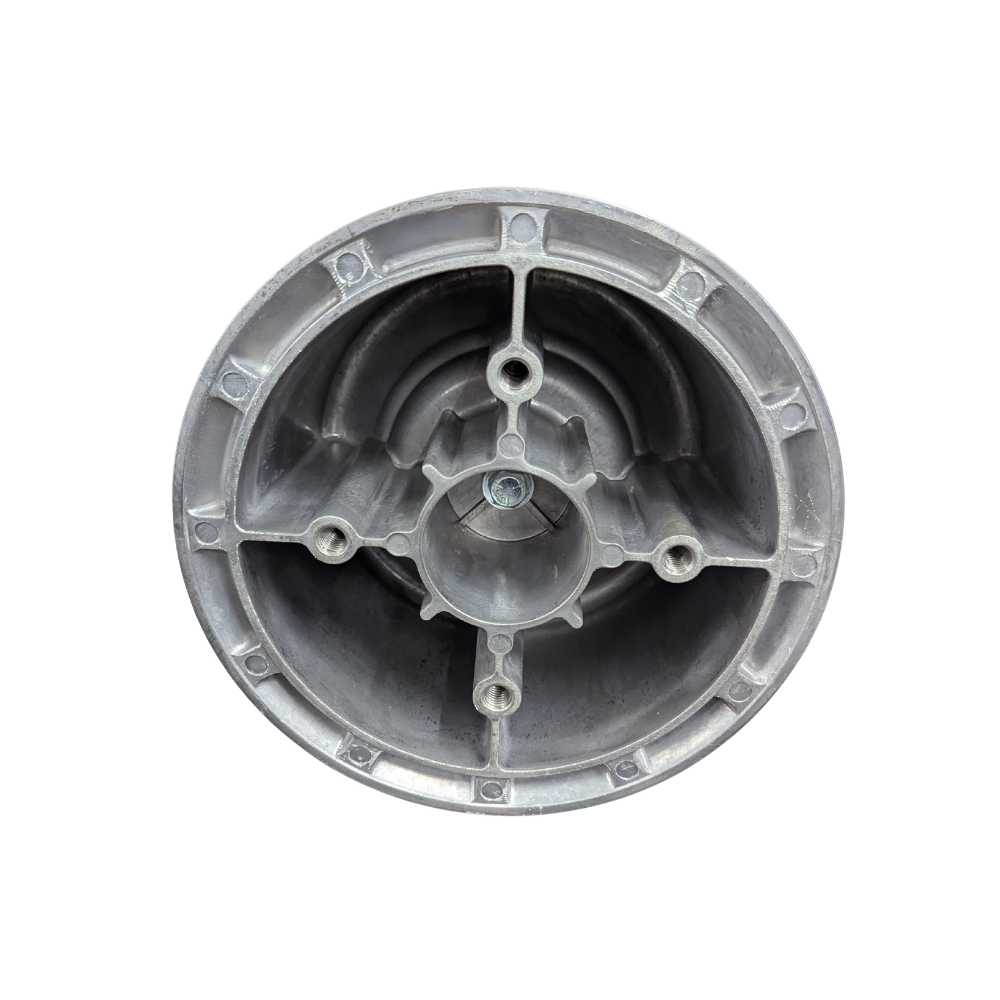

• Composite type air spring with aluminium piston.
• 437mm height for matching the existing suspension position.
• 265mm maximum outer diameter for fitment checking.
• Suits Hendrickson and Load Guard trailer air suspension applications.

Specifications and Materials

This Maxus air spring measures 437mm high with a 265mm maximum outer diameter and 35624.86cm3 volume. It uses an aluminium piston, so match the piston base, top plate, mounting pattern and ride height before ordering.

Part number: SP0047M.

Hendrickson HT underslung parts list

Compatibility and Fitment

Check the existing air spring number, suspension model, piston style and mounting hardware before fitting. Also confirm the trailer ride height because air springs can vary across similar underslung suspension layouts.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. C-20127, C20127, S-20127, S20127, W01-358-9580, W013589580, 1T15VLT-10.5, 1T15VLT105, 1R13-149, 1R13149, 1R13-118, 1R13118, 8434

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Inspect the top plate, piston, mounting studs, air line connection and surrounding suspension hardware before installation. If the old air spring shows cracking, rubbing, distortion or air loss, check for bracket wear or misalignment before fitting the replacement.

Trailer Applications

Workshops fit this Maxus air spring during Airmax underslung suspension repairs, trailer air spring replacement and Hendrickson or Load Guard suspension servicing. Fleets also replace air springs when ride height, air holding or bag condition fails inspection.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers supplies air suspension parts for heavy trailer servicing, fleet maintenance and workshop repairs. Match the air spring against the trailer setup before ordering so the suspension height and mounting arrangement stay correct. Browse more parts in our Suspension – Air – Trailer category
