Description

Overview

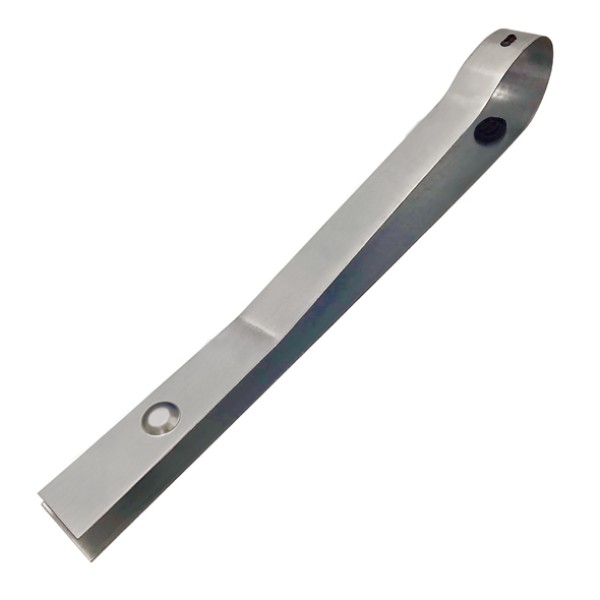

BPW AL2 leaf spring wrapper matches the narrow catch strap layout used on BPW AL2 AU and AO suspension. It follows the narrow Fig A profile around the trailing arm arrangement, so you can replace a worn, bent or damaged strap with the correct style for this suspension family. That matters because the wrapper needs to match the arm shape and measurement points already on the trailer.

Features

• Narrow wrapper profile for BPW AL2 AU and AO suspension
• Figure A catch strap layout for the listed trailing arm pattern
• Selection checks use BH 80, D 62, L1 500 and L2 380 or 310
• Built for trailers running the narrow AL2 wrapper style

Specifications and Materials

This narrow leaf spring wrapper uses the Fig A profile for BPW AL2 AU and AO suspension. Selection points for this layout are BH 80 and D 62, with L1 500 and L2 380 or 310 depending on the trailing arm arrangement already fitted. Part number: SP7163G. See the official BPW ALII air suspension spare parts catalogue for the Figure A identification layout used on this suspension family.

Compatibility and Fitment

Match the BPW AL2 leaf spring wrapper to the narrow Fig A layout before ordering. Check the trailing arm code first if it is still legible on the underside tip of the arm. If the code cannot be read, then measure build height BH 80, spring thickness D 62, L1 500 from spring eye bolt centre to axle centre, and L2 380 or 310 from axle centre to airbag centre. Also confirm the trailer runs BPW AL2 AU or AO suspension and that the existing wrapper is the narrow style.

Compliance and Safety

Inspect the wrapper, trailing arm area and related mounting points during suspension service, especially when the strap has bent, cracked or rubbed through. Replace damaged restraint hardware promptly, and then confirm the suspension moves freely through its normal travel after fitting.

Trailer Applications

Workshops fit this part during BPW AL2 AU and AO suspension repairs when the original narrow wrapper has worn out or taken damage. It also suits strip-down work where the trailing arm measurements must be checked and the restraint strap needs to go back in the same narrow pattern.
