Overview

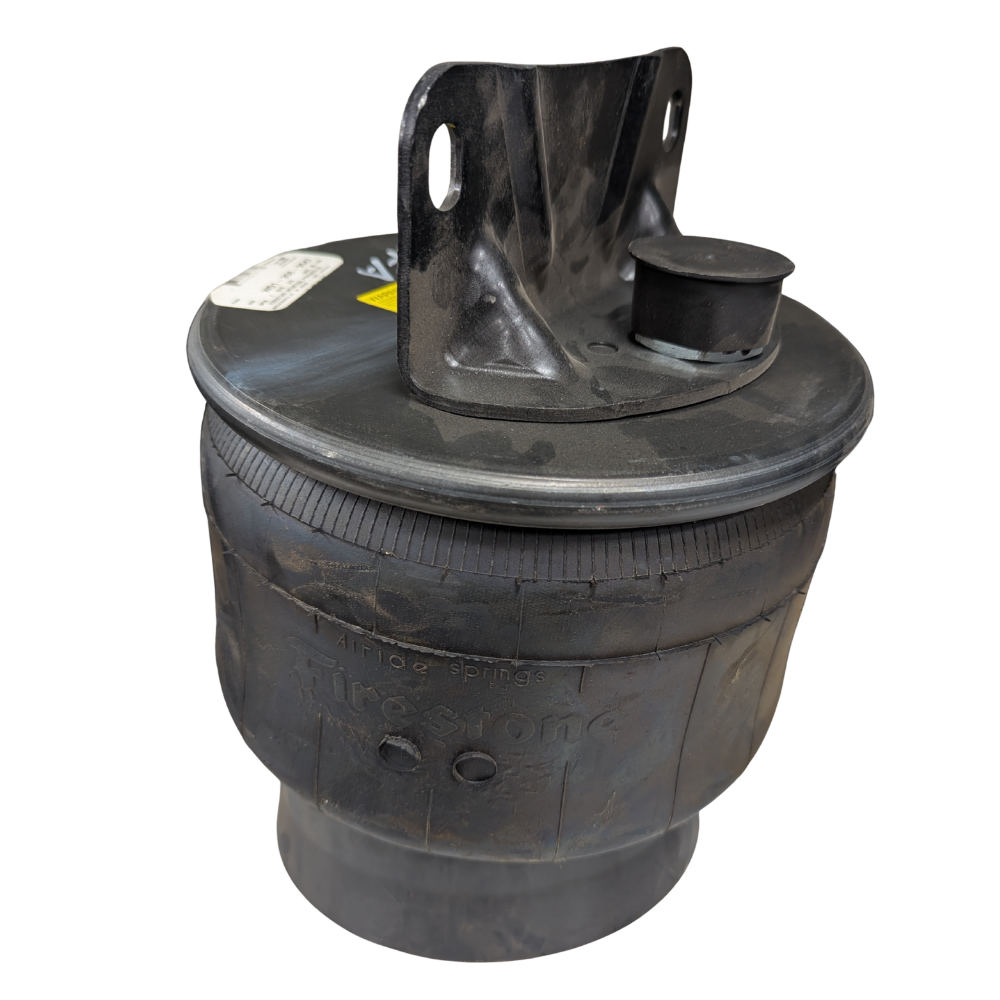

Kenworth Airglide 9in Air Spring Assembly SP0094FA is a replacement air spring for matching Kenworth Airglide 200 and Airglide 400 suspension systems using the C81-1004 / W01-358-9547 air spring family.

This is the 9in ride-height configuration. Because Airglide air springs with different ride heights and applications can look similar, confirm the original part number, suspension model, ride height, mounting arrangement and air inlet before ordering.

Features

• Replacement air spring assembly for matching Kenworth Airglide suspension
• Suits applicable Airglide 200 and Airglide 400 applications
• 9in ride-height configuration

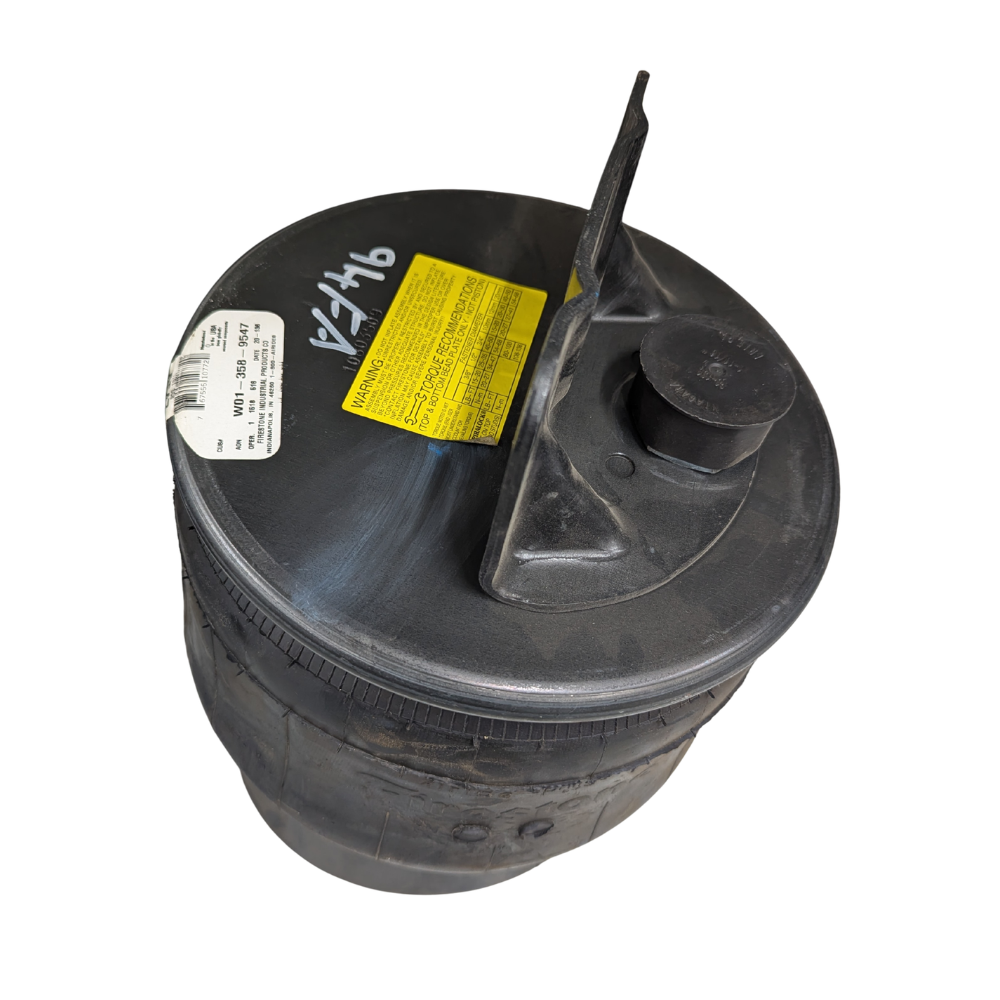

• Cross-references to Kenworth C81-1004 and Firestone W01-358-9547
• Complete air spring assembly for suspension service and replacement
• Designed for heavy-duty commercial vehicle suspension use

Specifications and Materials

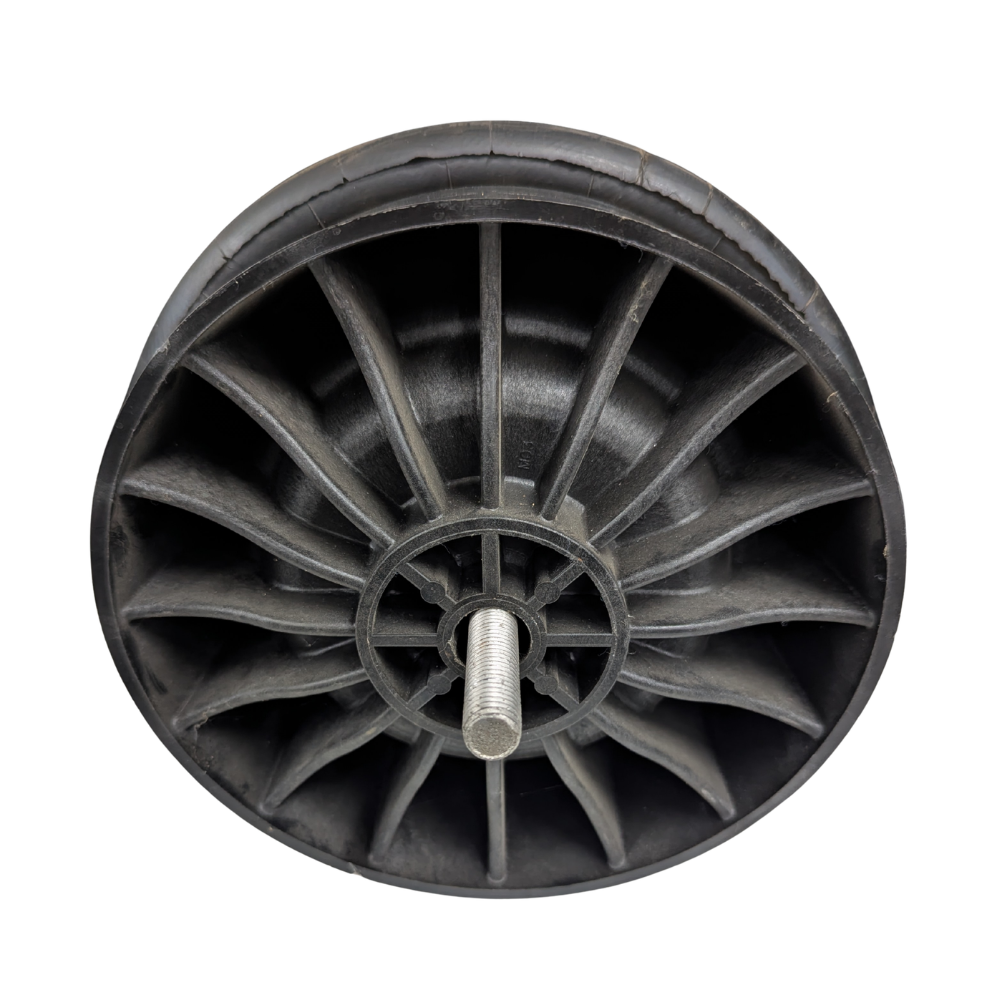

SP0094FA is a rolling-lobe style air spring assembly designed to support vehicle load while allowing controlled suspension movement through changes in road surface and load.

• Part number: SP0094FA
• Application: Kenworth Airglide 200 / Airglide 400
• Ride height: 9in
• Maximum operating pressure: 7 bar / 100 psi
• Operating temperature range: -40°C to +70°C

Compare the removed air spring with the replacement before installation, paying particular attention to the mounting points, air inlet, piston configuration and ride height.

For general installation and service information, refer to the Continental air spring technical information.

Compatibility and Fitment

SP0094FA suits applicable Kenworth Airglide suspension systems using the C81-1004 / W01-358-9547 air spring configuration.

Known applications include:

• Kenworth Airglide 200 – applicable vehicles from 5 May 2003 onward
• Kenworth Airglide 400
• Kenworth C81-1004 air spring applications
• 9in ride-height Airglide suspension configurations using the matching mounting arrangement

Do not select an air spring on appearance alone. Airglide suspension systems use multiple air spring configurations, including different ride heights. Confirm the original part markings and physical fitment before ordering.

Compliance and Safety

Air suspension systems can remain under pressure and may move suddenly when pressure is released. Support the vehicle correctly and fully exhaust the suspension air before removing the existing air spring.

Inspect the air line, mounting surfaces, brackets, fasteners and surrounding components for wear or damage before installation. After fitting, inflate the suspension gradually and check for air leaks, correct seating and adequate clearance throughout the normal suspension operating range.

Confirm the vehicle returns to the correct ride height before returning it to service.

Vehicle Applications

SP0094FA is designed for matching Kenworth Airglide 200 and Airglide 400 heavy vehicle suspension applications using the 9in ride-height C81-1004 air spring configuration.

Fitment should be confirmed from the existing air spring and suspension specification rather than vehicle model alone, particularly where suspension components have previously been replaced or modified.

Cross-reference and Suitability

SP0094FA cross-references to or is associated with the following equivalent air spring numbers:

Important: Cross-reference numbers assist with part identification but do not replace a physical fitment check. Confirm ride height, mounting arrangement and air connection against the existing air spring before ordering.
