Hendrickson Quick Align Retrofit Kit converts compatible Hendrickson non-Quik Align HT suspension models to a Quik Align pivot setup. It brings the key pivot hardware and alignment collars together for axle alignment service on matching trailer suspension assemblies.

Features

• Converts compatible Hendrickson non-Quik Align HT models to Quik Align
• Includes pivot bolt, nut and 2 flat washers
• Includes concentric and eccentric alignment collars
• Includes 2 retrofit washers for the conversion assembly

Specifications and Materials

Hendrickson Quick Align Retrofit Kit supports pivot connection conversion and alignment service on matching HT suspension models.

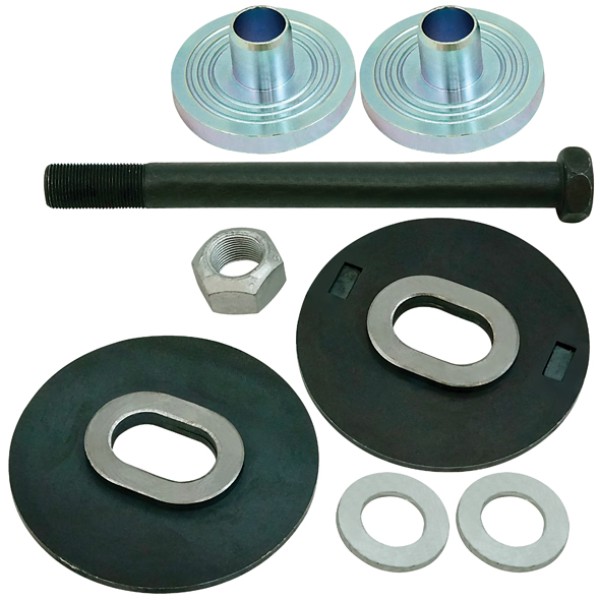

The kit includes a pivot bolt, nut, 2 flat washers, concentric alignment collar, eccentric alignment collar and 2 retrofit washers.

Check the suspension model, hanger condition and existing pivot connection layout before fitting.

Part number: SP0107.

See the manufacturer pivot connection guide

Compatibility and Fitment

Confirm the trailer has a compatible Hendrickson HT suspension and that the hanger repair or conversion setup matches the Quik Align pivot hardware before ordering this Hendrickson Quick Align Retrofit Kit.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. 98690-001, 98690001

Related Parts

Check the related service parts below against the trailer setup before ordering.

Compliance and Safety

Block the trailer, support raised equipment with stands and secure the axle before pivot connection work. Also discard used fasteners, inspect the hanger and wear washers, then tighten the pivot hardware after alignment at ride height.

Trailer Applications

Workshops fit this kit during Hendrickson HT trailer suspension repairs where non-Quik Align hardware needs conversion to a Quik Align pivot arrangement. It also suits service work where the listed replacement numbers and included hardware match the suspension repair plan.
