Description

Overview

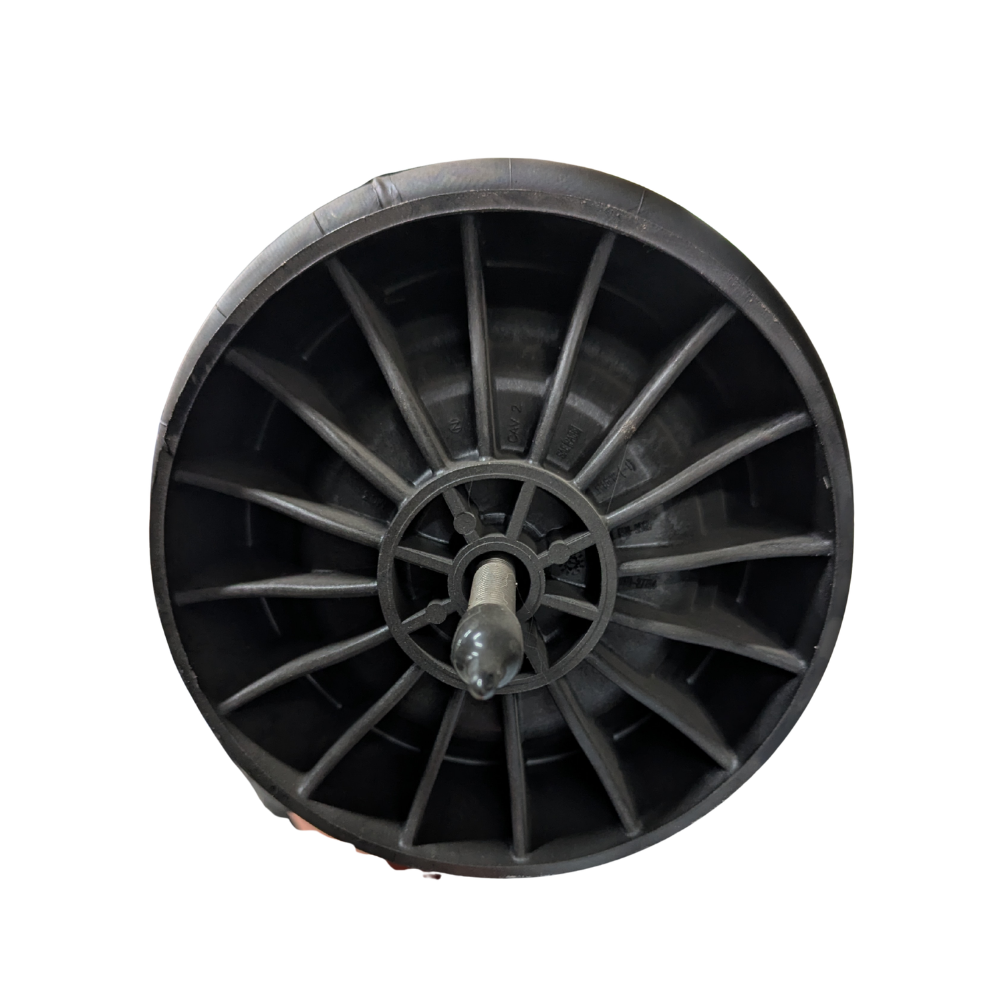

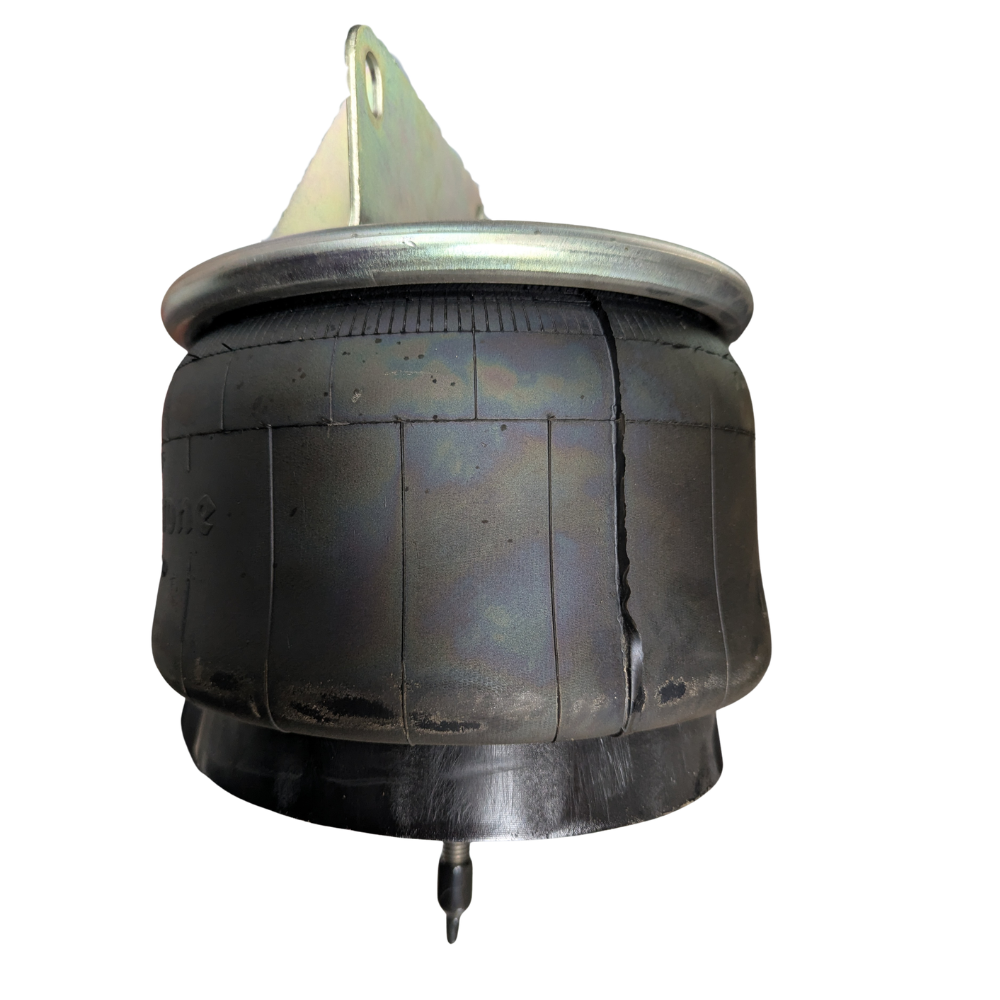

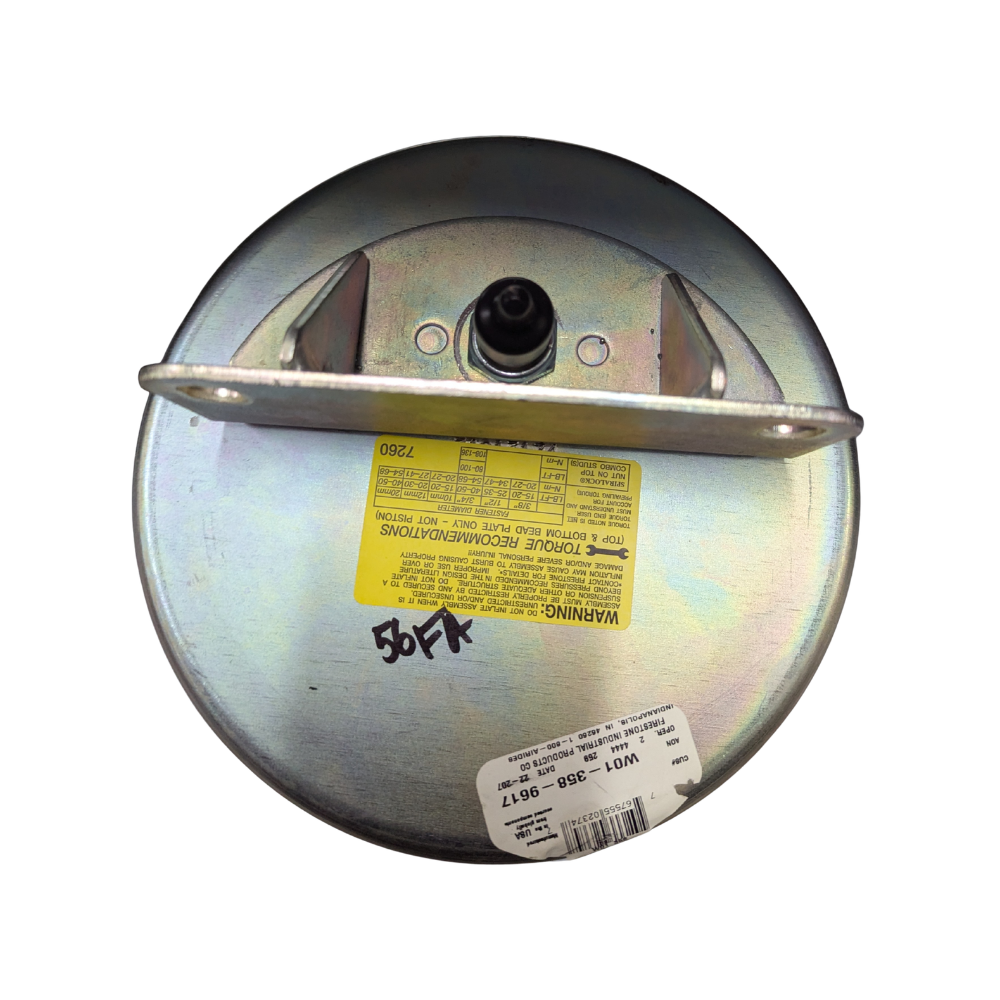

Firestone Air Spring Airglide 200 supports Kenworth Air Glide 200 suspensions up to 1998 where a small air fitting is used. It helps restore consistent ride height when an existing air spring leaks, cracks, or loses flexibility. Because air suspension stability depends on controlled spring rate, replacing a tired unit can reduce vibration and uneven load transfer.

Features

This Firestone Air Spring Airglide 200 assembly is aimed at predictable suspension response in everyday work. It also suits Air Glide 200 layouts where the correct fitting size and mounting style matter.

• Helps maintain ride height and load support under changing conditions
• Supports smoother handling when the original air spring has softened
• Designed for Air Glide 200 fitment with a small air fitting
• Suitable for scheduled replacement during suspension servicing

Specifications and Materials

Match the suspension family and air fitting size before ordering because Air Glide variants can differ by year. Confirm operating limits as well so the system runs within specification.

• Operating pressure: Max. 7 bar / 100psi
• Operating temperature range: -40°C to +70°C
• Application: Kenworth Air Glide 200 up to 1998

Part number: SP0056FA.
Refer to the Firestone product cross-reference search to confirm interchange details for Airide parts

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. W01-358-9617, W013589617, 1385039, 1698433, 15583F, 1T15LA-1-9617, 1T15LA19617, 57Y2207, 790N, K303-18, K30318, 1R11-219, 1R11219, 566-22-3-021, 566223021

Compliance and Safety

Air suspension work involves stored energy, so depressurise the air system before removal and support the axle correctly. Check air line routing and fittings on refit, then perform a leak test after installation. Verify fastener torque and confirm the suspension returns to normal ride height without binding. Replace worn height control hardware if it causes over extension or constant rubbing.

Trailer Applications

Although this part targets Kenworth Air Glide 200 truck suspensions, the same service approach often applies across heavy vehicle combinations. For example, operators commonly replace air springs during periodic inspections or after a roadside failure. If you are matching a trailer or dolly configuration, confirm the suspension family and mounting style before ordering.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
