Description

Overview

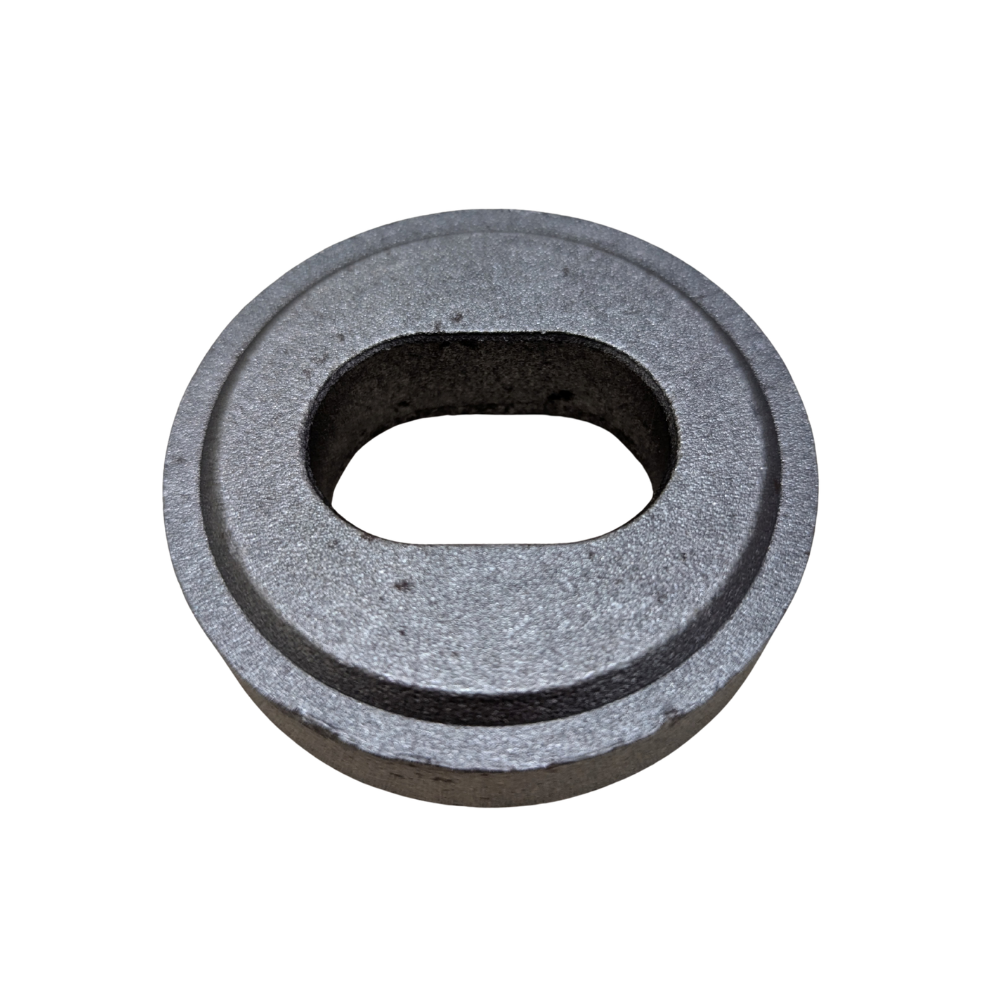

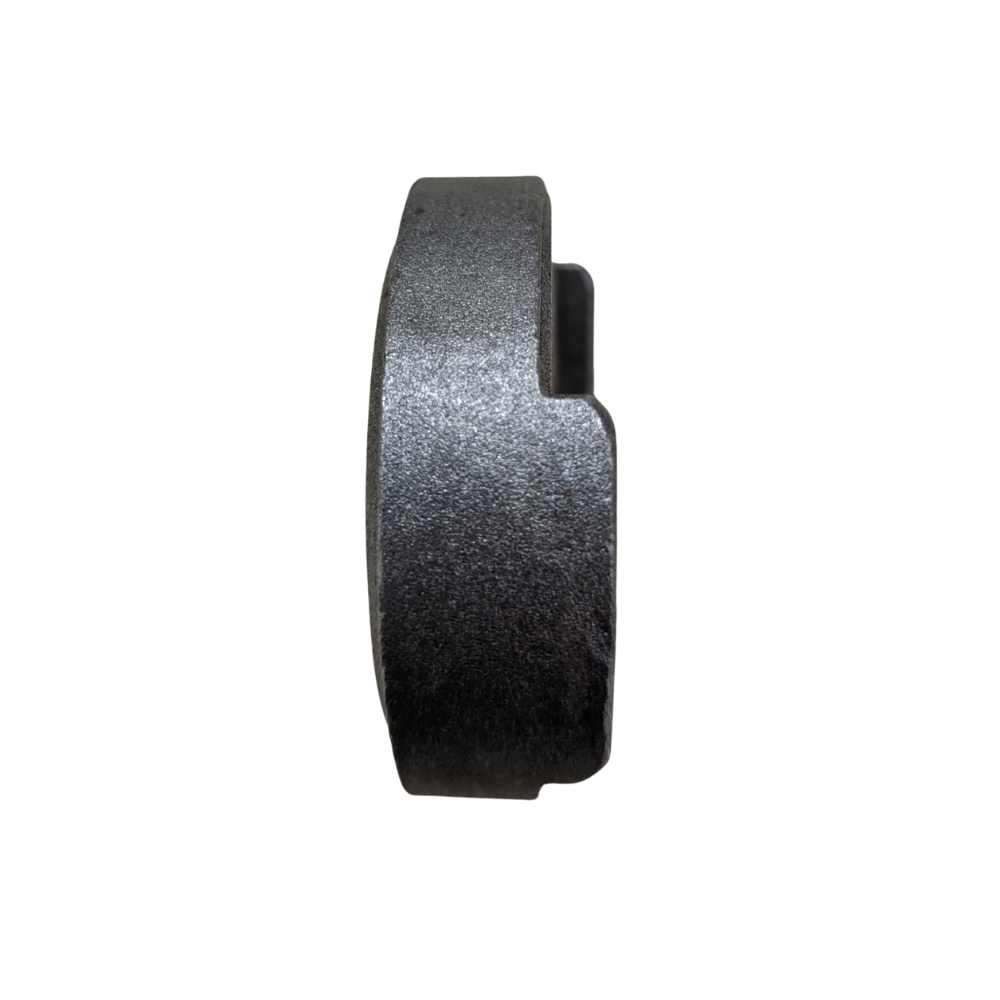

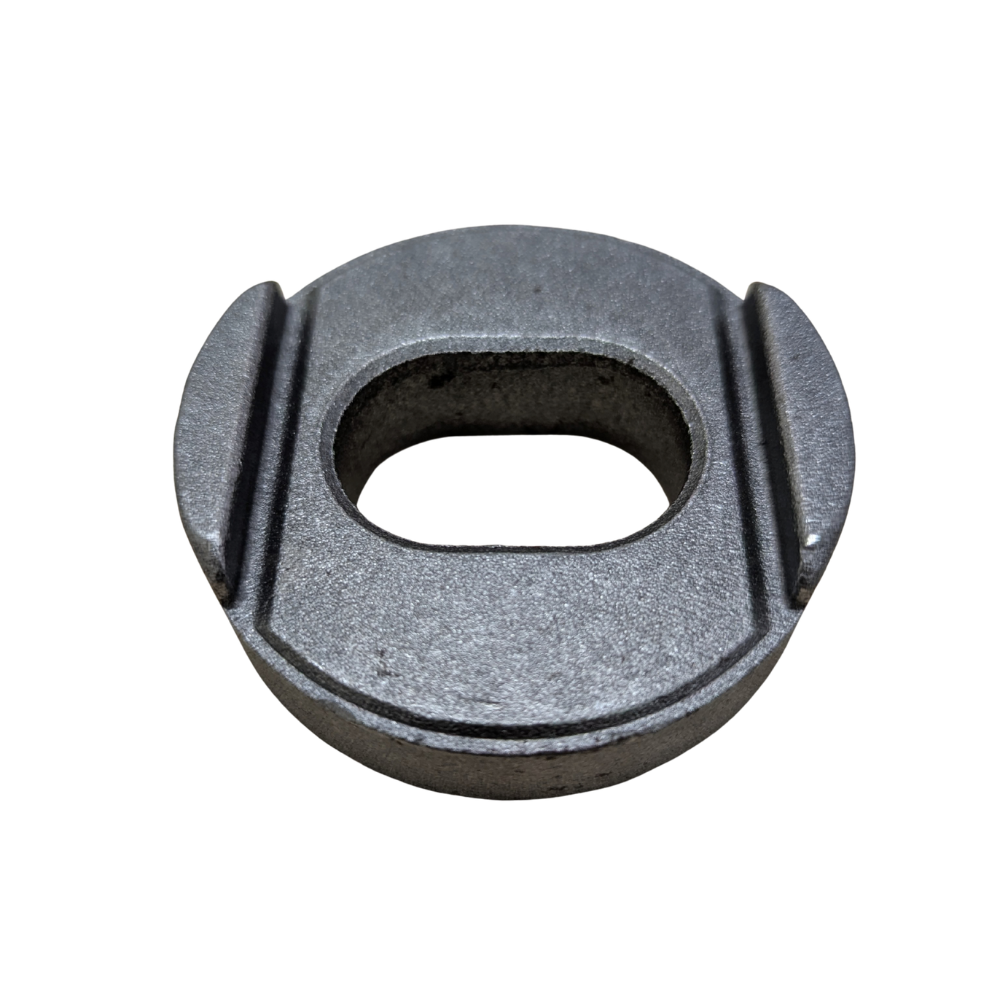

Alignable Hanger Boss M24 BPW locates the spring eye bolt in BPW alignable hanger setups and restores the bearing surface inside the hanger. It suits M24 spring eye bolt applications in the BPW suspension family and gives workshops the correct boss size for alignable hanger repairs. When the original boss is worn, ovalled or damaged, this part helps bring the hanger assembly back to proper service condition.

Features

• Suits BPW alignable hanger setups with M24 spring eye bolts
• Steel hanger boss for suspension hanger repair work
• 24.3mm and 36.6mm internal diameters with 67.6mm outer diameter
• 21mm height for fitment matching before installation

Specifications and Materials

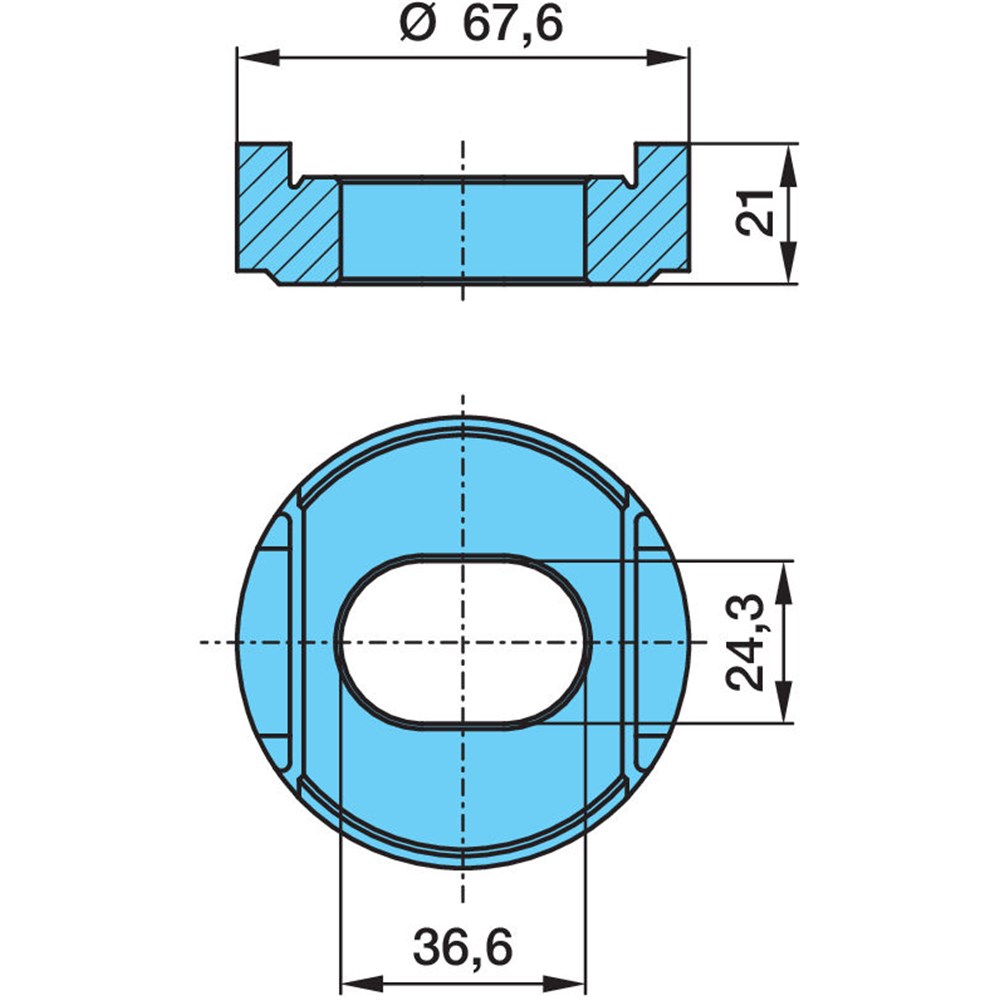

This steel hanger boss matches BPW alignable hanger applications using M24 spring eye bolts. Key dimensions are 24.3mm inner diameter, 36.6mm secondary inner diameter, 67.6mm outer diameter and 21mm height, so buyers can compare the installed boss before ordering. Part number: SP7216G.

For BPW suspension service guidance, see the BPW genuine repair kit catalogue

Compatibility and Fitment

Check the hanger style and spring eye bolt size before ordering, because this part suits alignable hanger layouts with M24 spring eye bolts. Match the boss dimensions against the worn part already in the hanger, and also confirm the suspension is running the BPW alignable arrangement rather than the non-alignable version. Two bosses are required to repair one hanger, so count the hanger position before starting the job.

These cross-references show where this part replaces the part numbers and applications listed. Some installations may need minor changes. BPW0311303100, 03.113.03.10.0, 0311303100

Compliance and Safety

Inspect the hanger, wear surfaces, spring eye bolt and bush before fitting a replacement boss. Replace distorted or badly worn hardware as a set where needed, because boss wear often shows up alongside bush and bolt wear in the same joint. Keep the hanger faces clean during assembly and confirm the boss seats correctly before the suspension returns to service.

Trailer Applications

Trailer workshops fit this boss during BPW suspension repairs where the alignable hanger connection has worn through the boss surface or lost its correct fit around the spring eye bolt. It suits service work on BPW suspension using M24 spring eye bolts, especially when the hanger assembly is being rebuilt rather than patched one piece at a time. This makes it a practical repair part for keeping the hanger connection true inside the bracket.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:
