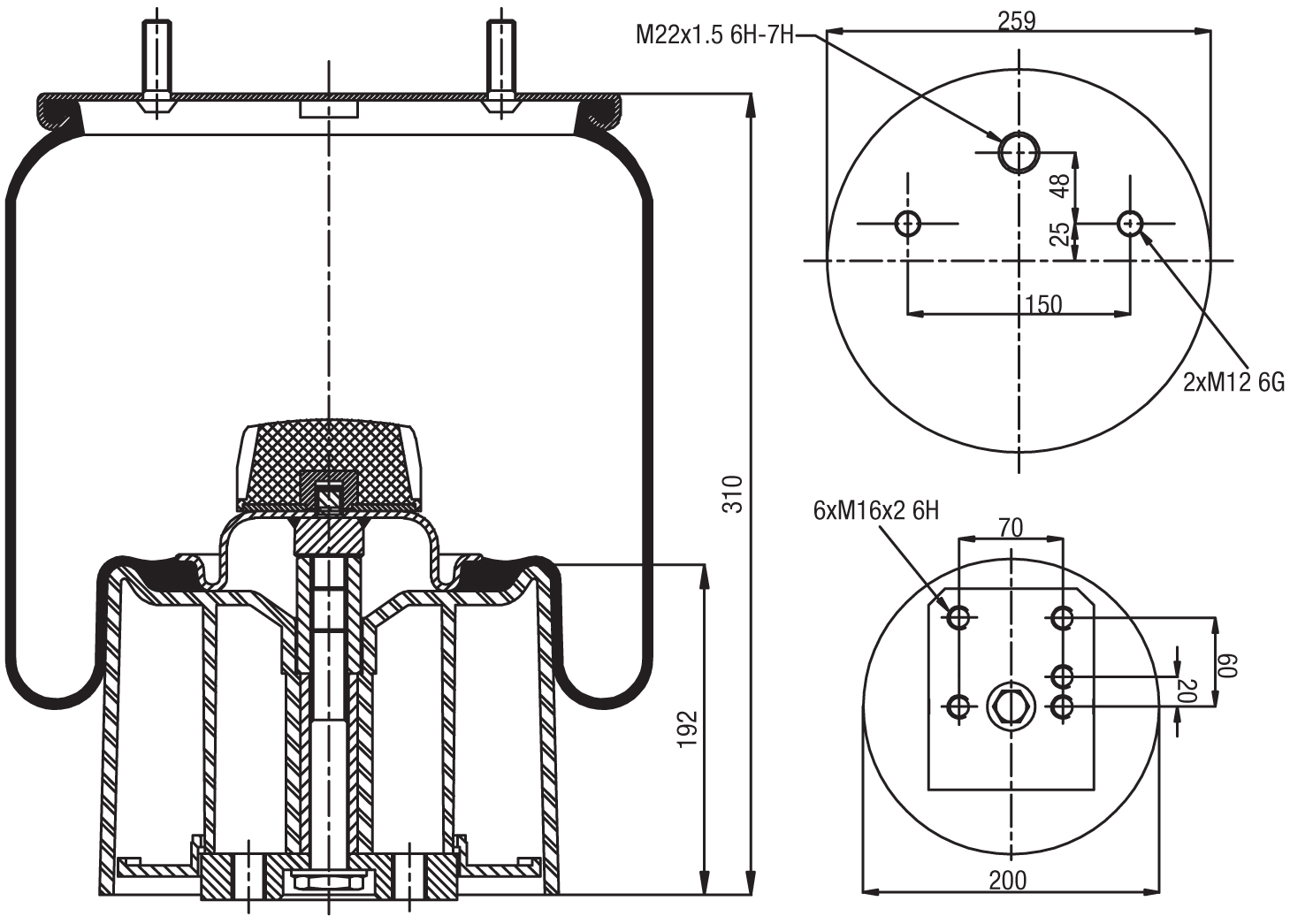

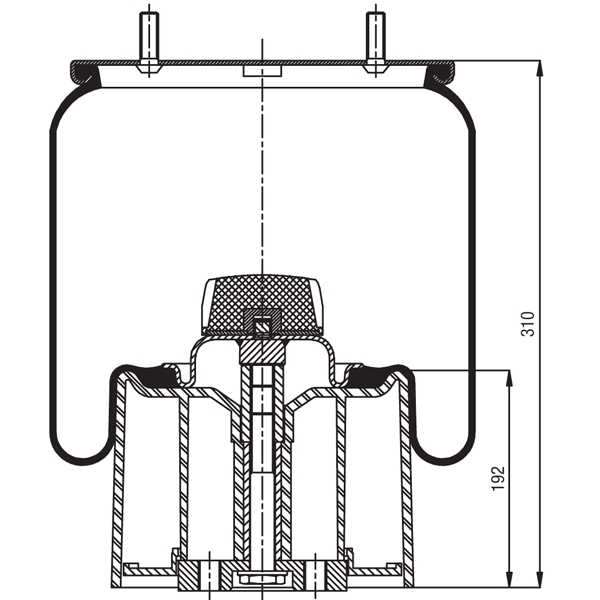

BPW Air Spring Assembly D30 is a complete replacement air spring assembly for BPW D30 trailer suspension applications. Replacing a leaking or fatigued air bag helps restore stable ride height under load and can reduce vibration transfer, chassis roll, and uneven tyre wear caused by low or inconsistent suspension pressure.

Features

• Complete air spring assembly for BPW D30 suspension service replacement
• Helps maintain stable ride height and load support under changing payloads
• Supports reduced vibration transfer when replacing cracked or leaking bellows
• Wide operating temperature range for year-round trailer use

Specifications and Materials

• Max operating pressure: 7 bar (100 psi)
• Operating temperature range: -40°C to +70°C

Part number: SP0020GA.

Use the Firestone air spring design guide as a general technical reference.

Compatibility and Fitment

This assembly is intended for BPW D30 trailer suspension configurations. Air spring setups can vary by ride height, mounting style, and piston type, so confirm your current air spring style and mounting arrangement before ordering.

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. 941 MB P30, 941MBP30, 941 MB P02, 941MBP02, 40030 N P02, 40030NP02, 132222, 3941-01 CPP, 394101CPP, RML7052CP, 206356, 1TC300-36, 1TC30036, F D11B33, FD11B33, 00935A-AP, 00935AAP, W01-M58-8618, W01M588618, W01-M58-8668, W01M588668, W01 M58 8668, 1T17D-8.3, 1T17D83, 1T17J-10.3, 1T17J103, 293.2.512, 2932512, C293, 1R11-743, 566-22-3-500, 566223500, 1 DK 21-2, 1DK212, 5941 A P04, 5941AP04, V 1 DK 21 Y 1, V1DK21Y1, BPW 30, BPW30, 05.429.43.20.0, 0542943200, 05 429 43 20 0, 015 502, 015502, 017 109, 017109, 550025977, 345859, 2338887, 05.429.43.57.0, 0542943570

Compliance and Safety

Air suspension components can move suddenly if the system is pressurised. Depressurise the suspension system, support the axle safely, and follow the axle or suspension OEM procedure during removal and refit. After installation, re-pressurise slowly, leak-test all air line fittings, and confirm ride height is set to the trailer specification.

Trailer Applications

BPW Air Spring Assembly D30 commonly suits BPW D30-equipped trailers used in general freight and on-highway work. It is typically fitted during suspension servicing when a leaking air bag causes ride height drop, increased compressor cycling, or uneven ride behaviour.

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers focuses on trailer suspension parts where fitment matters. If you are unsure, confirm your BPW suspension model and the existing air spring mounting style before ordering, and bundle related air fittings or suspension hardware to reduce repeat labour.
