Description

Overview

Air Spring Assembly BPW D30 Trailer performance matters because it stabilises ride height and helps isolate road shock through the suspension. As a result, this complete air spring assembly suits BPW D30 trailer air suspension positions where a direct replacement restores load support and can help reduce uneven tyre wear.

Features

• Complete air spring assembly for BPW D30 trailer suspensions
• Rated for operating pressure up to 7 bar / 100psi
• Wide operating temperature range from -40°C to +70°C
• Designed to help maintain consistent ride height under varying payloads

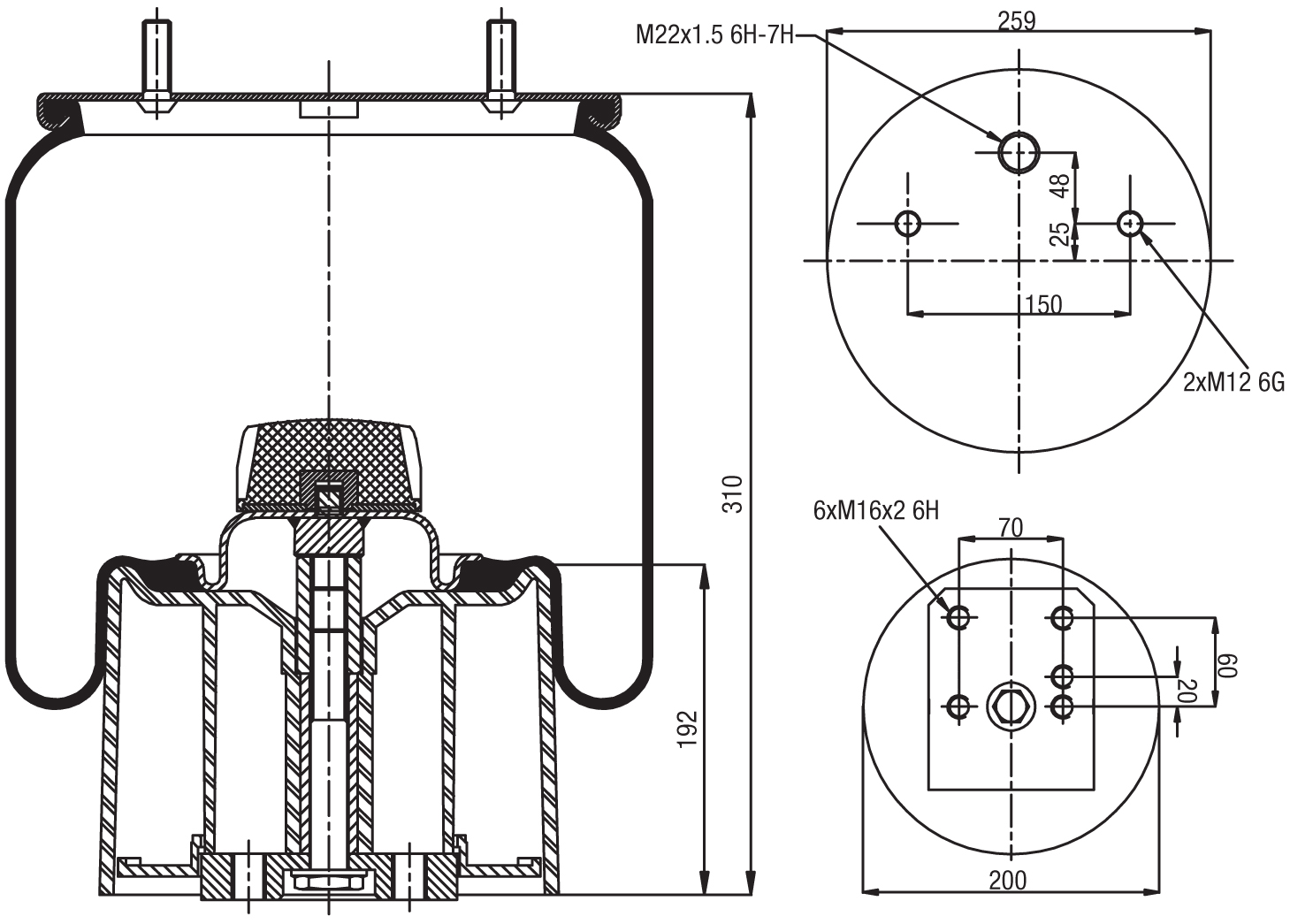

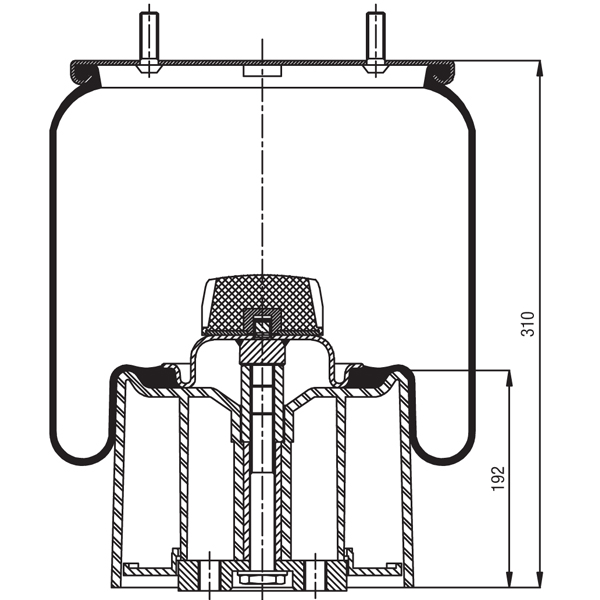

Specifications and Materials

Part number: SP0020A.
This assembly uses a reinforced rubber bellows with metal end fittings typical of heavy trailer air springs, however specifications vary by OE build. Replacing the full assembly helps avoid reusing a fatigued bellows, so you can restore the suspension with a like-for-like unit.
Refer to the manufacturer part number guide for air springs to understand bellows versus assembly numbering and selection

Compatibility and Fitment

This cross-reference listing means this part is a suitable replacement for the part numbers and applications shown. Some changes in installation may be required. CONTITECH 941 MB P30, 941MBP30, FIRESTONE 1T17D-8.3, 1T17D83, W01 M58 8668, W01M588668, BPW 05 429 43 20 0, 0542943200, P10.941.CP, P10941CP, 05.429.42.57.0, 0542942570, 566-22-3-500, 566223500

Compliance and Safety

Before you start, safely support the chassis and axle, then isolate the air supply. If you find damaged air lines or fittings, replace them because leaks can mimic an air spring failure. After fitting, confirm ride height and clearances, then recheck fasteners during the first service interval.

Trailer Applications

This Air Spring Assembly BPW D30 Trailer commonly fits heavy trailer air suspension systems such as:

• semi-trailers with BPW air suspension
• skeletal and container trailers using BPW D30 positions
• curtain siders and flat tops with air suspension axles
• general freight trailers where stable ride height is critical

Cross-reference and Suitability

This part cross-references to or suits the following equivalent part numbers and compatible alternatives:

Why Choose ICS Trailers

ICS Trailers helps you match suspension components correctly by checking application details before you buy. This reduces downtime and helps you avoid fitting the wrong Air Spring Assembly BPW D30 Trailer into a critical position on your trailer. If you want to compare related items, you can also check other Air Spring Assembly BPW D30 Trailer options across your suspension setup.
Browse Suspension parts at ICS Trailers to see related air suspension components.
